LEGRANDBALIZED PILOTS660953 LEGRAND LIPSO PIL. FRONT. BLUE 230V IP44

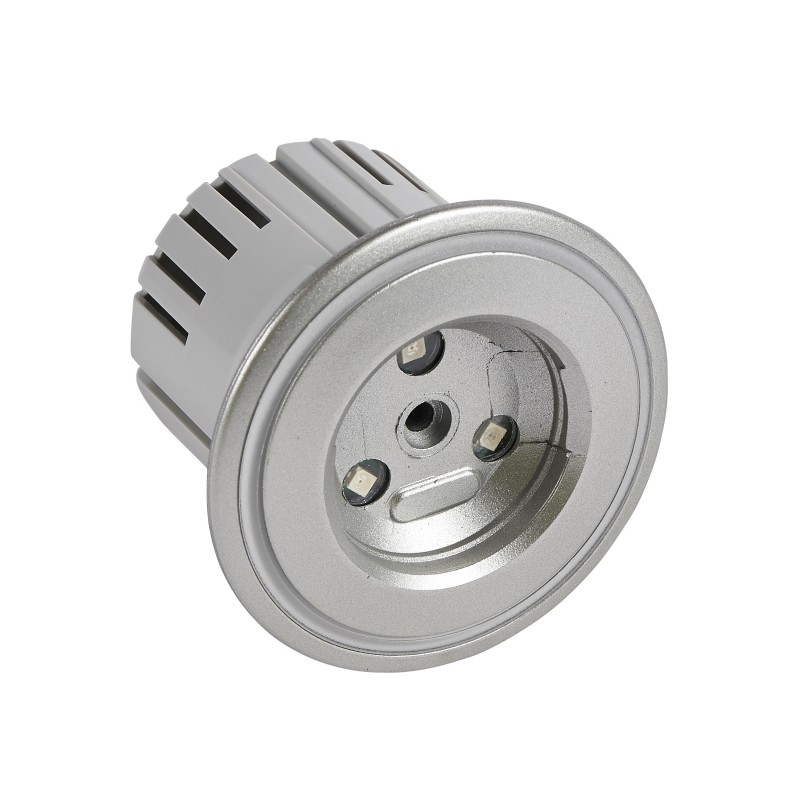

LEGRAND 660953 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

660953 LEGRAND LIPSO PIL. FRONT. BLUE 230V IP44

Code: 660953

Manufacturer: LEGRAND

Description:

LIPSO PIL. FRONT. BLUE 230V IP44
LIPSO PIL.FRONT.BLUE 230V IP44
Pilot courtesy LIPSO -230 V - IP44 - front - blue
LIPSO courtesy light - 230V - IP44 - front - blue

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > BALIZED PILOTS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 72,67 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Pilot courtesy LIPSO - Only with mains voltage 230V~ - With 7 leds in blue - IP44 - IK07 - Light signaling front

General characteristics

Drivers of courtesy LIPSO - Supply: 230v - Class II - Terminals screw-for 2 cables of 1,5mm2 - mounting box for 1 screw necesiadad leveling - Are installed in the flush box itself, universal enclosure or partition Plasterboard type - Finish zamak, aluminum color

ETIM for 660953 Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value2.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueBuilt-in
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameBuilt-in height/depth (EF023518)
Feature value41 mm
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value0.6 W
Feature nameColour temperature (EF009346)
Feature value5500 K
Feature nameRecognition distance (EF008732)
Feature value15 m
Feature nameNumber of lighting heads (EF004258)
Feature value1
Feature nameNominal current (EF009345)
Feature value2.4 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueNone
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameHeight/depth (EF001456)
Feature value48 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value58 mm
Feature nameBuilt-in width (EF000846)
Feature value50 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant current
Feature nameBuilt-in length (EF004265)
Feature value50 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameLuminous flux in standby mode (EF011954)
Feature value0 lm
Feature nameHousing material (EF001596)
Feature valueAluminium
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameHousing colour (EF000136)
Feature valueAluminium
Feature nameOuter diameter (EF000015)
Feature value58 mm
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value207 V
Feature namePower supply system (EF000233)
Feature valueCentral (central battery)
Feature nameBattery technology (EF004351)
Feature valueNiMH
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameLength (EF001438)
Feature value58 mm
Feature nameBuilt-in diameter (EF000943)
Feature value50 mm
Feature nameSuitable for continuous circuit (EF017056)
Feature valueYes
