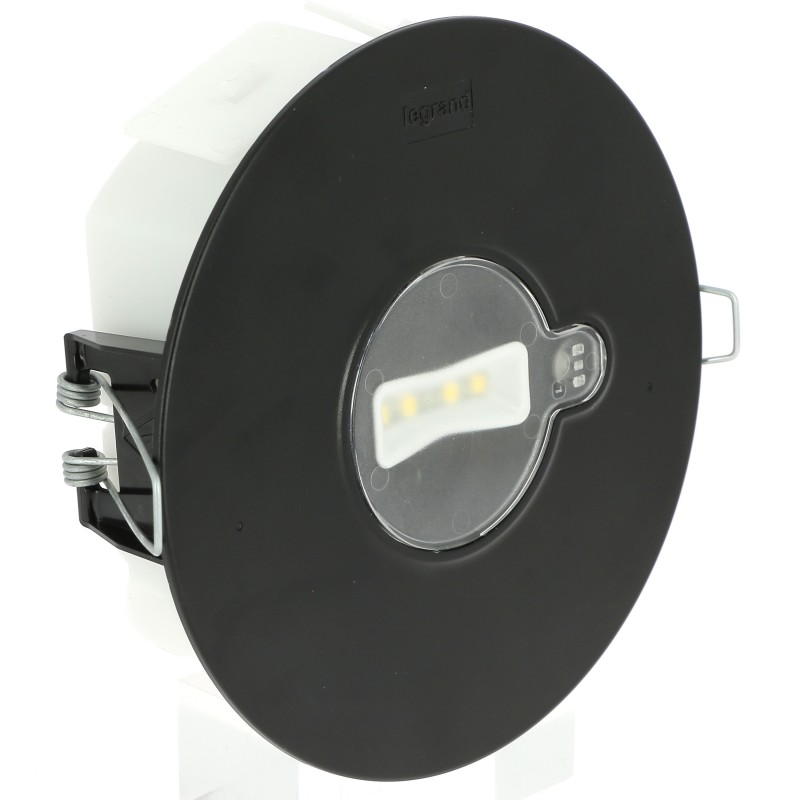

LEGRAND 660142BK - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

660142BK LEGRAND U22REDON 100LM 1 H P-NP AUT BK

Code: 660142BK

Manufacturer: LEGRAND

Description:

U22REDON 100LM 1 H P-NP AUT BK
URA SPOT PRO emergency luminaire black color UTOTEST - 100 lumens - 1h - Permanent/Non-permanent
URA SPOT PRO black emergency luminaire UTOTEST - 100lm - 1h - P/NP

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 110,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AUTOTEST LED emergency luminaire - Permanent/Non-permanent (P/NP) - Black color - 100 lumens - Autonomy 1 hour - LED - Ni-Mh Battery - The luminaire performs a weekly automatic test that checks the status of the lamp and a quarterly automatic test that checks the battery status. - Communicate its status through the LEDs (green and yellow) for signaling.
Type of mountingInstallation
functionEmergency Lighting/Pathway Identification
Suitable for labelling typeOther
Type of indicatorOne side
With pictogramNo
Suitable for standby switchingYes
Suitable for continuous circuitYes
With remote switch connectionNo
With remote controlNo
Emergency function monitoring systemAutomatic self-test
Emergency Power Supply SystemPeripheral unit (single battery)
Battery qualityNimh
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources4
Lamp holdernone
Number of light heads1
Housing materialPlastic
RAL number of the case9005
Housing colorBlack
Cover materialPlastic, opal
Type of voltageAC/DC
Nominal Voltage230-230 V
Nominal current43-43 mA
Type of control equipmentCurrent-controlled LED service apparatus
Light distributorLens/Optics/Diffuser Panel
Constant luminous flux regulationYes
Protection Class (IP)IP42
Impact resistanceIK07
Protection class according to IEC 61140Ii
Luminaire with limited surface temperature "mark D" according to EN 60598-2-24No
Luminous flux in emergency mode100 lm
Nominal luminous flux according to IEC 62722-2-1100-100 lm
Max. system power1.6 W
Luminous flux in standby mode100 lm
Color Temperature5000-5700 K
Nominal Operating Time1-1 hrs
Height/Depth44.5 mm
Outer diameter125 mm
Mounting height/depth42 mm
Mounting Diameter110 mm
Type of wiringWith through-wiring
Number of poles5
Conductor cross-section1.5 mm²
Connection MethodThreaded connection
Connectable conductor cross-section1.5-2.5 mm²
Operating Temperature-5-35 °C
Storage temperature-10-50 °C
frequency50-60 Hz
Estimated bulb life100000 h
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Halogen-freeYes
Connection Cable TypeFlexible or rigid
With signal lampNo
Maximum cable entry diameter12 mm
Cable HolderNot applicable
Cable tie compatible withNot applicable
Control ModeWired
Contains battery and/or accumulatorYes
AddressableNo
IEC DesignationAAA
Battery or accumulator (Pack1)Accumulator (rechargeable)
Item Composition (Pack1)Nickel metal hydride
Pack Number11
Number of individual items (Pack1)3
Weight of an individual item (Pack1)13 g
Location of Pack1The product includes a battery
Regulatory Type (Pack1)I : Industrial (not portable)
Connected ObjectNo

ETIM for 660142BK Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value1.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueBuilt-in
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameRAL-number housing (EF012502)
Feature value9005
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameBuilt-in height/depth (EF023518)
Feature value42 mm
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value1.6 W
Feature nameColour temperature (EF009346)
Feature value5000 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value100 lm
Feature nameSuitable for number of light sources (EF006436)
Feature value4
Feature nameNumber of lighting heads (EF004258)
Feature value1
Feature nameNominal current (EF009345)
Feature value43 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueAutomatic self test
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value44.5 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameType of control gear (EF000381)
Feature valueLED driver constant current
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP42
Feature nameLuminous flux in standby mode (EF011954)
Feature value100 lm
Feature nameSuitable for labelling type (EF001277)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameType of indicator (EF001278)
Feature valueSingle-sided
Feature nameNumber of poles (EF001391)
Feature value5
Feature nameHousing colour (EF000136)
Feature valueBlack
Feature nameOuter diameter (EF000015)
Feature value125 mm
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting/signage
Feature nameType of wiring (EF011868)
Feature valueThrough wiring included
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueNiMH
Feature nameConstant light output (CLO) (EF009482)
Feature valueYes
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameSuitable for standby switching (EF017055)
Feature valueYes
Feature nameBuilt-in diameter (EF000943)
Feature value110 mm
Feature nameSuitable for continuous circuit (EF017056)
Feature valueYes
