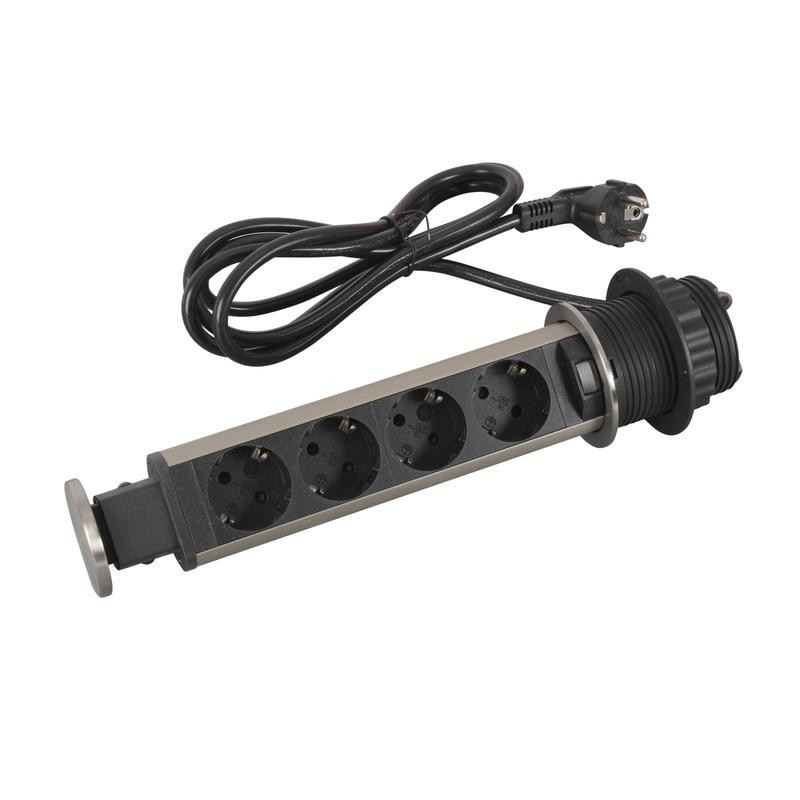

LEGRAND 654976 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

654976 LEGRAND IN-TORRE 60 4TOM CABLE 2MT

Code: 654976

Manufacturer: LEGRAND

Description:

IN-TORRE 60 4TOM CABLE 2MT
IN-TOWER 60 4SCH CABLE 2MT
Incara Tower 60mm. Recessed installation in furniture. 4 2P+T sockets. 2m cable. Metallic finish
Incara Tower 60mm for recessed. 4x2P+T. 2m cable. Metallic

Categories:

  • Domestic switching devices > Desk connecting unit
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 35,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Incara Tower 60 equipped with 4 sockets 2P+T 16A 250V~ 3680W 50/60Hz. 2m cable. Manual opening. IK07 IP20. Material aluminum, PA and stainless steel ring and end cap. Black and metal color.

description
Incara Tower 60 is a discreet retractable electrical and data connection solution for embedding meeting tables with a 60mm small diameter drill. Table thickness of 6-50mm. Compliance with IEC 60881-1 for 2P+T sockets and IEC 62368-1 for USB chargers.

specifications

ModelInstallation
CollapsibleYes
ExtensibleNo
FormRound
MaterialPlastic
ColourBlack
Gloss GradeMate
Longitude367 mm
Installation Depth379 mm
Diameter84.4 mm
Number of sockets with EEC 7/3 protective contact (type F)4
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of French Standard Sockets (Type E)0
Number of Italian Standard Power Sockets Type P40 L/F0
With on/off switchNo
Number of HDMI Ports0
Number of 15-pin female D-Sub connectors0
Number of USB connections0
Number of audio connections0
Number of CAT 5E connections0
Number of CAT Connections 60
Number of CAT 6A connections0
Number of spaces reserved for modules0
Number of circuit breakers0
Surge protectionNo
EMC FilterNo
With built-in USB power supplyNo
Nominal Voltage250 V
Protection Class (IP)IP20
Impact resistanceIK06
Antibacterial treatmentNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal current16-16 A
Standby consumption0.08 mA
Display of markings on the connection terminalsNo
Halogen-freeYes
PrewiredNo
Connection MethodNot applicable
Label Space/Print AreaNo

ETIM for 654976 Domestic wiring accessories and controls (EC002759)

Feature nameNumber of socket outlets Swiss standard type 25 (EF011979)
Feature value0
Feature nameNumber of socket outlets Swiss standard type 23 (EF011978)
Feature value0
Feature nameNumber of CAT 5E connections (EF008504)
Feature value0
Feature nameNumber of socket outlets Swiss standard type 15 (EF011977)
Feature value0
Feature nameNumber of CAT 6 connections (EF008505)
Feature value0
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of socket outlets Swiss standard type 13 (EF011975)
Feature value0
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWith built-in USB power supply (EF009258)
Feature valueNo
Feature nameNumber of audio connections (EF008501)
Feature value0
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of D-Sub connections 15-pole (EF009450)
Feature value0
Feature nameNumber of socket outlets Italian standard type P40 L/F (EF017641)
Feature value0
Feature nameNumber of CAT 6A connections (EF014598)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/5 (type E) (EF014597)
Feature value0
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value4
Feature nameBuilt-in depth (EF000218)
Feature value379 mm
Feature nameShape (EF000051)
Feature valueRound
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameModel (EF000010)
Feature valueBuilt-in
Feature nameFolding (EF006476)
Feature valueYes
Feature nameDiameter (EF000551)
Feature value84.4 mm
Feature nameNumber of HDMI connections (EF007620)
Feature value0
Feature nameNumber of empty module positions (EF012038)
Feature value0
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK06
Feature nameMains filter (EF000947)
Feature valueNo
Feature nameDegree of gloss (EF024897)
Feature valueMatt
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameColour (EF000007)
Feature valueBlack
Feature nameLength (EF001438)
Feature value367 mm
Feature nameExtendable (EF000329)
Feature valueNo
