LEGRANDENCLOSURES646751 LEGRAND LKO-CABINET 24U 800X800

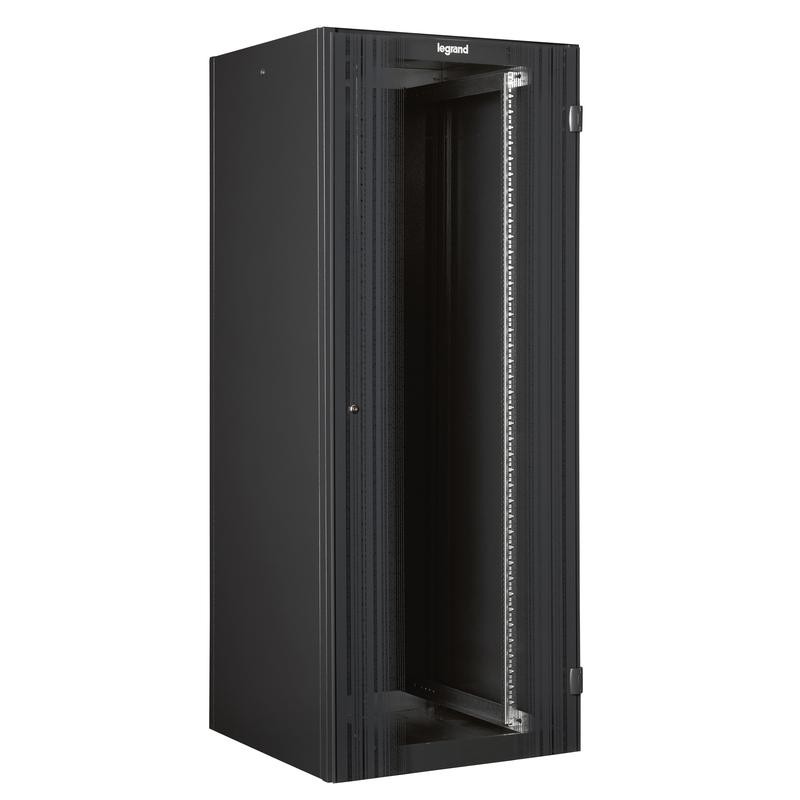

LEGRAND 646751 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

646751 LEGRAND LKO-CABINET 24U 800X800

Code: 646751

Manufacturer: LEGRAND

Description:

LKO-CABINET 24U 800X800
Linkeo 19" freestanding cabinet with single front glass door -capacity 24U - dimensions 1226x800x800 mm -ready-assembled
19" Linkeo Cabinet - Single front door - 24U - 800x800mm

Categories:

  • Cabinet enclosures > Network/server enclosure
  • LEGRAND > ENCLOSURES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 774,00 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)910.874
  • Weight (g)81 900.00
Product characteristics
Linkeo 19'' cabinets
  • IP 20 - IK 08 baying cabinets
  • Reversible front glass door with screen printing. Removable side and rear panels
  • Panels with automatic equipotential connection
  • 4 sides locked with key lock
  • Equipped with 2 x 19'' uprights with U marking and adjustable in depth
  • Pre-cut cable entries (top and bottom). To be fitted with brush cable entry Cat.No 6 464 28
  • Cut-out at the top for fan kit
  • Equipped with levelling feet
  • Loading capacity: 400 kg
  • Anthracite grey RAL 7016
Single front glass door
  • Ready-assembled
  • Capacity: : 24 U
  • Height: : 1226 mm
  • Width: : 800 mm
  • Depth: : 800 mm
General characteristics
Linkeo 19'' freestanding cabinets - cabinets and equipment

ETIM for 646751 Cabinets and enclosures (EC002499)

Feature nameFront door locking system (EF011934)
Feature valueOne point
Feature nameHeight (EF000040)
Feature value1226 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameWith front door (EF007377)
Feature valueYes
Feature nameNumber of doors (EF000122)
Feature value1
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameDemountable (EF007551)
Feature valueYes
Feature nameWith roof plate (EF007375)
Feature valueYes
Feature nameWith base (EF005070)
Feature valueNo
Feature nameWith earthing (EF007376)
Feature valueYes
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameMaterial front door (EF011937)
Feature valueGlass
Feature nameWith vertical cable management (EF011936)
Feature valueNo
Feature nameMax. load capacity (EF000258)
Feature value400 kg
Feature nameRAL-number (EF000116)
Feature value7016
Feature nameModel (EF000010)
Feature valueWith permanent frame
Feature nameNumber of height units (EF003561)
Feature value24
Feature nameWith glazed door (EF001089)
Feature valueYes
Feature nameMounting level (EF006795)
Feature valueFront
Feature nameType of profile rail (EF006796)
Feature valueCrank
Feature nameModular spacing (EF008458)
Feature value482.6 mm (19 inch)
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameWith sidewall (EF007383)
Feature valueYes
Feature nameDepth (EF000049)
Feature value830 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameType of ventilation (EF000249)
Feature valueNone
Feature nameWidth (EF000008)
Feature value810 mm
