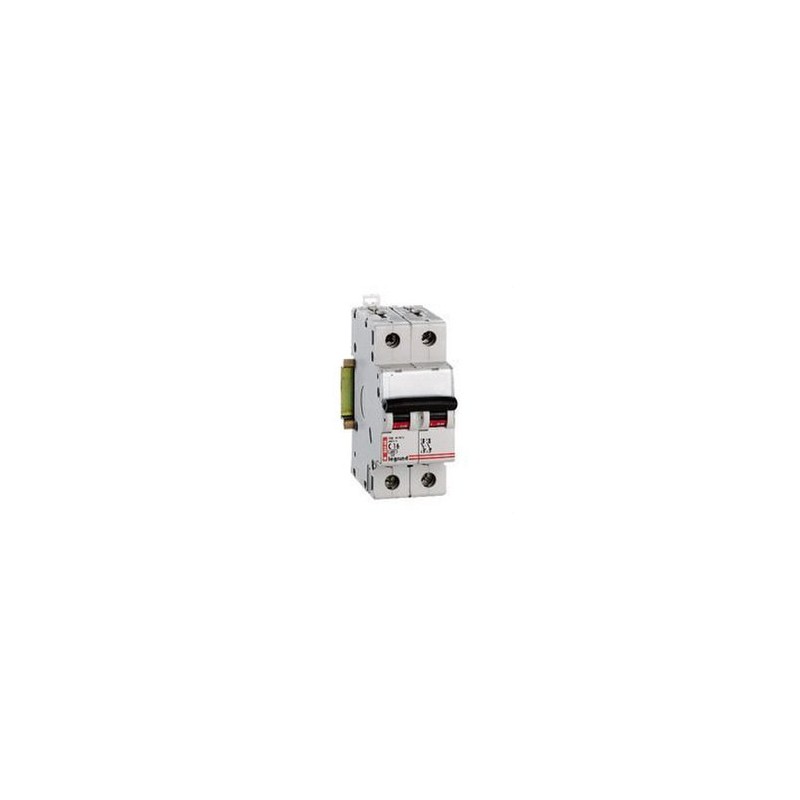

LEGRAND 603038 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

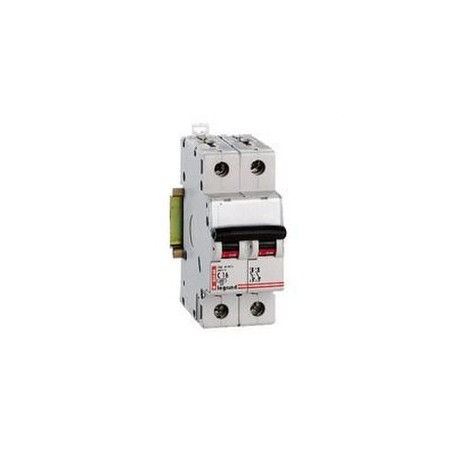

603038 LEGRAND ICP-M 2P 25A

Code: 603038

Manufacturer: LEGRAND

Description:

ICP-M 2P 25A
ICP-M Switch - control of power 2 P - 230/400 V~ - 25 A - 2 mód.
ICP-M - Power control switch 2 P - 230/400V~ - 25A - 2mod

Categories:

  • Circuit breakers and fuses > Miniature circuit breaker (MCB)
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 132,11 €

Unit Price: 26,423 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Wattage control switch (ICP-M Bipolar 230/400 V~ - Curve ICP-M - rated current: 25a - Number of modules: 2

General characteristics

Switch power control to 50A curve ICP-M - circuit Breakers residual current protection - Curve ICP-M according to UNE 20317 - Power of court to 6000A according to UNE 20317 - Use: Switch for Power Control of the subscriber captive Screws Portaetiquetas incorporated

ETIM for 603038 Circuit breakers and fuses (EC000042)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueNo
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameRated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555)
Feature value6 kA
Feature nameAdditional equipment possible (EF008148)
Feature valueYes
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4 kV
Feature nameNumber of protected poles (EF005548)
Feature value2
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameNumber of poles (total) (EF008618)
Feature value2
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value35.6
Feature nameRated insulation voltage Ui (EF001366)
Feature value500 V
Feature nameOver voltage category (EF002569)
Feature value3
Feature nameRated current (EF000227)
Feature value25 A
Feature nameCurrent limiting class (EF002568)
Feature value3
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
Feature nameRelease characteristic (EF000889)
Feature valueOther
Feature nameRated voltage (EF000228)
Feature value400 V

DATASHEET - PDF

Title
Size
Type
603038 EN_603003.pdf
490 Kbytes
