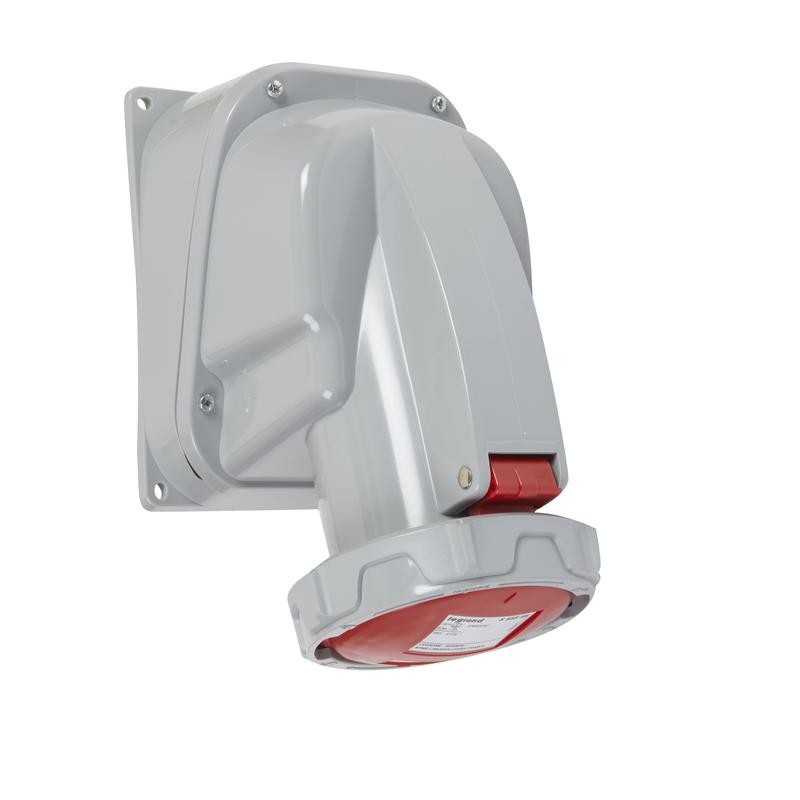

LEGRAND 555558 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

555558 LEGRAND P17 B.SUP 63A 3P+T 415V IP67

Code: 555558

Manufacturer: LEGRAND

Description:

P17 B.SUP 63A 3P+T 415V IP67
P17 B. SUP 63A 3P+E 415V IP67
P17 Tempra Pro IP66/67 63A 380/415V AC 3 Pole + Earth Surface Mounting Socket Plastic
P17 PRO surface wall base. 3P+T, 63A, 380/415V~, IP66/67

Categories:

  • Industrial socket/plug applications > CEE socket outlet combination
  • LEGRAND > SOCKETS AND COMBINED P-17

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 126,39 €

Unit Price: 63,197 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Conform to BS EN 60309-1 and IEC 60309-1 and BS EN 60309-2 and IEC 60309-2 IP 44 according to BS EN 60529 and IEC 60529 IK 09 according to BS EN 62262 and IEC 62262 Material: polyamide 6 Self-extinguishing: 850 °C (support of active parts) / 650 °C (plastic housing)
CEE socket outlet 16 ANone
CEE socket outlet 32 ANone
CEE socket outlet 63 A1x63A xp xxxV
CEE socket outlet 125 ANone
Number of socket outlets with protective contact CEE 7/3 (type F)1
ProtectionNone
Earth leakage switchNone
Number of miniature circuit breakers (MCB)0
Housing materialPlastic
Power supply/connection possibilityOther
Diameter cable entryM32
HandlingWall mounting
Degree of protection (IP)IP67
Military modelNo
ColourGrey
Height270 mm
Width130 mm
Depth190 mm

ETIM for 555558 Industrial plugs and sockets (EC000379)

Feature nameHeight (EF000040)
Feature value270 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameProtection (EF000781)
Feature valueNone
Feature nameEarth leakage switch (EF002657)
Feature valueNone
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value1
Feature nameDiameter cable entry (EF016110)
Feature valueM32
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameCEE socket outlet 63 A (EF002790)
Feature value1x63A xp xxxV
Feature nameCEE socket outlet 125 A (EF002791)
Feature valueNone
Feature namePower supply/connection possibility (EF002794)
Feature valueOther
Feature nameHandling (EF002795)
Feature valueWall mounting
Feature nameMilitary model (EF006050)
Feature valueNo
Feature nameDepth (EF000049)
Feature value190 mm
Feature nameCEE socket outlet 32 A (EF002789)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameCEE socket outlet 16 A (EF002788)
Feature valueNone
Feature nameWidth (EF000008)
Feature value130 mm
