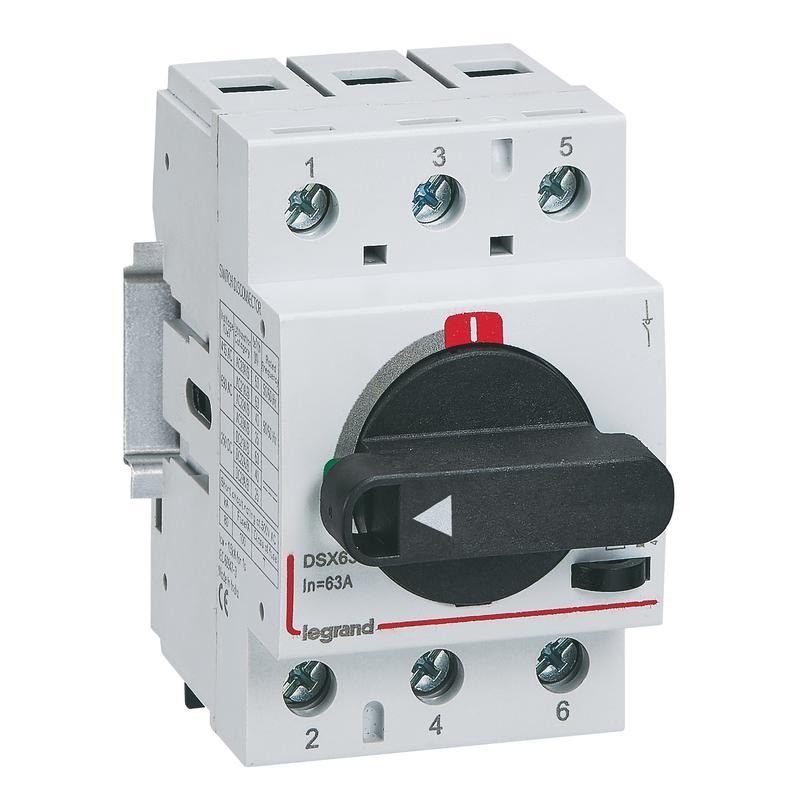

424002 LEGRAND DSX SD DIN DISCONNECTOR 3P 63A

Code: 424002

Manufacturer: LEGRAND

Description:

DSX SD DIN DISCONNECTOR 3P 63A
DSX SD DIN - 63A - 3P disconnect switch - front direct control - black handle
DSX SD DIN - 63A - 3P disconnect switch - direct front control - black

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LEGRAND > INDUSTRIAL CONTACTORS / SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 38,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

DSX SD DIN disconnector switch - 63A - 3P - Width: 3 modules - Front direct control - Black handle - Internal mechanism independent of the rotation speed of the handle - Use category AC23 A/B (415V ~) - Remote with lock possibility in open position (Φ 6mm padlock) - Bracket terminals - Accepts copper and aluminum cables - Can be equipped with up to 4 auxiliary contacts (Ref 424208), 2 contacts on each side.
Running as a main switchYes
Operation as a maintenance/repair switchYes
Operation as a safety switchYes
Execution as an emergency stop deviceYes
Execution as a switch-inverterNo
Number of switches1
Maximum Rated Operating Voltage Ue AC690 V
Permanent nominal current Iu63 A
Permanent current assigned to AC-23, 400 V63 A
Permanent current assigned with AC-21, 400 V63 A
Icw short-duration rated current resistance1.5 kA
Rated operating power at 400V AC-2325.2 kW
Conditional Short-Circuit Current Rating Iq3 kA
Number of poles3
Number of auxiliary contacts normally closed4
Number of auxiliary contacts normally open4
Optional motorized driveNo
Integrated motorized driveNo
Optional Tension ReleaseNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Execution of the actuator elementRotary knob (knob)
InterlockableNo
Main Current Circuit Connection TypeCable clamp
Degree of protection (IP), frontIP20
Degree of protection (NEMA)1
Width52.5 mm
Height83 mm
Depth67.2 mm
Operating Temperature-25-70 °C
Storage temperature-25-70 °C
Type of voltageAC/DC
Direction of the electricity supplyFrom the top or bottom
Display of markings on the connection terminalsYes
ColourGrey
RAL number7035
Halogen-freeYes
Terminal capacity10-16 mm²
Connection typeCable
Label Space/Print AreaNo
Contains battery and/or accumulatorNo
IEC DesignationNot Applicable , Not Applicable
Battery or accumulator (Pack1)Not applicable
Item Composition (Pack1)Not applicable
Battery or accumulator (Pack2)Not applicable
Item Composition (Pack2)Not applicable

ETIM for 424002 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameHeight (EF000040)
Feature value83 mm
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value4
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value63 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value4
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameRated short-time withstand current lcw (EF007050)
Feature value1.5 kA
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueCable clamp
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueRotating button
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value3 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value25.2 kW
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value63 A
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameDepth (EF000049)
Feature value67.2 mm
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameWidth (EF000008)
Feature value52.5 mm
