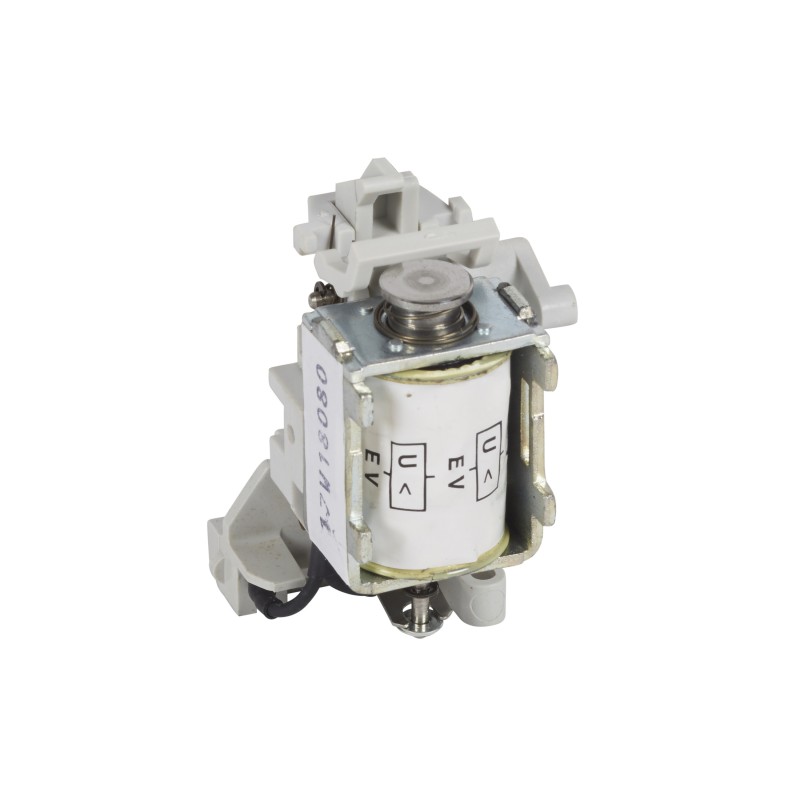

LEGRAND 422623 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

422623 LEGRAND MIN TENS COIL MOD DELAY

Code: 422623

Manufacturer: LEGRAND

Description:

MIN TENS COIL MOD DELAY
DECLENCHEUR MIN. TENS. RETARDS
Minimum voltage dispro coil with delay (800 ms) for DPX³ 630 and 1600 molded case switches
Minimum voltage coil with delay for DPX³ 630 and 1600

Categories:

  • Low-voltage industrial components > Under voltage coil
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 185,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Suitable for all construction sites, the DPX³ range offers 4 sizes of moulded case switches, for gauges between 16 A and 1600 A and breaking powers ranging from 16 to 100 kA. It also offers a wide range of versions to meet all needs: circuit breakers or electronics according to the level of protection required, fixed, sectional and removable devices according to the desired level of maintenance and residual current circuit breakers. With the DPX³ electronic switches with integrated measurement, it is possible to monitor the parameters and consumption of the different circuits in the system, without additional devices or accessories. The selectivity between the switches is optimal thanks to the performance of the DPX³ devices, in critical configurations, the dynamic selectivity and logic selectivity offered by the protection units of the electronic DPX³ ensure maximum continuity of service.
Pilot Pilot Supply Nominal Voltage for DC24-24 V
Drive Tension TypeCC
Running the electrical connectionThreaded connection
Number of contacts normally opened0
Number of Normally Closed Contacts0
Number of investor contacts0
RetardedYes
Suitable for circuit breakersYes
Load switch fitYes
Suitable for motor protection switchYes
Suitable for overload relaysYes

ETIM for 422623 Low-voltage industrial controls and switchgear (EC001022)

Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameDelayed (EF001541)
Feature valueYes
Feature nameSuitable for off-load switch (EF001543)
Feature valueYes
Feature nameSuitable for power circuit breaker (EF005863)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameSuitable for motor safety switch (EF005826)
Feature valueYes
Feature nameSuitable for overload relay (EF001545)
Feature valueYes
