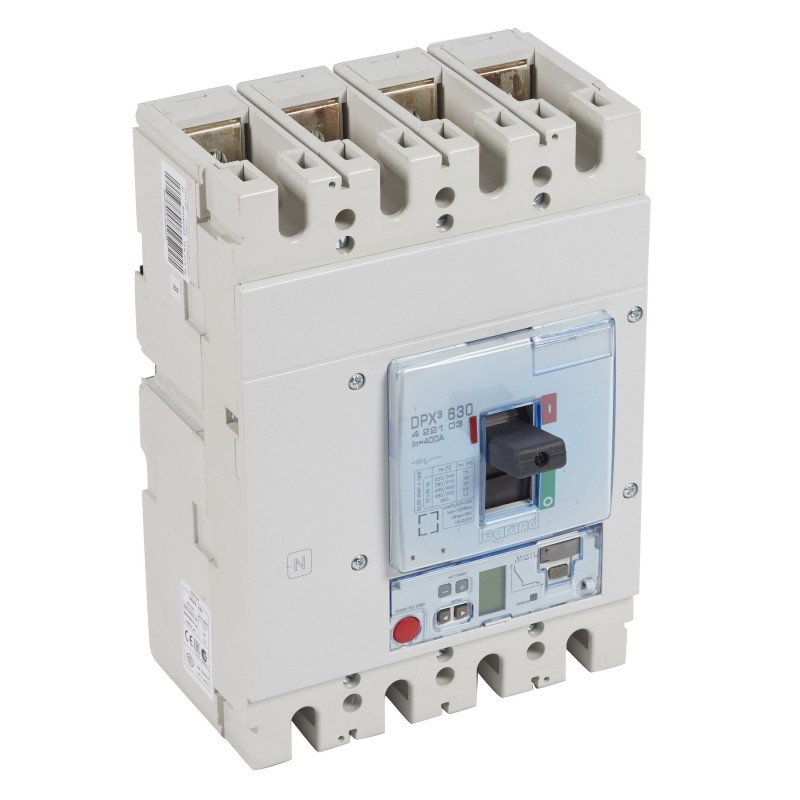

422103 LEGRAND DPX3 630 THE+MED 4P 400A 36kA

Code: 422103

Manufacturer: LEGRAND

Description:

DPX3 630 THE+MED 4P 400A 36kA
MCCB DPX³ 630 - S2 elec release + central - 4P - Icu 36 kA (400 V~) - In 400 A
MCCB DPX³ 630 electronic S2 + size - 4P - Icu 36kA (400V~) - In 400A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)10.00
  • Weight (g)6 963.00
Product characteristics
MCCBs electronic release S2 with energy metering central unit - fixed version
  • Adjustment of Ir, Isd, tr, tsd
  • Instantaneous protection If = 5 kA
  • Green indicator lamp
  • Connector for test unit
  • Logic and dynamic selectivity
  • 4P version: adjustment of neutral on front panel
Breaking capacity Icu 36 kA (400 V~)
  • 4P
  • In : 400 A
General characteristics
DPX³ 630 - S2 electronic release MCCBs from 250 to 630 A
  • Moulded case MCCBs for switching, control isolation and protection of low voltage electrical lines
  • Can be fitted with auxiliaries
  • Can be used with earth leakage modules or with residual current relays
  • Supplied complete with:
    • fixing screws
    • connection plates for bars
    • insulated shields (phase barriers)
  • Conform to IEC 60947-2 - Sealable adjustment
  • Can be mounted on plate in XL³ cabinets and enclosures

ETIM for 422103 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value2
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value5000 A
Feature nameIntegrated earth fault protection (EF007296)
Feature valueNo
Feature nameWith integrated under voltage release (EF001390)
Feature valueYes
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameOverload release current setting (EF002336)
Feature value160 A
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value240 A
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameRated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048)
Feature value36 kA
Feature nameRated permanent current Iu (EF001389)
Feature value400 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueFront
Feature nameRated voltage (EF003977)
Feature value220 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueYes
