LEGRANDDPX3 MOLDED BOX420618 LEGRAND DPX³250 mag. 4P 200A 70kA

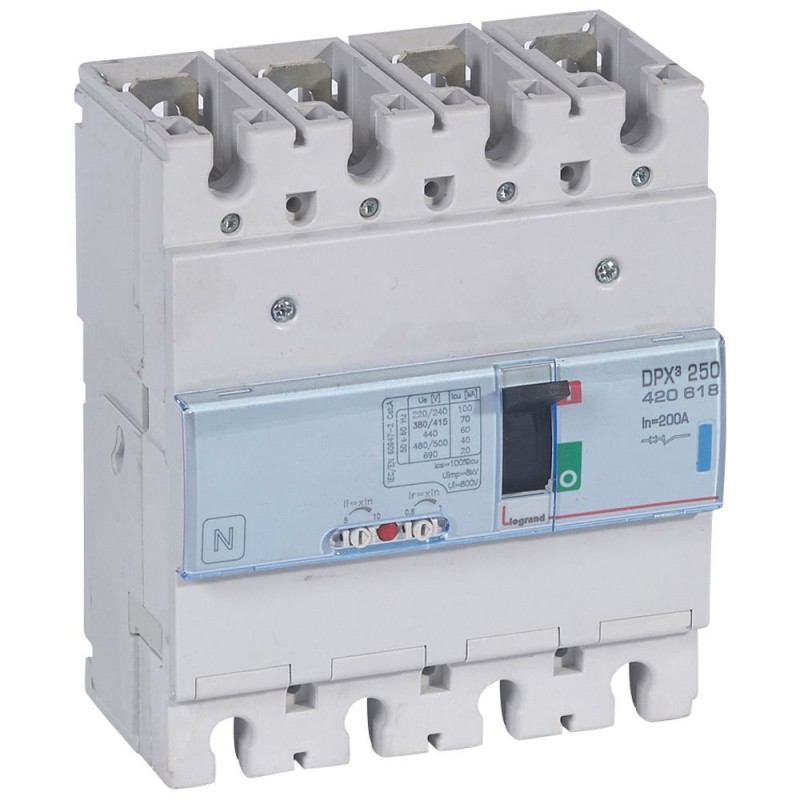

LEGRAND 420618 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

420618 LEGRAND DPX³250 mag. 4P 200A 70kA

Code: 420618

Manufacturer: LEGRAND

Description:

DPX³250 mag. 4P 200A 70kA
DPX³ 250 4 Pole 200A Thermal Magnetic MCCB 70kA
Automatic MCCB DPX³ 250 - circuit breaker - 4P - 70kA - 200A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.216,35 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Rated permanent current Iu200 A
Rated voltage220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting160-200 A
Adjustment range short-term delayed short-circuit release1000-2000 A
Adjustment range undelayed short-circuit release1000-2000 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingYes
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact1
With switched-off indicatorYes
With integrated under voltage releaseYes
Number of poles4
Position of connection for main current circuitFront side
Type of control elementWing knob
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP30

ETIM for 420618 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value1
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value1000 A
Feature nameIntegrated earth fault protection (EF007296)
Feature valueNo
Feature nameWith integrated under voltage release (EF001390)
Feature valueYes
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameOverload release current setting (EF002336)
Feature value160 A
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value1000 A
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameRated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048)
Feature value70 kA
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueFront
Feature nameRated voltage (EF003977)
Feature value220 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueYes
Feature nameComplete device with protection unit (EF008906)
Feature valueYes
