LEGRANDMOTOR CIRCUIT BREAKERS417307 LEGRAND MPX 32S GUARDAMT 2.5-4.0A

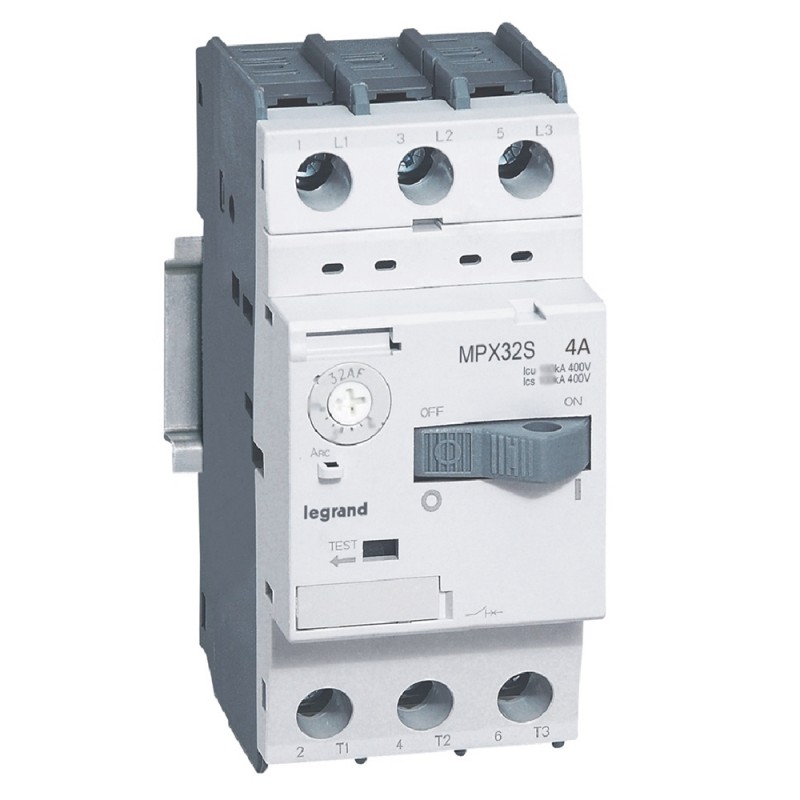

LEGRAND 417307 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

417307 LEGRAND MPX 32S GUARDAMT 2.5-4.0A

Code: 417307

Manufacturer: LEGRAND

Description:

MPX 32S GUARDAMT 2.5-4.0A
MPCB MPX³ 32S - thermal magnetic - motor protection - 3P - 4 A - 100 kA
MPX³ 32S Circuit Breaker - 4A - 100kA

Categories:

  • Low-voltage industrial components > Motor protection circuit-breaker
  • LEGRAND > MOTOR CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 64,84 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.499
  • Weight (g)320.00
Product characteristics
Thermal magnetic MPCBs
  • Adjustable thermal release
  • Magnetic release 13 Ie max.
MPX³ 32S
  • Standard breaking capacity
  • With toggle handle
  • Fixing on rail
  • 3-phase motor 400/415 V : 1.5 kW
  • Thermal release adjustment range : 2.5 to 4 A
  • Magnetic release operating current : 52 A
  • 415 V breaking capacity Icu : 100 kA
General characteristics
MPCBs MPX³ - motor protection circuit breakers from 0.16 A to 100 A
  • Conform to IEC 60947-1, IEC 60947-2, IEC 60947-4 ; class 10

ETIM for 417307 Low-voltage industrial controls and switchgear (EC000074)

Feature nameSwitch off technique (EF007007)
Feature valueThermomagnetic
Feature nameHeight (EF000040)
Feature value94 mm
Feature nameType of control element (EF006976)
Feature valueRocker lever
Feature nameWith thermal overload protection (EF006233)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameRated operation power at AC-3, 230 V (EF007025)
Feature value0.55 kW
Feature nameWith integrated auxiliary switch (EF001387)
Feature valueYes
Feature nameRated operation power at AC-3, 400 V (EF001364)
Feature value1.1 kW
Feature namePhase failure sensitive (EF007400)
Feature valueNo
Feature nameRated permanent current Iu (EF001389)
Feature value4 A
Feature nameRated short-circuit breaking capacity Icu at 400 V, AC (EF007049)
Feature value100 kA
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value52 A
Feature nameWith integrated under voltage release (EF001390)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameRated operating voltage (EF001435)
Feature value220 V
Feature nameDepth (EF000049)
Feature value75 mm
Feature nameOverload release current setting (EF002336)
Feature value2.5 A
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueFrame clamp
Feature nameWidth (EF000008)
Feature value45 mm

DATASHEET - PDF

Title
Size
Type
417307 EN_417307.pdf
3 Mbytes
