LEGRANDSUPERVISION AND ENERGY MEASUREMENT414923 LEGRAND EMS CX3 MODULE MEASURE FOR YOU

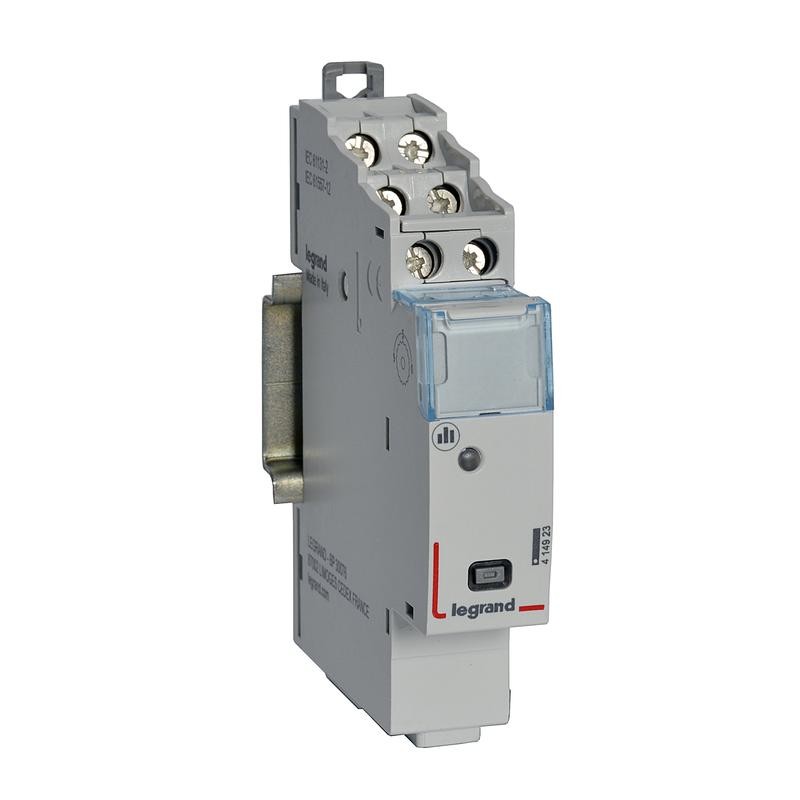

LEGRAND 414923 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

414923 LEGRAND EMS CX3 MODULE MEASURE FOR YOU

Code: 414923

Manufacturer: LEGRAND

Description:

EMS CX3 MODULE MEASURE FOR YOU
EMS CX3 MODULE TO MEASURE FOR YOU
Measurement module CX³ - connection with CT - 5 A - 1 module
Three-phase EMS CX³ measurement module for IT/5A

Categories:

  • Installation bus systems > Energy management for bus system
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 326,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.332
  • Weight (g)104.00
Product characteristics
Measurement modules
  • For measuring current, voltage, active/reactive power and other values
  • Conform to IEC/EN 61557-12
  • Accuracy: class 0.5
Connection with CT
  • 5 A measuring module connected via current transformers (CT)
  • Consumption: 0.391 W - 32.6 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)

ETIM for 414923 Installation bus systems (EC001102)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameModel (EF000010)
Feature valueEnergy meter
Feature nameS0 impulse interface (EF001530)
Feature valueNone
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameAccuracy class (EF001532)
Feature value0.5
Feature nameConnection type (EF000124)
Feature valueConvertible
Feature nameReactive power (EF001531)
Feature valueYes
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameTariff switch (EF001529)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
414923 EN_414923.pdf
3 Mbytes
