LEGRANDMOTOR CIRCUIT BREAKERS412225 LEGRAND LIMIT T2 20KA 3P+N ENVELOPE

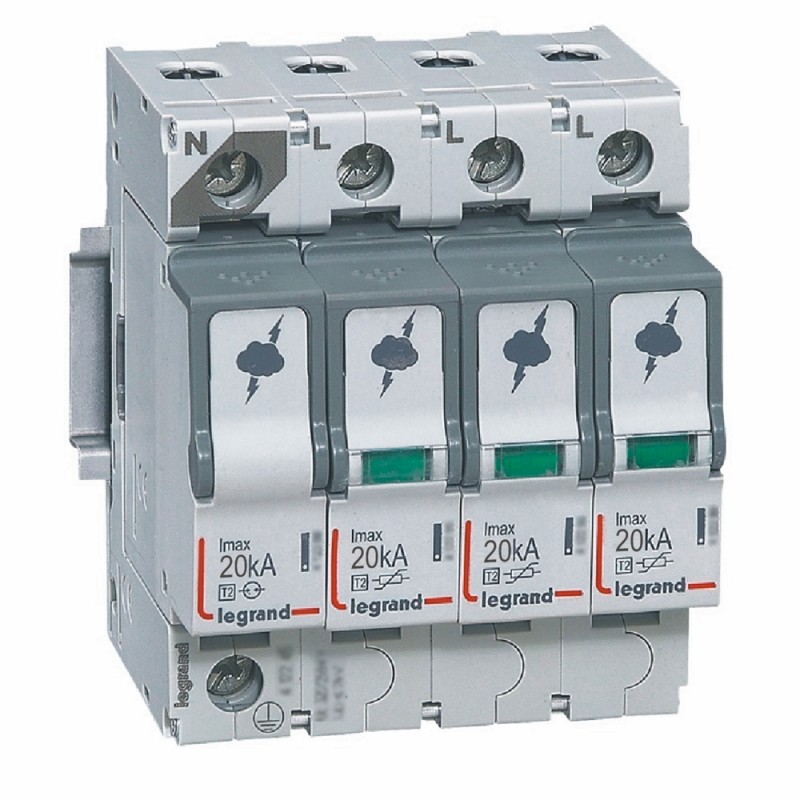

LEGRAND 412225 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412225 LEGRAND LIMIT T2 20KA 3P+N ENVELOPE

Code: 412225

Manufacturer: LEGRAND

Description:

LIMIT T2 20KA 3P+N ENVELOPE
LIMIT SOBRET T2 20KA 3P+N
SPD - T2 - Imax 20 kA/pole - 3P+N - neutral on left hand side
T2 surge limiter - Imax 20kA/pole - 3P+N - 320VA - 4mod

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • LEGRAND > MOTOR CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 204,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)351.00
Product characteristics
T2 SPDs
  • SPDs with plug-in modules and status indicators:
    • Green: SPD operational
    • Orange: plug-in modules to be replaced
T2 - Imax 20 kA/pole
  • SPDs recommended for small installations
  • Up: 1.2 kV - In: 5 kA/pole - Uc: 320 V~
  • Earthing systems : TT, TNC, TNS
  • Recommended MCB: DX³ 20 A - C curve
  • 1P+N and 3P+N: L-N and N-PE protection modes (common and differential modes), the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1
  • Number of poles : 3P+N
  • Neutral position : Left
  • Remote status monitoring (FS contact) : No
  • Number of modules : 4
General characteristics
Class II (T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for distribution boards

ETIM for 412225 Earthing, lightning and surge protection (EC000941)

Feature nameSystem configuration TN-C-S (EF009933)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNominal voltage AC (EF004220)
Feature value400 V
Feature nameSystem configuration TN-S (EF009930)
Feature valueNo
Feature nameConstruction size (EF002566)
Feature value4 modular spacing
Feature nameSystem configuration other (EF009932)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameSystem configuration TT (EF009931)
Feature valueYes
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value4
Feature nameSystem configuration IT (EF009927)
Feature valueNo
Feature nameSystem configuration TN-C (EF009929)
Feature valueYes
Feature nameSystem configuration TN (EF009928)
Feature valueYes
Feature nameMax. continuous voltage AC (EF004198)
Feature value320 V
Feature nameVoltage protection level N-PE (EF008796)
Feature value1.5 kV
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameVoltage protection level L-N (EF004236)
Feature value1.2 kV
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value5 kA
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value25 mm²

DATASHEET - PDF

Title
Size
Type
412225 EN_412220.pdf
610 Kbytes
