LEGRAND412015 LEGRAND CONNECTED MEASUREMENT MODULE

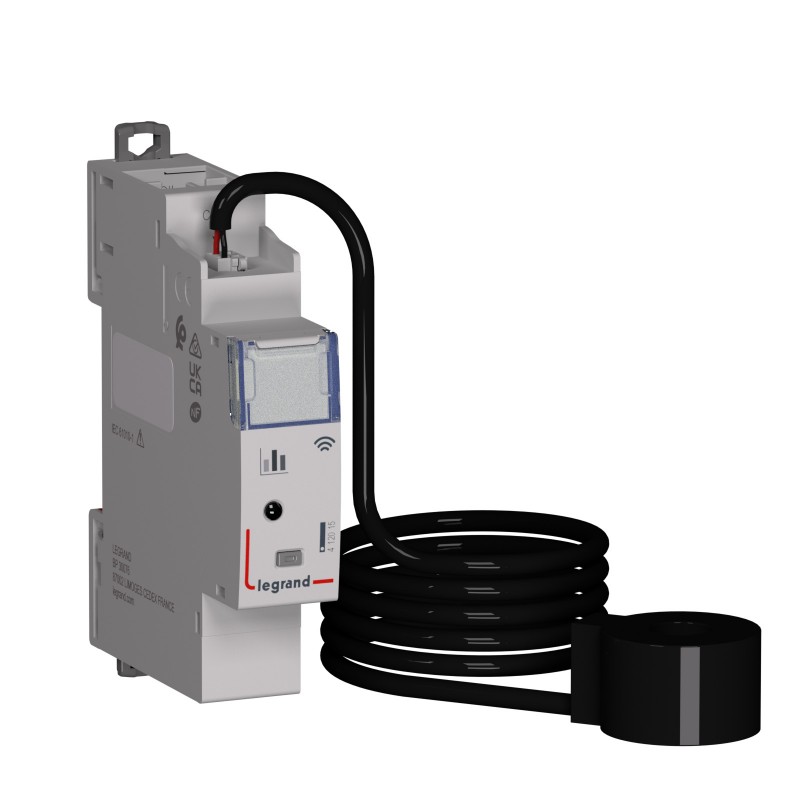

LEGRAND 412015 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412015 LEGRAND CONNECTED MEASUREMENT MODULE

Code: 412015

Manufacturer: LEGRAND

Description:

CONNECTED MEASUREMENT MODULE
EMDX³ with Netatmo Connected Energy Meter
63A connected measurement module

Categories:

  • Installation bus systems > Energy management for bus system
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 163,74 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Bus system KNXNo
Bus system KNX-RF (Radio Frequency)No
Bus system radio frequencyNo
Bus system LONNo
Bus system PowernetNo
Other bus systemsNone
Radio frequency bidirectionalYes
ModelEnergy meter
Connection typeDirect , Cable
Reactive powerNo
Approved according to PTBNo
S0 impulse interfaceNone
Tariff switchNo
Accuracy class1
Width17.7 mm
Height101.9 mm
Depth67.2 mm
degree of impact strength (IK)IK04
Degree of protection (IP)IP20
Operating / setting temperature5-45 °C
Storage temperature-40-70 °C
Voltage typeAC
Nominal voltage100-240 V
Frequency50-60 Hz
Terminal marking indicationYes
Halogen freeYes
Terminals capacity0.75-2.5 mm²
Label space/information surfaceYes
Fitted with USB plugNo
Mounting methodDIN rail
AddressableNo
Contains Batteries and/or AccumulatorNo
Connected objectYes
Operating methodZigbee
Application store for downloadGoogle Play Store , App Store
Programming waySmartphone apps
ProgrammableYes
Interoperable connection ProtocolNo
Connectable by Internet boxNo
Compatible voice assistantsAmazon Alexa , Apple Siri , Google Assistant
Product use functionEnergy measurement and metering
Application nameHome + Control

ETIM for 412015 Installation bus systems (EC001102)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameModel (EF000010)
Feature valueEnergy meter
Feature nameS0 impulse interface (EF001530)
Feature valueNone
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameAccuracy class (EF001532)
Feature value1
Feature nameConnection type (EF000124)
Feature valueDirect
Feature nameReactive power (EF001531)
Feature valueNo
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameApproved according to PTB (EF001533)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueNone
Feature nameTariff switch (EF001529)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
412015 EN_412015.pdf
2 Mbytes
