LEGRANDSUPERVISION AND ENERGY MEASUREMENT412008 LEGRAND TOROIDAL MEASURE 80A

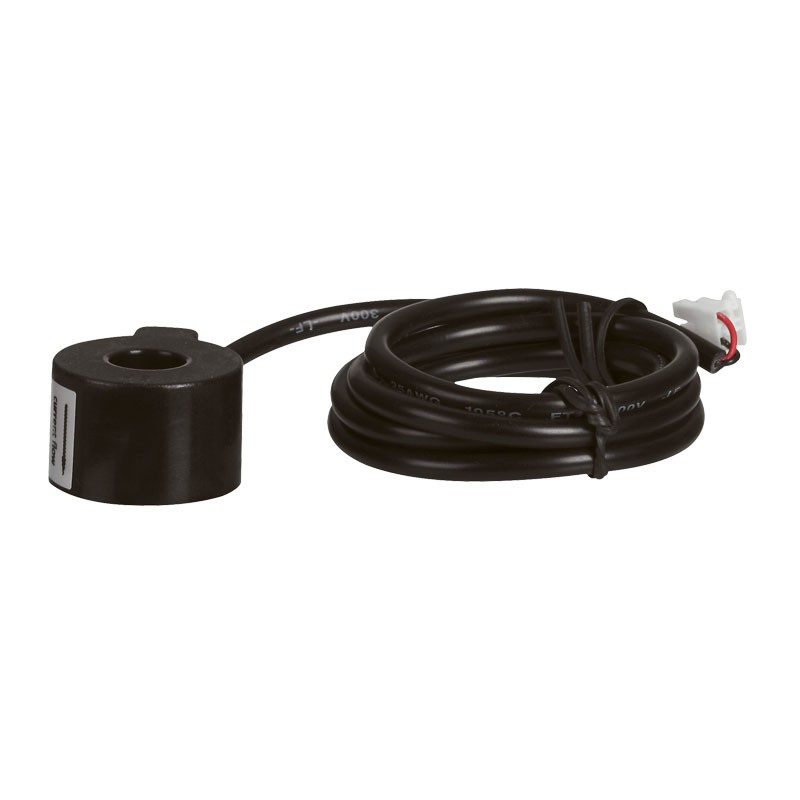

LEGRAND 412008 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

412008 LEGRAND TOROIDAL MEASURE 80A

Code: 412008

Manufacturer: LEGRAND

Description:

TOROIDAL MEASURE 80A
Toroidal measuring up to 80A maximum for connected eco-meter
Toroidal measuring up to 80A maximum for echo - connected meter

Categories:

  • Low-voltage industrial components > Current transformer
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 12,37 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Fast-connected closed current transformer - Associated with the connected eco-meter of the Smart Electrical Panel range for the measurement of the rest of the circuits - Allows to measure the electrical consumption up to 80A

General features

EMDX³ modular energy meters are used to measure the active and reactive electrical energy consumed/produced by a single-phase or three-phase circuit downstream of the power distribution meter. They display the energy consumption of the measured circuit as well as other values and transmit them to monitoring or energy management systems. The display is also done on the product by an LCD screen, and some meters are MID compatible for the rebilling of the energy consumed. EMDX³ control panels count the energy consumed by the different circuits, measure the electrical (intensity, voltage, power, etc.) or analog (temperature) values to check the correct operation of the installation. They monitor the quality of energy by harmonic analysis and the measurement of reactive energy and communicate the measured values to the energy monitoring or management systems, in order to optimize the consumption and energy quality of the electrical circuits. Mounting is possible on a rail or on a faceplate or door of the electrical cabinet.

ETIM for 412008 Low-voltage industrial controls and switchgear (EC002048)

Feature nameRated primary current (EF007405)
Feature value80 A
Feature nameSecondary connection (EF021093)
Feature valuePlug-in connection
Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent limiting factor (EF007511)
Feature valueFS 10
Feature nameAccuracy class (EF008842)
Feature valueOther
Feature nameSnap mounting (EF007462)
Feature valueYes
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameHeight opening (EF012757)
Feature value10 mm
Feature nameOpening diameter (EF005153)
Feature value10 mm
Feature nameWidth opening (EF012758)
Feature value10 mm
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameNumber of primary inputs (EF006947)
Feature value1

DATASHEET - PDF

Title
Size
Type
412008 EN_412008.pdf
2 Mbytes
