LEGRANDTERTIARY CIRCUIT BREAKERS411956 LEGRAND DX3 2/40/30 B DIFFERENTIAL

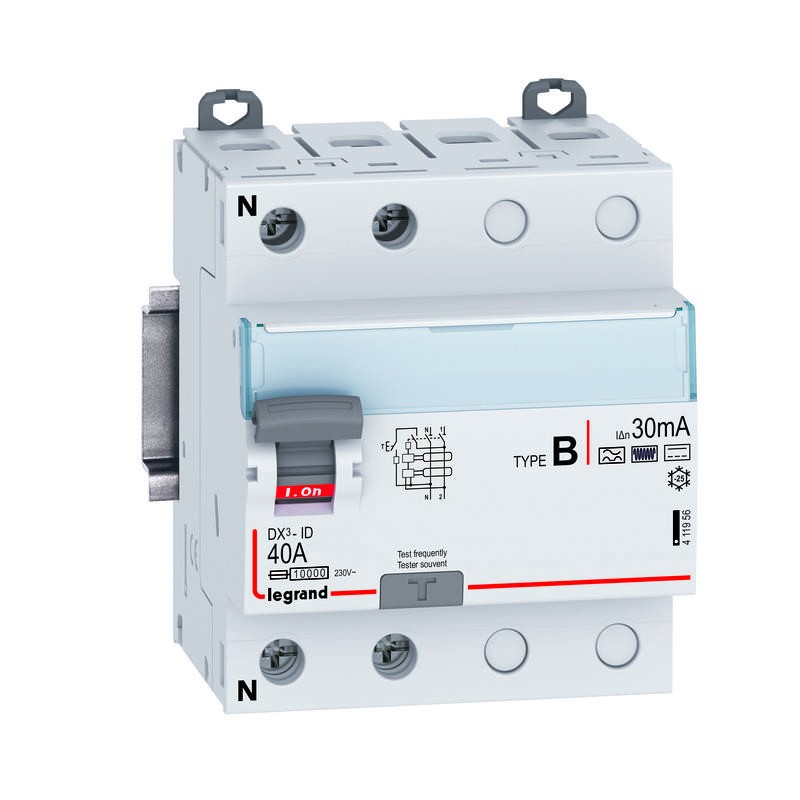

LEGRAND 411956 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

411956 LEGRAND DX3 2/40/30 B DIFFERENTIAL

Code: 411956

Manufacturer: LEGRAND

Description:

DX3 2/40/30 B DIFFERENTIAL
Differential switch DX³ - 2P- 230V~- 40A - type B - 30mA - 4 mód.
DX³ Differential Switch - 2P - 230V~ - 40A - Type B - 30mA - 4mod

Categories:

  • Circuit breakers and fuses > Residual current circuit breaker (RCCB)
  • LEGRAND > TERTIARY CIRCUIT BREAKERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 283,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

It protects people against direct and indirect contact and the risk of electric shock. Provides protection against fire hazards due to persistent ground defect current.

General features

DX³-ID differential switches - upper input/bottom output - Comply with UNE EN 61008-1 standard - Type AC: detect alternating component defects - Type A: detect defects of alternating and continuous components (specialized circuits: kitchens, hobs, washing machines, etc.) - Hpi type: detect defects of alternating and continuous components (type A) with reinforced immunity to untimely triggering (environments with disturbances: computer circuits, lightning strikes, fluorescent lamps, etc.) - Type B: detect defects of alternating and continuous components and defects of direct current without ripple (machinery with speed variation, photovoltaic installations, call centers, medical equipment, etc.) - Suitable for auxiliaries, motorized controls and DX³ connection modules (except Type B) - Screw/screw connection: upper and lower output by terminals with screws

ETIM for 411956 Circuit breakers and fuses (EC000003)

Feature nameExplosion-proof (EF004663)
Feature valueNo
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.75 mm²
Feature nameFrequency (EF005455)
Feature value50 Hz
Feature nameSelective protection (EF002561)
Feature valueNo
Feature nameShort-circuit breaking capacity (Icw) (EF002562)
Feature value10 kA
Feature nameAmbient temperature during operating (EF007515)
Feature value-25 °C
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameLeakage current type (EF002560)
Feature valueB
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameAdditional equipment possible (EF008148)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameSurge current capacity (EF002564)
Feature value3 kA
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameShort-time delayed tripping (EF003604)
Feature valueYes
Feature nameRated fault current (EF002358)
Feature value0.03 A
Feature nameRated impulse withstand voltage Uimp (EF011980)
Feature value4000 kV
Feature nameBuilt-in depth (EF000218)
Feature value44 mm
Feature nameRAL-number (similar) (EF003882)
Feature value7035
Feature namePollution degree (EF002570)
Feature value2
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameRated insulation voltage Ui (EF001366)
Feature value500 V
Feature nameWith interlocking device (EF007385)
Feature valueYes
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.75 mm²
Feature nameRated current (EF000227)
Feature value40 A
Feature nameRated voltage (EF000228)
Feature value230 V

DATASHEET - PDF

Title
Size
Type
411956 EN_411956.pdf
399 Kbytes
