LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS405240 LEGRAND HORIZONTAL DISTRIBUTOR 24 MOD

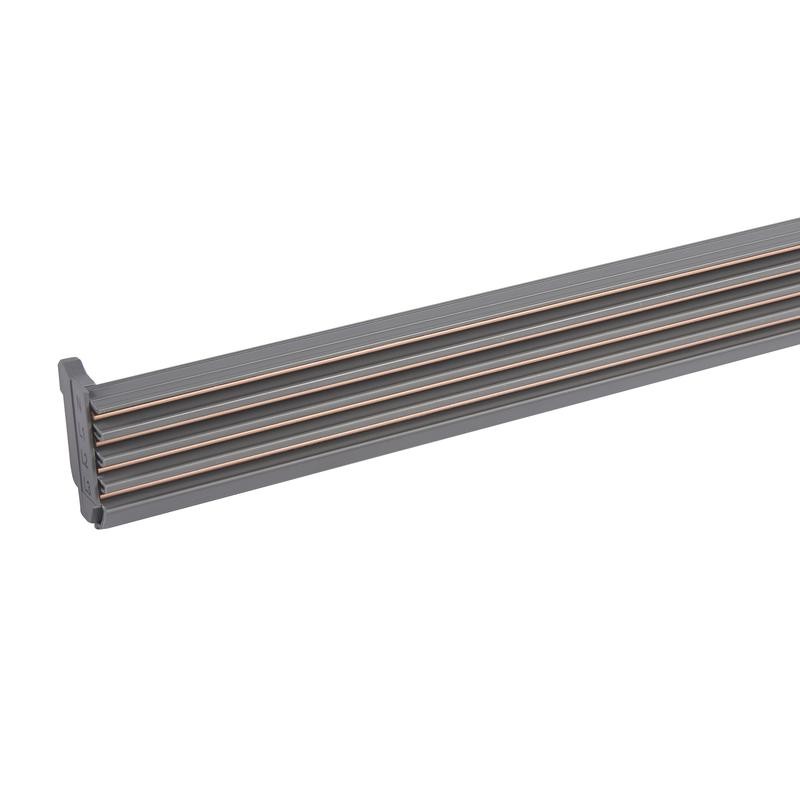

LEGRAND 405240 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

405240 LEGRAND HORIZONTAL DISTRIBUTOR 24 MOD

Code: 405240

Manufacturer: LEGRAND

Description:

HORIZONTAL DISTRIBUTOR 24 MOD
DEALER HORIZONTAL 24 MOD
Dealer auto row 80/125 TO HX3 - 24 modules
Automatic row distributor 80/125A HX³ - 24mod

Categories:

  • Energy distribution systems > Busbar trunk unit
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 42,43 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Dispatchers row 80/125 TO HX3 plug Dispatchers machines - Are attached directly to the profiles ref. 0 202 06, 0 206 01 and 0 206 51 maximum Intensity of the operation: - 80 To maximum without power supply module 125 A - 125 To a maximum module power 125 A (ref. 405242) - 24 modules

General characteristics

Horizontal distribution HX3 plug 80/125 To - dispatchers row tetrapolares - Allows for a distribution three-phase without wiring devices modular DX3 up to 125 A in 1 - row automatic switching on and off of the devices with total safety, even though the dealer HX3 80/125 is connected to the power supply, thanks to the insulation IPxxB of the dealer and the plug-in modules solidarity of the apparatus. - Total freedom of installation, and mix of devices: 1P+N, 2P, 3P, 4P, blocks, differentials, auxiliary control devices, etc - Selection of the phase to connect by selecting the connect module - Mounting cabinets XL3 400/800/4000 with aluminium rail 2 positions ref. 0 202 06, 0 206 01/51 and in the boxes XL3 160 with the mounting accessory ref. 4 052 24

ETIM for 405240 Power distribution systems (EC000091)

Feature nameHeight (EF000040)
Feature value50 mm
Feature nameModel (EF000010)
Feature valueSingle
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameRated voltage AC 50 Hz (EF007065)
Feature value400 V
Feature nameNumber of tap-off units (EF007583)
Feature value24
Feature nameRated current AC 50 Hz (EF007684)
Feature value125 A
Feature nameFlexible (EF000083)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value4
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameLength (EF001438)
Feature value432 mm
Feature nameWidth (EF000008)
Feature value150 mm
