LEGRANDSPLITTERS404905 LEGRAND TERMINAL CONNECTION 25 MM2

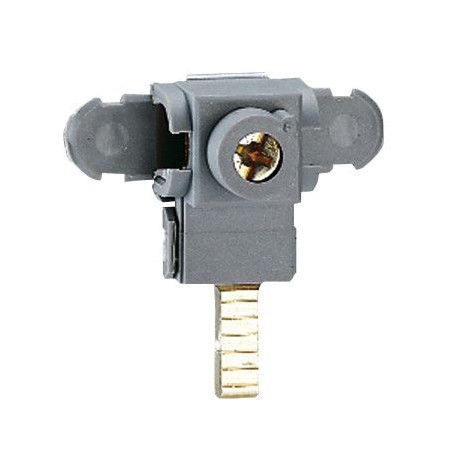

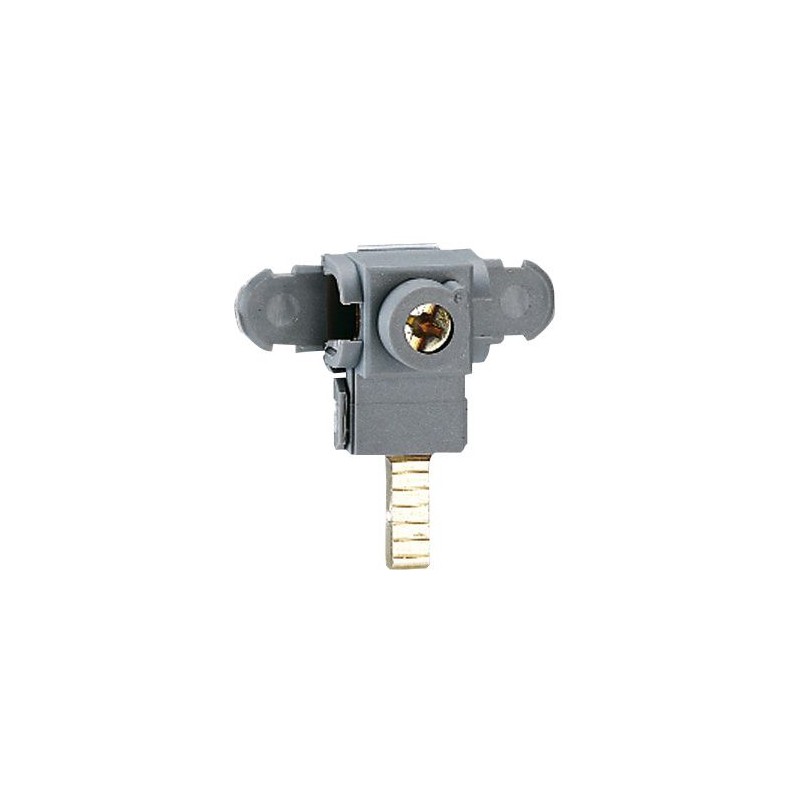

LEGRAND 404905 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

404905 LEGRAND TERMINAL CONNECTION 25 MM2

Code: 404905

Manufacturer: LEGRAND

Description:

TERMINAL CONNECTION 25 MM2
Legrand 1 Pole Busbar Entry Terminal IP2X
Terminal block for single-pole power combs - cross-section from 4 to 25mm²

Categories:

  • Energy distribution systems > Rail terminal bar
  • LEGRAND > SPLITTERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 166,38 €

Unit Price: 8,319 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Entry terminals Accepts conductors 4 - 25 mm² max for single pole busbars only IP 2X
Number of poles1
Nominal current100 A
Connection typeScrewing
Mounting methodOther
Number of inputs1
Number of outputs1
Suitable for solid conductorsYes
Suitable for stranded conductorsYes
Suitable for fine strand conductorsNo
Suitable for fine strand conductors without cable end sleeveNo
Suitable for extra fine-strand conductorsNo
Suitable for extra fine-strand conductors without cable end sleeveNo
Conductor cross section, input4-25 mm²
Conductor cross section, output25-25 mm²
Conductor cross section, output AWG4-4
Contact safeYes
Height37 mm
Width17.5 mm
Depth19 mm
Operating / setting temperature-5-40 °C
Storage temperature-25-70 °C
Type of distribution blocksMultifunction
Terminals capacity4-25 mm²
Label space/information surfaceNo

ETIM for 404905 Power distribution systems (EC000275)

Feature nameHeight (EF000040)
Feature value37 mm
Feature nameNominal current (EF000001)
Feature value100 A
Feature nameConnection type (EF000124)
Feature valueScrewing
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameContact safe (EF004521)
Feature valueYes
Feature nameSuitable for extra fine-strand conductors (EF016328)
Feature valueNo
Feature nameSuitable for extra fine-strand conductors without cable end sleeve (EF016329)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameConductor cross section, output AWG (EF016333)
Feature value4
Feature nameConductor cross section, output (EF016331)
Feature value25 mm²
Feature nameSuitable for fine strand conductors without cable end sleeve (EF016327)
Feature valueNo
Feature nameSuitable for stranded conductors (EF007818)
Feature valueYes
Feature nameDepth (EF000049)
Feature value19 mm
Feature nameConductor cross section, input (EF016330)
Feature value4 mm²
Feature nameSuitable for fine strand conductors (EF007804)
Feature valueNo
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameSuitable for solid conductors (EF007816)
Feature valueYes
Feature nameNumber of outputs (EF000319)
Feature value1
Feature nameNumber of inputs (EF000318)
Feature value1

DATASHEET - PDF

Title
Size
Type
404905 EN_404905.pdf
128 Kbytes
