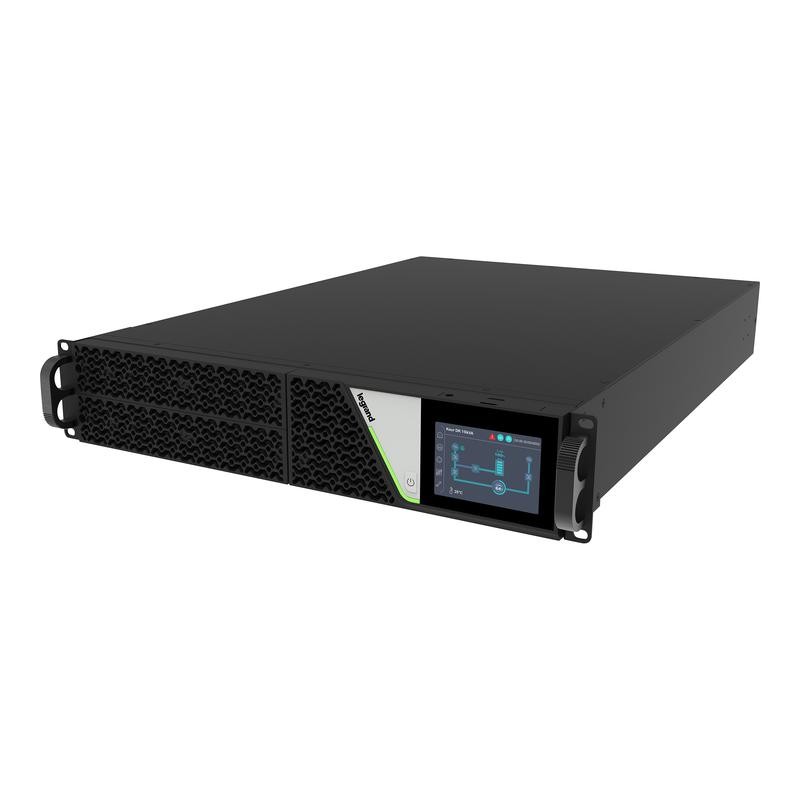

311352 LEGRAND SAI KEOR DK 10KVA NO BAT

The Keor DK 10000VA UPS is an advanced single-phase uninterruptible power supply solution designed for critical applications that require maximum reliability and energy efficiency. This system, based on online double conversion (ISV) technology, guarantees total protection against variations and power outages, ensuring the operational continuity of sensitive equipment in industrial, commercial and IT environments.- Active output power of 10000W and apparent power of 10000VA, which allows to power demanding loads with a unit output power factor (1), ensuring that all the power supplied is usable by the connected equipment.- Input voltage range from 176V to 280V and primary frequency from 45Hz to 65Hz, adapting to different electrical grid conditions and providing flexibility in installation.- Regulated output voltage between 200V and 240V and secondary frequency from 50Hz to 60Hz, Ideal for the protection of servers, telecommunications systems, medical equipment and industrial devices.- High-frequency online conversion technology with total efficiency of 96% and efficiency in eco mode of 99%, which significantly reduces energy consumption and operating costs, contributing to environmental sustainability.- Maximum voltage distortion at the output less than 2% under linear load, ensuring optimal power quality for sensitive electronic equipment.- Integrated network management capability, with USB, RS232 and SNMP compatible interfaces, facilitating remote monitoring, integration into management systems and centralized UPS administration.- Easy-to-use touchscreen LCD control panel, providing clear information and intuitive navigation for system configuration and monitoring.- Potential-free switching contact and function of Automatic disconnection, which allow integration with automation systems and advanced protection of connected loads.- Supports both standard VRLA batteries and lithium batteries, offering flexibility to adapt to different autonomy needs and life cycles, although this model is supplied without batteries included and with connection terminals to facilitate custom installation.- Compact design with dimensions of 88x440x700mm, and a weight of 18.2kg, which facilitates its integration into rack cabinets or tower installations according to user needs.- IP20 protection degree, suitable for controlled indoor environments, with an operating temperature range of 0°C to 40°C and storage range of -10°C to 50°C, guaranteeing reliability in various environmental conditions.- Noise level of only 45dB, allowing its use in environments where low noise is a requirement.- Rated current of 56A, suitable for powering high demand critical loads.- Universal load type, compatible with a wide variety of devices and systems.- Fixed input connection and a fixed type output, optimizing the safety and robustness of the installation.- Does not include C13 or C19 type output sockets, which guides it to professional installations where direct connection to terminals is required.- Clear indication of marks on the connection terminals to facilitate installation and maintenance.- Does not include battery or accumulator, allowing the user to select the most suitable energy storage solution for their specific needs. The Keor DK 10000VA UPS stands out for its industry-leading efficiency, advanced manageability, and flexibility to adapt to different battery configurations and installation environments. It is the ideal choice for those looking for robust, efficient electrical protection that can be easily integrated into critical infrastructures, with the guarantee of intelligent management and an optimised design for maximum performance and reliability.

Input Voltage (Min-Max)	176-280 V
Primary Frequency (Min-Max)	45-65 Hz
Number of primary phases	1
Output Voltage (Min-Max)	200-240 V
Secondary Frequency (Min-Max)	50-60 Hz
Active power output	10000 W
Apparent power output	10000 VA
Power consumption	101 W
USB interface	Yes
With RD 232 communication interface	Yes
Number of secondary phases	1
SNMP	Yes
Type of voltage	AC
Height	88 mm
Width	440 mm
Depth	700 mm
Weight	18.2 kg
Network management capability	Yes
ISV Technology	Online
Modulate	No

Max. voltage distortion at output (linear load)	2 %
Power Factor at Output	1
Total efficiency	96 %
Efficiency in Eco mode	99 %
Potential-free switching contact	Yes
Automatic switch-off function	Yes
Input socket	Fixed connection
Number of C13 outlet outlets	0
Number of C19 outlet sockets	0
Number of fixed-type output sockets	1
Protection Class (IP)	IP20
Operating Temperature (Min-Max)	0-40 °C
Storage Temperature (Min-Max)	-10-50 °C
Rated Current (Min-Max)	56-56 A
Sound Level	45 dB
Display of markings on the connection terminals	Yes
Load Type	Universal
With electrical outlet	No
Contains battery and/or accumulator	No
