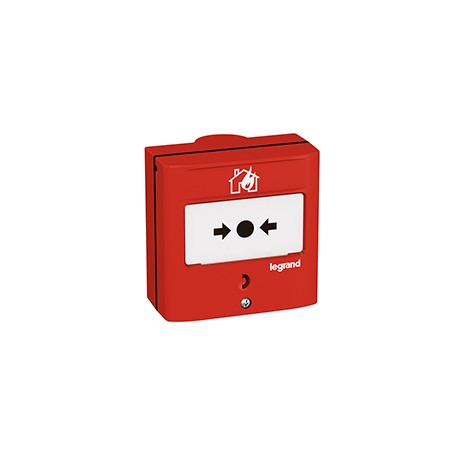

LEGRAND 138069 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

138069 LEGRAND CONVENTIONAL ALARM BUTTON

Code: 138069

Manufacturer: LEGRAND

Description:

CONVENTIONAL ALARM BUTTON
PUSH-BUTTON ALARM CONVENTIONAL
Manual call point for fire detection/alarm system -conventional -1 NO/NC -5 A -24 V= -RAL 3000
Flush-mounting meter cabinet, W=1035mm, H=1560mm, 8 meter plates

Categories:

  • Alarm installations, emergency call and signalling > Non-automatic detector for danger detection system
  • LEGRAND > SIRENS AND ALARMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 52,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.716
  • Weight (g)140.00
Product characteristics
Manual call points (MCP)
  • IP 30 - IK 07
  • Surface-mounting or flush-mounting (IP 30)
  • Dimensions: 90x90x57 mm (surface-mounting with its base) or 90x90x24 mm (flush-mounting with flush boxes for wiring devices - drilling diameter 67 mm - for 60 mm fixing centres)
  • Can be fitted on trunking Cat. Nos 0 104 63/64, 35x105 mm or 50x105 mm, with the universal support Cat. No 0 109 13
  • Call by pressing the membrane (pressure 2.5 kg) with clear display of the call position
  • Reset on front of device, with special key Cat. No 0 380 38 (supplied with the product)
  • Possibility to add an optional mechanical status indicator Cat. No 1 380 93 to provide additional signalling
  • Can receive a sealable cover Cat.No 0 380 97
MCP for fire detection and fire alarm systems
  • Conform to EN 54-11 standard
  • CE-CPR approved
  • Type A – simple action
  • Color of the mechanical enclosure: red RAL 3000
  • MCP - conventional - 1 contact
  • Equipped with 1 NO/NC contact – 5 A – 24 VDC
General characteristics
Safety boxes 90 series - for fire detection and fire alarm system, emergency exit, extinguishing system, remote switching

ETIM for 138069 Fire, security and emergency alarm equipment (EC001765)

Feature nameHeight (EF000040)
Feature value90 mm
Feature nameWith paper cover (EF007966)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWith glass disc (EF007950)
Feature valueNo
Feature nameType of messaging (EF005006)
Feature valueFire brigade alarm (red)
Feature nameDepth (EF000049)
Feature value57 mm
Feature nameColour (EF000007)
Feature valueRed
Feature nameWidth (EF000008)
Feature value90 mm
Feature nameVdS accepted (EFDE0033)
Feature valueNo
