LEGRANDACCESSORIES CONTROL AND CONTROL PANELS098006 LEGRAND IP68 ISO 32 CABLE GLAND

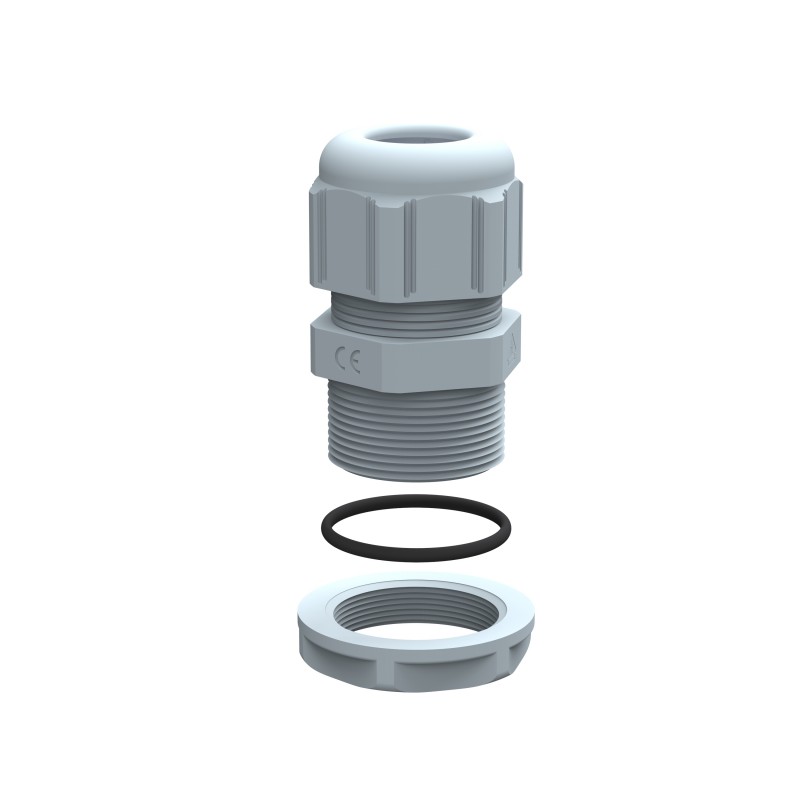

LEGRAND 098006 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

098006 LEGRAND IP68 ISO 32 CABLE GLAND

Code: 098006

Manufacturer: LEGRAND

Description:

IP68 ISO 32 CABLE GLAND
GASKET IP68 ISO 32
Cable gland plastic - IP68 - ISO 32 - clamping capacity 18-25 mm - RAL 7001
Plastic cable glands - IP68 - ISO 32 - RAL 7001

Categories:

  • Cable and wire entry systems > Cable gland
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 31,86 €

Unit Price: 6,371 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)5
  • Volume (dm3)1.409
  • Weight (g)268.00
Product characteristics
Grey RAL 7001 cable glands
  • Anti-vibration mechanically tightened cable gland with neoprene weatherproof seal for IP 68 protection
  • Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength
  • Supplied with surface seal and locking nut mounted
ISO
  • Conform to EN 50 262
  • ISO : 32
  • Clamping capacity Ø Min. : 18 mm
  • Clamping capacity Ø Max. : 25 mm
General characteristics
Plastic cable glands IP 68 - ISO and PG

ETIM for 098006 Cable glands and cable entry products (EC000441)

Feature nameFlat cable coupling (EF004685)
Feature valueNo
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
Feature nameShock resistant (EF000084)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP68
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameScreened (EF000881)
Feature valueNo
Feature nameSeparable screw gland (EF005337)
Feature valueNo
Feature nameGlass-fibre reinforced (EF001210)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valuePolyamide (PA)
Feature nameSnapping in opening (EF012547)
Feature valueYes
Feature nameOperating temperature (EF001742)
Feature value-20 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value7001
Feature nameWith strain relief (EF000878)
Feature valueNo
Feature nameBend radius protection/trumpet flare (EF000734)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameMulti seal area (EF005004)
Feature valueNo
Feature nameHexagon angular dimension (EF005268)
Feature value58.5 mm
Feature nameSuitable for cable diameter (EF005466)
Feature value18 mm
Feature nameModel (EF000010)
Feature valueStraight
Feature nameWrench width (EF000177)
Feature value42 mm
Feature nameWith locknut (EF005049)
Feature valueYes
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameFor armoured cable (EF012184)
Feature valueNo
Feature nameThread length (EF000368)
Feature value42 mm
Feature nameType of sealing (EF001217)
Feature valueEV009696
Feature nameColour (EF000007)
Feature valueGrey
Feature namePitch thread (EF003712)
Feature value1.5 mm
Feature nameThread type (EF001758)
Feature valueMetric
Feature nameNominal thread size inch/gas pipe thread (EF007838)
Feature valueOther
Feature nameNominal thread size metric/PG (EF007839)
Feature value32
