LEGRANDINSTALLATION ACCESSORIES080031 LEGRAND BATIBOX ENERGY CX.SIMPLE P.50

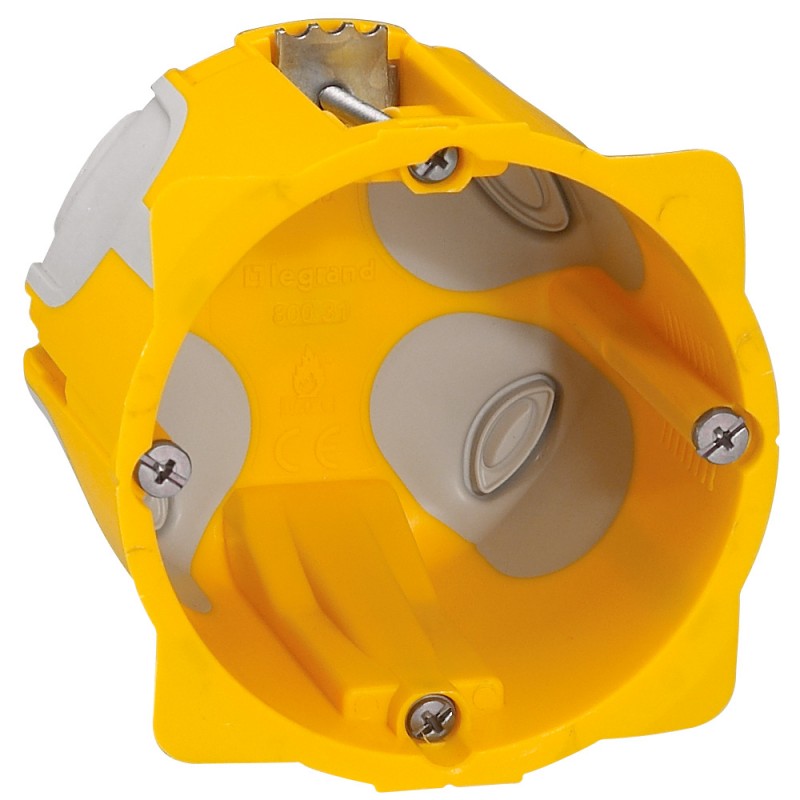

LEGRAND 080031 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

080031 LEGRAND BATIBOX ENERGY CX.SIMPLE P.50

Code: 080031

Manufacturer: LEGRAND

Description:

BATIBOX ENERGY CX.SIMPLE P.50
Flush mounting box EcoBatibox - 1 gang depth 50 mm - dry partitions
EcoBatibox recessed box for dry partition. 1 element, 2mod. Prof. 50mm

Categories:

  • Connection devices > Box/housing for built-in mounting in the wall/ceiling
  • LEGRAND > INSTALLATION ACCESSORIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)25
  • Volume (dm3)15.195
  • Weight (g)1 047.00
Product characteristics
1-gang boxes
  • Depth 50
  • For 1 gang or 2 modules
  • Drilling diameter 67 mm
  • For wiring accessories using screws or claws
  • Can be associated with blanking plate kits Cat.Nos 0 800 16/20
General characteristics
EcoBatibox™ - flush-mounting boxes for dry partitions

ETIM for 080031 Junction and back boxes (EC002601)

Feature nameNumber of inlets (EF003593)
Feature value4
Feature nameFor tube diameter (EF005496)
Feature valueOther
Feature nameInner depth (EF001131)
Feature value50 mm
Feature namePipe locking (EF005657)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueHollow wall
Feature nameSealable (EF001454)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueNone
Feature nameInlet from the rear (EF005604)
Feature valueYes
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameSuitable for cable diameter (EF005466)
Feature value16 mm
Feature nameShape (EF000051)
Feature valueRound
Feature nameClamp position fixed (EF007889)
Feature valueNo
Feature nameModel (EF000010)
Feature valueSingle
Feature nameNumber of poles of the clamp (EF008016)
Feature value0
Feature nameTransparent cover (EF011401)
Feature valueNo
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueYellow
Feature nameConstruction type (EF000767)
Feature valueDevice connection box (round/square)
Feature nameWidth (EF000008)
Feature value71 mm
Feature nameCover attachment (EF004586)
Feature valueOther
Feature nameAir tight (EF005430)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSpecial application (EF006205)
Feature valueNone
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameCouplable (EF001229)
Feature valueNo
Feature nameHousing feed-through by step membrane (EF009208)
Feature valueNo
Feature nameHousing feed-through by nozzle (EF009207)
Feature valueNo
Feature namePipe locking optional (EF009209)
Feature valueNo
Feature nameProvided with revolving ring (EF009204)
Feature valueNo
Feature nameDiameter (EF000551)
Feature value67 mm
Feature nameHousing feed-through by seal membrane (EF009206)
Feature valueNo
Feature nameHousing feed-through by break-out opening (EF009763)
Feature valueNo
Feature nameNozzle (EF008076)
Feature valueNone
Feature nameLuminaire hook mounting (EF004902)
Feature valueNo
Feature nameFor number of electric fittings (EF004702)
Feature value2
Feature nameLength (EF001438)
Feature value71 mm
Feature nameMounting switching equipment (EF004508)
Feature valueScrew or spread out
