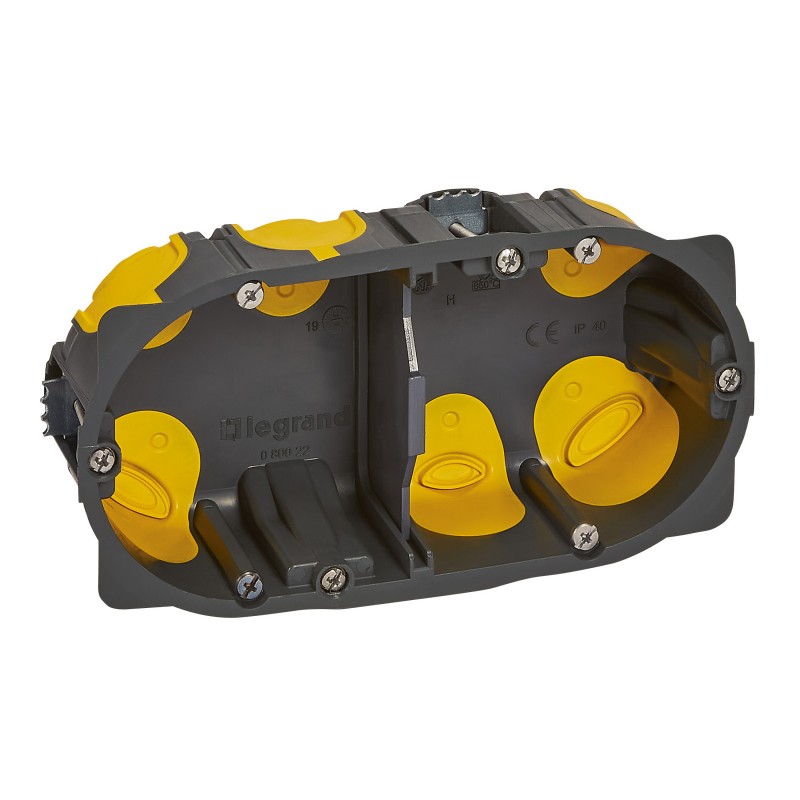

LEGRAND 080022L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

080022L LEGRAND BATIBOX ENERGY CX.DUPLA P.40MM

Code: 080022L

Manufacturer: LEGRAND

Description:

BATIBOX ENERGY CX.DUPLA P.40MM
EcoBatibox recessed box for dry partition. 2 elements, 4/5 modules. Depth 40mm
EcoBatibox recessed box for dry partition. 2 elements, 4/5mod. Prof. 40mm

Categories:

  • Connection devices > Box/housing for built-in mounting in the wall/ceiling
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 229,98 €

Unit Price: 15,332 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

The Ecobatibox recessed box is suitable for low-consumption (BBC) and passive homes and meets the requirements of RT 2012. It can be used with Ø 16mm and Ø 20mm shutters. It especially improves the energy performance of buildings by eliminating air flows generated by electrical infrastructure. Available in a single station or multi-station version in 40 or 50mm depth to adapt to all types of equipment. Multi-station enclosures can be installed horizontally or vertically and a removable separation is provided to isolate strong current from weak current. A canopy box also allows you to complete the answers to your needs on construction sites.
Type of mountingHollow wall
FormOval
Construction MethodDevice Connection Box (Round/Square)
ModelDouble
With rotary ringNo
equipmentnone
Diameter67 mm
Longitude142 mm
Width72.8 mm
Internal depth40 mm
For multiple device insertions5
Assembling the devicesScrew or expand
With screwsYes
For tube diameterOther
Suitable for cable diameter (Min-Max)16-25 mm
Tube LockNo
Introduction from the backYes
Number of introductions6
MaterialPlastic
Halogen-freeNo
Surface treatmentNo treatment
ColourBlack
Protection Class (IP)IP40
Cover Versionnone
Fixing the coverOther
SealableNo
Circuit Integritynone
With shieldingNo
WindproofYes
Number of Clamp Poles0
Fixed clamp in positionNo
Lighting Hook FixtureNo
Nozzlenone
Impact resistanceIK04
Operating Temperature (Min-Max)-5-60 °C
Storage Temperature (Min-Max)-10-70 °C

ETIM for 080022L Junction and back boxes (EC002601)

Feature nameNumber of inlets (EF003593)
Feature value6
Feature nameFor tube diameter (EF005496)
Feature valueOther
Feature nameInner depth (EF001131)
Feature value40 mm
Feature namePipe locking (EF005657)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueHollow wall
Feature nameSealable (EF001454)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueNone
Feature nameInlet from the rear (EF005604)
Feature valueYes
Feature nameEquipped with (EF000557)
Feature valueNone
Feature nameSuitable for cable diameter (EF005466)
Feature value16 mm
Feature nameShape (EF000051)
Feature valueOval
Feature nameClamp position fixed (EF007889)
Feature valueNo
Feature nameModel (EF000010)
Feature valueDouble
Feature nameNumber of poles of the clamp (EF008016)
Feature value0
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueBlack
Feature nameConstruction type (EF000767)
Feature valueDevice connection box (round/square)
Feature nameWidth (EF000008)
Feature value72.8 mm
Feature nameCover attachment (EF004586)
Feature valueOther
Feature nameAir tight (EF005430)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameProvided with revolving ring (EF009204)
Feature valueNo
Feature nameDiameter (EF000551)
Feature value67 mm
Feature nameNozzle (EF008076)
Feature valueNone
Feature nameLuminaire hook mounting (EF004902)
Feature valueNo
Feature nameFor number of electric fittings (EF004702)
Feature value5
Feature nameLength (EF001438)
Feature value142 mm
Feature nameMounting switching equipment (EF004508)
Feature valueScrew or spread out
