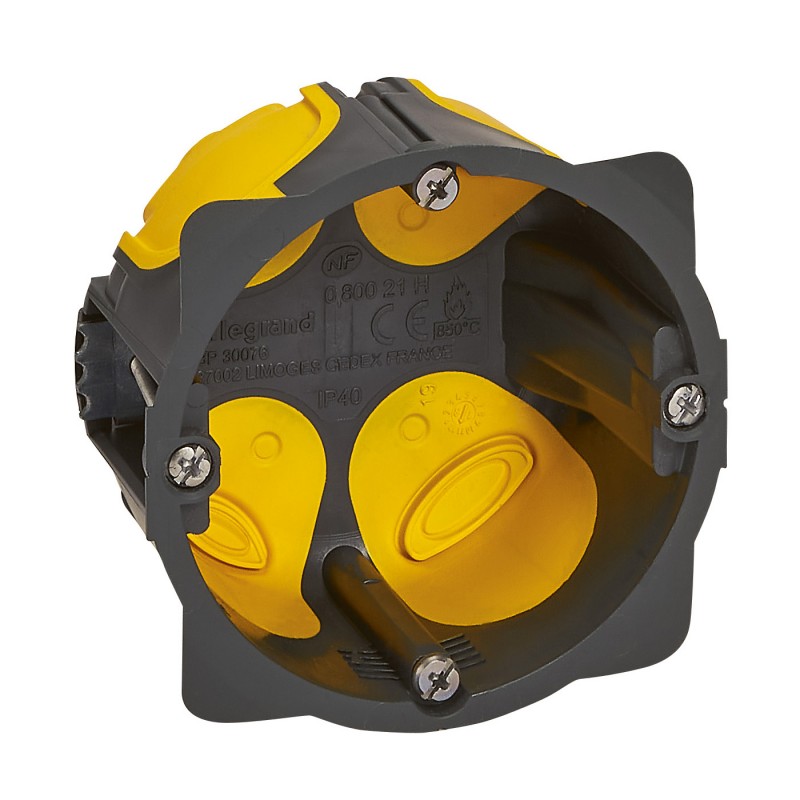

080021L LEGRAND BATIBOX ENERGY CX.SIMPLES P.40

The Ecobatibox recessed box is suitable for low-consumption (BBC) and passive homes and meets the requirements of RT 2012. It can be used with Ø 16mm and Ø 20mm shutters. It especially improves the energy performance of buildings by eliminating air flows generated by electrical infrastructure. Available in a single station or multi-station version in 40 or 50mm depth to adapt to all types of equipment. Multi-station enclosures can be installed horizontally or vertically and a removable separation is provided to isolate strong current from weak current. A canopy box also allows you to complete the answers to your needs on construction sites.

Type of mounting	Hollow wall
Form	Round
Construction Method	Device Connection Box (Round/Square)
Model	Unique
With rotary ring	No
Attachable	No
equipment	none
Diameter	67 mm
Longitude	71 mm
Width	71 mm
Internal depth	40 mm
For multiple device insertions	2
Assembling the devices	Screw or expand
With screws	Yes
Passage through the box by means of a blind lid	No
Passage through the box by membrane	Yes
Passage through the box by means of a fitting	No
Passage through the box by means of a graduated membrane procedure	No
For tube diameter	Other
Suitable for cable diameter (Min-Max)	16-25 mm
Tube Lock	No

Optional tube lock	No
Introduction from the back	Yes
Number of introductions	4
Material	Plastic
Halogen-free	No
Surface treatment	No treatment
Colour	Black
Protection Class (IP)	IP40
Cover Version	none
Fixing the cover	Other
Sealable	No
Circuit Integrity	none
With shielding	No
Windproof	Yes
Fixed clamp in position	No
Lighting Hook Fixture	No
Nozzle	none
Special Application	none
Impact resistance	IK04
Operating Temperature (Min-Max)	-5-60 °C
Storage Temperature (Min-Max)	-10-70 °C
