LEGRANDMOSAIC, ARTEOR AND CELIANE MECHANISMS078785 LEGRAND MO-BASE TV/R-SAT COVER

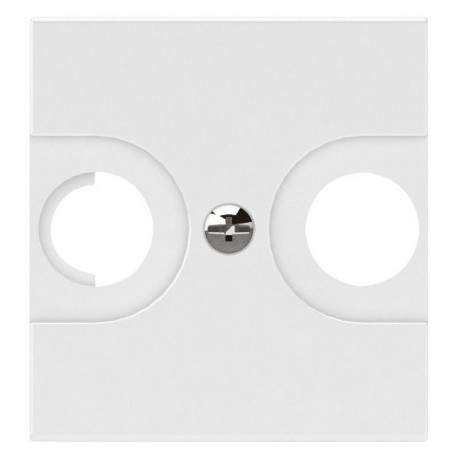

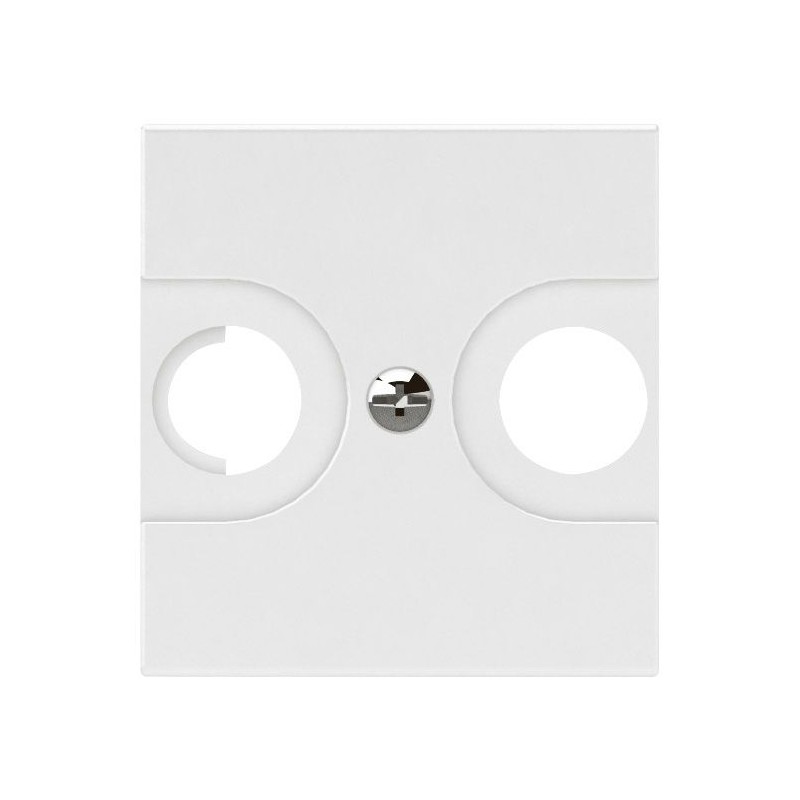

LEGRAND 078785 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

078785 LEGRAND MO-BASE TV/R-SAT COVER

Code: 078785

Manufacturer: LEGRAND

Description:

MO-BASE TV/R-SAT COVER
MO-CAP BASE TV/R-SAT
Lid for outlet TV/R/SAT - Mosaic - 2 modules - White
Mosaic Adapter for TV/R-SAT base - 2mod - White

Categories:

  • Domestic switching devices > Insert/cover for communication technology
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 55,02 €

Unit Price: 5,502 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Bases of television - Connector TV male and R-female 9.5 mm, Sat "F" - recommended Cable 17 V (attenuation 17 dB over 100 m) - Distribution of TV signals and radio according to regulations - Installation in star, according to normtiva - 2 modules Bases TV-R-SAT - Based attenuation less than 1.5 dB adapted to the reception DTT, satellite or wired network - TV 5 - 68 and 120 ? 862 MHz - FM 87,5 -108 MHz - Sat 950 ? 2400 MHz - Bases shielded class A and compatible with 4G/Lte - White

General characteristics

Mosaic - Bases of tv

ETIM for 078785 Domestic wiring accessories and controls (EC000018)

Feature nameWith dust cover (EF003893)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameWith imprint (EF004048)
Feature valueYes
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameLuster terminal (EF003868)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameWith strain relief (EF000878)
Feature valueNo
Feature nameSupport ring (EF005709)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameUtilization (EF000133)
Feature valueOther
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP41
Feature nameDevice depth (EF008810)
Feature value11 mm
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameImprintable label (EF001519)
Feature valueWithout indication field
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameAssembly arrangement (EF000005)
Feature valueInsert for modular wiring accessories
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameOutlet direction (EF000323)
Feature valueStraight
Feature nameColour (EF000007)
Feature valueWhite
