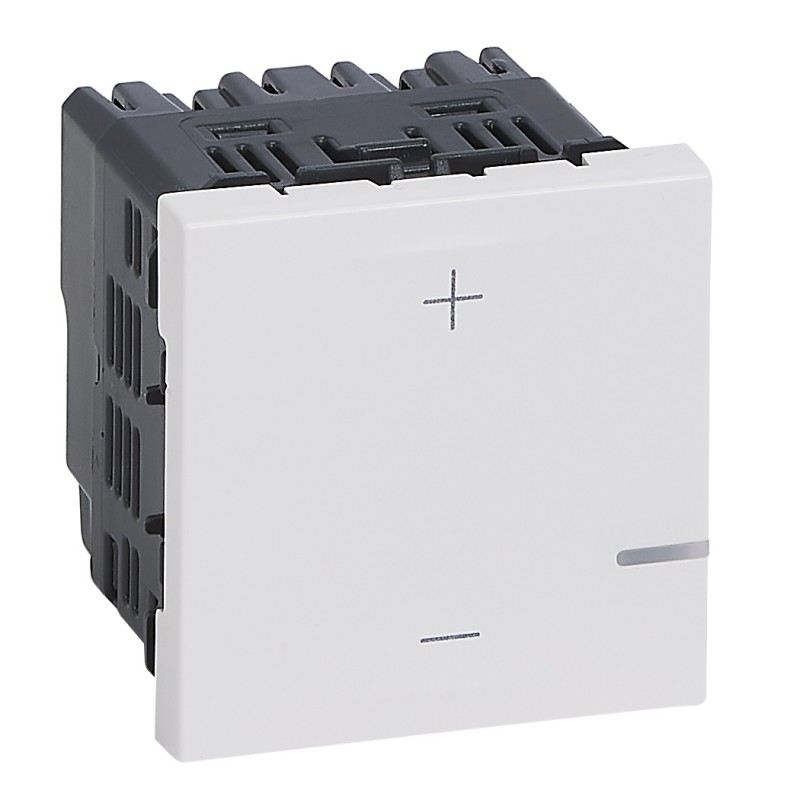

LEGRAND 078407A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

078407A LEGRAND MO-REGULA PULSA 2H 125W BL

Code: 078407A

Manufacturer: LEGRAND

Description:

MO-REGULA PULSA 2H 125W BL
DIM PULSA 2H 125W MOSAIC BL
Universal regulator without neutral 2 wires 125W, Mosaic - White

Categories:

  • Domestic switching devices > Dimmer
  • LEGRAND > MOSAIC, ARTEOR AND CELIANE MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 105,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Universal regulator without neutral 2 wires. Power: 125W. 110-230 V~ 50/60 Hz. White. Mosaic range. Screw fixing. With LED indicator. IK04 IP20. PC material.

description
Universal dimmer. Upper and lower lighting regulation.
These products allow the control and variation of all types of lamps. It supports all "dimmable" type bulbs on the market, LED, halogen, fluocompact, etc. It allows you to create a bright environment while reducing energy consumption. They can be associated with one or more neon-free pushbuttons, each pushbutton then allows the on/off/regulation functions. The light gradually turns on and off. The lights are turned back on with the same level of illumination as before their last switch-off.
It is used:
- in light mode (indicator).
- In state memory mode.
- in ascending mode, descending depending on the load (see load tables in the technical sheet).
Easy installation thanks to its reduced size, depth 25mm. It is installed in a box at least 40 mm deep.
Fixing with screws.

specifications

Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Type of operationPush button
Number of modules (in case of modular design)2
App control via BluetoothNo
Upward phase cut-off controlYes
Phase Down Cutoff ControlYes
Dimmer as standardNo
Load TypeUniversal and LED retrofit
Input ExtensionsYes
Luminous value memoryYes
Can be used with a buttonYes
Usable with motion detectorNo
Usable with presence detectorNo
Usable with timerNo
Usable with radio buttonNo
Usable with IR buttonNo
Attachment TypeClick fixation
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishBright
ColourWhite
RAL number (similar)9003
TransparentNo
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Nominal Voltage110-230 V
frequency50-60 Hz
Control voltage110-230 V
Capacitive load power rating3-125 W
Resistive Load Power Rating5-125 VA
Inductive load power rating3-125 VA
Maximum LED power125 W
Connection MethodScrew-on terminal
Core cross-section1.5-2.5 mm²
Device width45 mm
Device height45 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Installation Depth33 mm
Operating Temperature5-35 °C
Storage temperature0-45 °C
Type of voltageAC
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Antibacterial treatmentNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid

ETIM for 078407A Domestic wiring accessories and controls (EC000025)

Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameType of fastening (EF002442)
Feature valueClick in
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameCore cross section (EF007572)
Feature value1.5 mm²
Feature nameControl voltage (EF006144)
Feature value110 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameMin. brightness controllable (EF016708)
Feature valueYes
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameApplicable with infrared button (EF003908)
Feature valueNo
Feature nameApplicable with presence indicator (EF003909)
Feature valueNo
Feature nameType of load (EF001508)
Feature valueUniversal and LED Retrofit
Feature nameApplicable with movement sensor (EF003906)
Feature valueNo
Feature nameApplicable with transmission button (EF003907)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameLight value memory (EF003867)
Feature valueYes
Feature nameSerial dimmer (EF003889)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameNominal voltage (EF005127)
Feature value110 V
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameDevice depth (EF008810)
Feature value45 mm
Feature nameNominal power resistive load (EF012754)
Feature value3 W
Feature nameNominal power inductive load (EF012755)
Feature value3 VA
Feature nameNominal power capacitive load (EF012756)
Feature value3 VA
Feature nameApp control via Bluetooth (EF012536)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameDimming phase cut-on (leading edge) (EF012162)
Feature valueYes
Feature nameMax. switching power LED (EF015953)
Feature value125 W
Feature nameDevice width (EF008808)
Feature value45 mm
Feature namePower consumption (EF000346)
Feature value0.3 W
Feature nameApplicable with time switch/timer (EF003911)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameApplicable with button (EF003910)
Feature valueYes
Feature nameMethod of operation (EF000006)
Feature valuePush button
Feature nameDimming phase cut-off (trailing edge) (EF012161)
Feature valueYes
