LEGRANDSOLIROCO MECHANISMS077826 LEGRAND SL-IR SENSOR 2H 250W

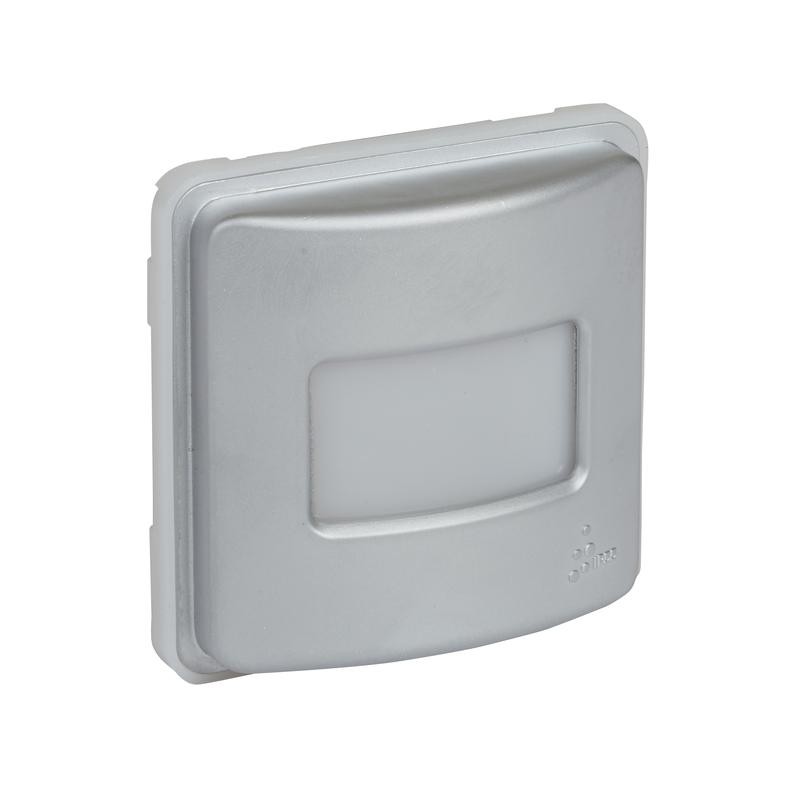

LEGRAND 077826 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

077826 LEGRAND SL-IR SENSOR 2H 250W

Code: 077826

Manufacturer: LEGRAND

Description:

SL-IR SENSOR 2H 250W
Automatic switch Soliroc without neutral - 2-wire - IP55 IK10
Infrared Motion Detector - 2 Wires

Categories:

  • Domestic switching devices > Movement sensor complete
  • LEGRAND > SOLIROCO MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.677
  • Weight (g)203.00
Product characteristics
Automatic switches - IK 10 - IP 55
  • Infrared detection
  • Detection distance: 8 m
  • Detection angle: 120°
  • Light level threshold: 5 to 1275 lux
  • Adjustable time delay: 10 s to 10 min
  • Should preferably be installed in box depth 50 mm
Without neutral, 2-wire
  • For installation in place of a 1-gang switch,with no additional wiring
  • For controlling lamps :
    • LEDs: 3 to 100 W
    • compact fluorescent: 3 to 100 W
    • LEDs, CFLs, halogen, fluorescent tube with ferromagnetic or electronic ballast: 3 to 250 V~
    • 230 V halogen, incandescent lamps: 3 to 250 W
  • Option of connecting up to 3 automatic switches in parallel
  • For LED and compact fluorescent lamps, if several automatic switches are installed on the same circuit, the minimum load increases
  • Consumption on standby: 0.02 W
General characteristics
Soliroc™ - control mechanisms IK 10
  • Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
  • High resistance to IK 10 impacts and humidity
  • 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
  • Mechanisms supplied with cover plates, to be equipped with support frames and plates

ETIM for 077826 Domestic wiring accessories and controls (EC000133)

Feature nameHeight (EF000040)
Feature value70.5 mm
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameBridging switch (EF001099)
Feature valueNo
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameMin. switch-on time (EF006589)
Feature value10 s
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value120 °
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNetworkable (EF003904)
Feature valueNo
Feature nameResponse value sensitivity adjustable (EF003429)
Feature valueNo
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameModel (EF000010)
Feature valueMovement sensor
Feature nameWith alarm function (EF005624)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value1.2 m
Feature nameMax. duty cycle (EF006590)
Feature value10 min
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameWith acoustic sensor (EF017675)
Feature valueNo
Feature nameBackground monitoring (EF017674)
Feature valueNo
Feature nameConnection cable length (EF003636)
Feature value0 mm
Feature nameDepth (EF000049)
Feature value31 mm
Feature nameTemperature (EF001731)
Feature value-5 °C
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameSuitable for C-load (EF003832)
Feature valueYes
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value70.5 mm
Feature nameWith connection cable (EF005036)
Feature valueNo
Feature nameScan angle (EF004101)
Feature value120 °
Feature nameWith signal unit (EF003890)
Feature valueNo
Feature nameSuitable for wireless transmission (EF001198)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueYes
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameDim function with dimmer basic element (EF003808)
Feature valueNo
Feature nameMax. switching power (EF001503)
Feature value250 W
Feature nameForced switch off (EF003920)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueOther
Feature nameDiameter reach on floor (EF003843)
Feature value6 m
Feature nameFrequency (EF000416)
Feature value47 Hz
Feature nameBuilt-in depth (EF000218)
Feature value31 mm
Feature nameRemote operation (EF003848)
Feature valueNo
Feature nameSwitch-off delay (EF000194)
Feature value0 s
Feature namePivoting range sensor, vertical (EF009567)
Feature value0 °
Feature nameConstant light control (EF003863)
Feature valueNo
Feature namePivoting range sensor, horizontal (EF009566)
Feature value0 °
Feature nameWith DALI interface (EF009569)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature nameMax. reach sideways (EF001323)
Feature value6 m
Feature nameNumber of switching zones (EF009568)
Feature value1
Feature nameMax. reach frontally (EF001322)
Feature value8 m
Feature nameSwitching-on delay (EF000193)
Feature value0 s
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameResponse value luminosity (EF003814)
Feature value5 lx
Feature nameHVAC-control (EF003858)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
077826 EN_077826.pdf
136 Kbytes
