LEGRANDRJ45 CONNECTORS076502 LEGRAND MOSAIC RJ45X2 C5 UTP 2M 45D

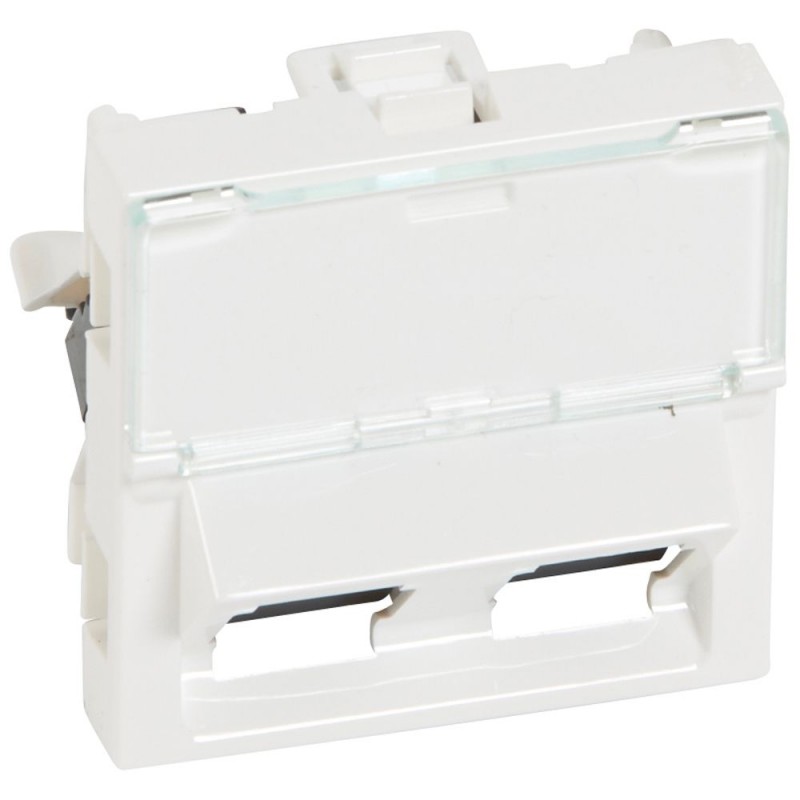

LEGRAND 076502 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

076502 LEGRAND MOSAIC RJ45X2 C5 UTP 2M 45D

Code: 076502

Manufacturer: LEGRAND

Description:

MOSAIC RJ45X2 C5 UTP 2M 45D
Double RJ45 socket inclined 45° category 5e UTP 2 modules Mosaic white

Categories:

  • Data and telecommunication > Data communication connection box copper (twisted pair)
  • LEGRAND > RJ45 CONNECTORS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 60,18 €

Unit Price: 12,037 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Surface mountingNo
Flush mountingYes
Duct InstallationYes
Ground-mounted/underground boxYes
Attachment TypeLock in position
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Connector TypeRJ45 8(8)
With sockets/couplingsYes
Suitable for the number of sockets/couplings2
category5E
ColourWhite
RAL number9003
Connection MethodInsulation Displacement Connector
Shielded plugsNo
Separate grounding connectionNo
With text boxYes
Separate cable strain reliefNo
Shielding Connection Mount Typenone
Exit AddressInclined
With dust protectionNo
Protection Class (IP)IP20
Color codingYes
Device width45 mm
Device height45 mm
Device Depth40.7 mm
Number of modules (in case of modular design)2
Installation Depth25.1 mm
Impact resistanceIK03
Operating Temperature-40-70 °C
Storage temperature-40-70 °C
Display of markings on the connection terminalsYes
Halogen-freeYes
Antibacterial treatmentNo
Tube diameter for wall-mounted product0-0 mm
Maximum cable entry diameter9 mm
Type of cable entry feedthroughsNot applicable
Distance between vertical clamping centers0-0 mm
Distance between horizontal clamping centers0-0 mm
Cable HolderNot applicable

ETIM for 076502 Data networking products (EC001264)

Feature nameDuct installation (EF002440)
Feature valueYes
Feature nameWith dust cover (EF003893)
Feature valueNo
Feature nameColour coding (EF007758)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWith label space (EF003456)
Feature valueYes
Feature nameShielded buses (EF002444)
Feature valueNo
Feature nameSeparate earthing connection (EF002500)
Feature valueNo
Feature nameConnection type (EF000124)
Feature valueInsulation displacement connector
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameFloor box/subfloor mounted (EF003455)
Feature valueYes
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameType of connector (EF002935)
Feature valueRJ45 8(8)
Feature nameSurface mounting (EF003681)
Feature valueNo
Feature nameSeparate strain relief (EF002450)
Feature valueNo
Feature nameMounting method shielding connection (EF002497)
Feature valueNone
Feature nameDevice depth (EF008810)
Feature value40.7 mm
Feature nameWith buses/couplings (EF005043)
Feature valueYes
Feature nameCategory (EF001619)
Feature value5E
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameOutlet direction (EF000323)
Feature valueInclined
Feature nameColour (EF000007)
Feature valueWhite
Feature nameSuitable for number of connectors (EF001579)
Feature value2
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
