LEGRAND069898L LEGRAND PL-COMP I/O CONM PERS 10A ANT

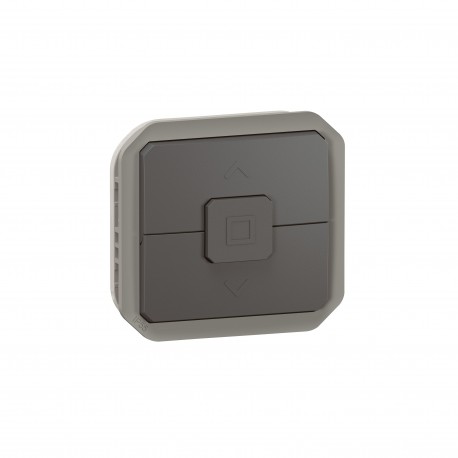

LEGRAND 069898L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069898L LEGRAND PL-COMP I/O CONM PERS 10A ANT

Code: 069898L

Manufacturer: LEGRAND

Description:

PL-COMP I/O CONM PERS 10A ANT
Double direct mechanism switch motor/shutter Plexo modular anthracite
Plexo modular double motor/shutter switch - Anthracite

Categories:

  • Domestic switching devices > Venetian blind switch/-push button
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 68,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

3-position 6AX switch for direct motor control of blinds or awnings for areas where water and dust protection is needed (IK55). Composable product for surface or recessed installation.

Product features
  • Plexo composable shutter switch - Anthracite
  • IP55 - IK06
  • 10A - 250V
  • To control the roller shutter motor
  • To be installed with a frame for flush-mounted installation or in a surface box
description
Plexo modular shutter switch - Anthracite. Shutter and awning control - IP 55 - IK 06 - For direct control of shutter motor - 6AX - 250V - 500W max - emergency cut, beacon, blinds, thermostat.

Highlights

Advantages in installation
  • Roller Shutter Command

specifications

Type of mountingBasic Element with Center Cover Plate, Others
ModelOther
Number of poles1
Type of operationOther
Mechanically DrivenYes
Electronically operatedNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Attachment TypeOther
Connection MethodPlug clamp
ColourAnthracite
RAL number (similar)7016
TransparentNo
Label Space/Print AreaNo
Suitable for protection grade (IP)IP55
Nominal current6 A
Nominal Voltage250 V
Number of buttons3
Device width70.5 mm
Device height70.5 mm
Device Depth40 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Impact resistanceIK06
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Display of markings on the connection terminalsYes
Antibacterial treatmentNo
Terminal capacity1.5-2.5 mm²
Core cross-section1.5-2.5 mm²
Contains battery and/or accumulatorNo

ETIM for 069898L Domestic wiring accessories and controls (EC000044)

Feature nameMechanical controllable (EF005993)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of buttons (EF003144)
Feature value3
Feature nameRAL-number (similar) (EF003882)
Feature value7016
Feature nameModel (EF000010)
Feature valueOther
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value40 mm
Feature nameElectronic controllable (EF006570)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameRated current (EF000227)
Feature value6 A
Feature nameColour (EF000007)
Feature valueAnthracite
Feature nameMethod of operation (EF000006)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
069898L EN_069538L.pdf
705 Kbytes
