LEGRAND069839L LEGRAND PL-COMP I/O 2P+T TORN ANT.

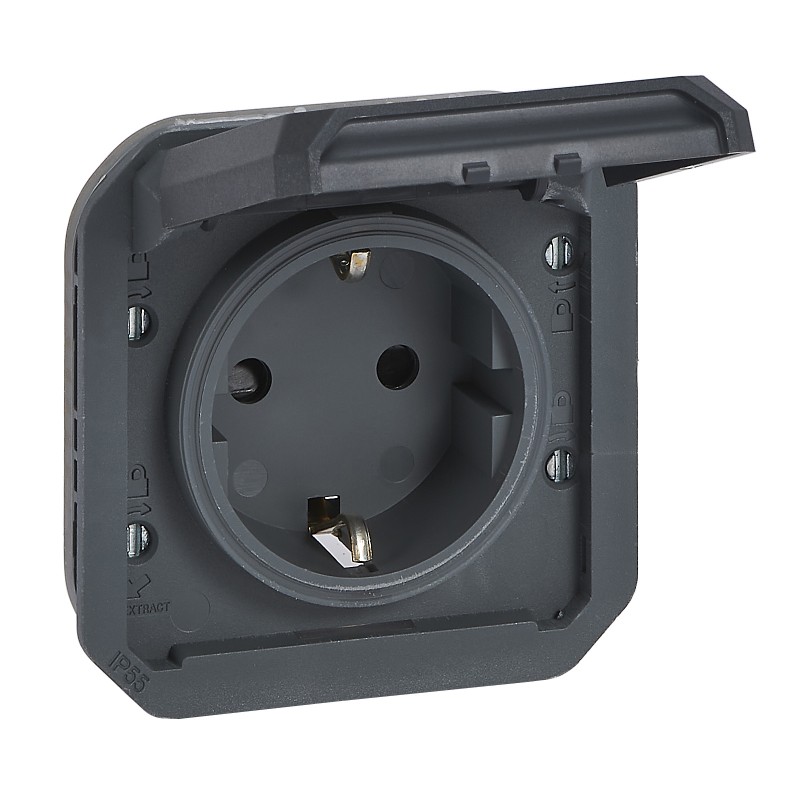

LEGRAND 069839L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069839L LEGRAND PL-COMP I/O 2P+T TORN ANT.

Code: 069839L

Manufacturer: LEGRAND

Description:

PL-COMP I/O 2P+T TORN ANT.
Plexo IP 55 Modular Power Base - 2P+T - Anthracite - Screw terminal
Plexo modular power base IP55 -2P+T-terminal torn-Anthracite

Categories:

  • Domestic switching devices > Socket outlet
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 243,20 €

Unit Price: 24,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for surface or recessed installation.

Product features
  • 2P+E power base with side ground contact - Screw terminal - Anthracite
  • 16 A - 250 V~ - IP55 - IK08
description
Base 2 poles+modular ground Plexus - Anthracite. 16A power bases - 250 V~ - With 2P+T side earth contact - Terminal with screws - Gray - IP 55 watertight mechanisms - composable - power bases and differential bases - The mechanisms are supplied with finish front - Installation with surface boxes or with recessed support plates.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodScrew-on terminal
With flip-top lidYes
With enhanced contact protectionYes
ColourAnthracite
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingOther
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDEYes
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo

ETIM for 069839L Domestic wiring accessories and controls (EC000125)

Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value16 A
Feature nameRotated central insert (EF001331)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameSpecial power supply (EF001334)
Feature valueEV006426
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameFault current protection (EF001333)
Feature valueNo
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of modules (module system) (EF009573)
Feature value2
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameEject-mechanism (EF001051)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of ports USB-C (EF017049)
Feature value0
Feature nameImprint/indication (EF003823)
Feature valueDegree of protection (IP)
Feature nameWith hinged lid (EF000117)
Feature valueYes
Feature nameNumber of ports USB-A (EF000997)
Feature value0
Feature nameMetallic colour (EF015260)
Feature valueNo
Feature nameWith Wi-Fi signal repeater (EF013509)
Feature valueNo
Feature nameModel (EF000010)
Feature valueSocket outlet CEE 7/3 (type F)
Feature nameNumber of socket outlets switchable (EF008814)
Feature value0
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value46 mm
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameNumber of active contacts (square) (EF017115)
Feature value0
Feature nameProtective contact (EF017116)
Feature valueOther
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameColour (EF000007)
Feature valueAnthracite
Feature nameFor heavy conditions according to VDE (EFDE0005)
Feature valueYes
Feature nameNumber of active contacts (flat) (EF011999)
Feature value0
Feature nameNumber of active contacts (round) (EF011998)
Feature value2
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWith orientation lighting (EF008862)
Feature valueNo
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameConcurrently switching neutral conductor (EF005997)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameType of fastening (EF002442)
Feature valueMounting with screw
Feature nameWith function lighting (EF008861)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameInsulated mounting (EF001588)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameCompliant with UK Building Regulations Part M (EFUK0017)
Feature valueNo
Feature nameNumber of phases (EF000351)
Feature value1
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameLockable (EF000113)
Feature valueNo
Feature nameWith built-in bluetooth speaker (EF016914)
Feature valueNo
Feature nameWith miniature fuse (EF006571)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameWith enhanced contact protection (EF000389)
Feature valueYes
Feature nameWith loop through function (EF006604)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
069839L EN_069733L.pdf
939 Kbytes
