LEGRAND069687L LEGRAND PL-COMP EMP MARCO 3 ELE H/V GR
LEGRAND 069687L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

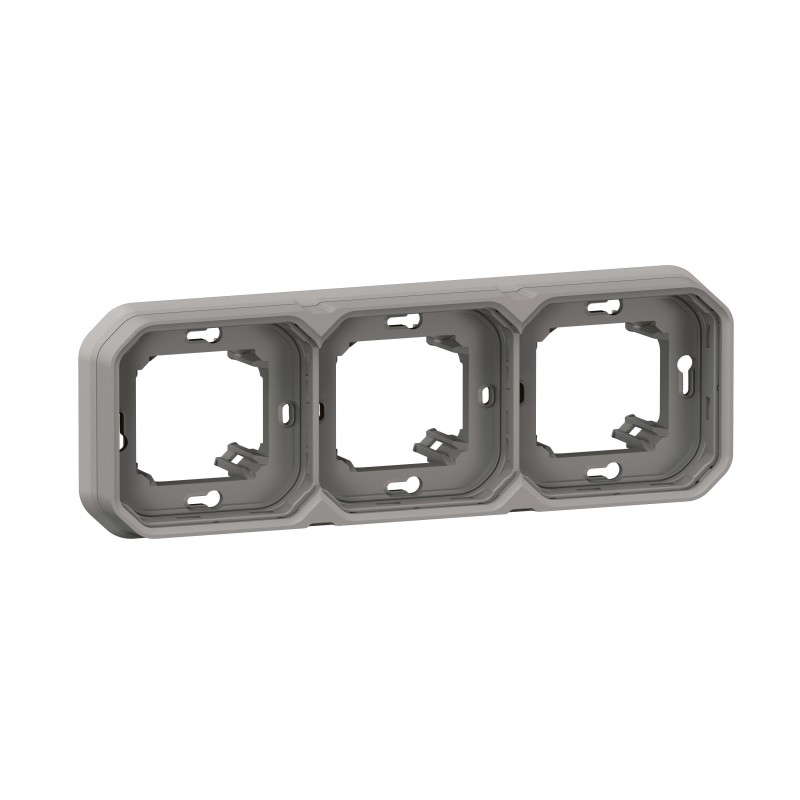

069687L LEGRAND PL-COMP EMP MARCO 3 ELE H/V GR

Code: 069687L

Manufacturer: LEGRAND

Description:

PL-COMP EMP MARCO 3 ELE H/V GR
Plexo modular recessed frame grey - 3 horizontal or vertical elements
Plexo modular recessed frame - 3 elements - Gray

Categories:

  • Domestic switching devices > Cover frame for domestic switching devices
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 236,22 €

Unit Price: 47,243 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Recessed frame for Plexo composable mechanisms for horizontal or vertical installation

Product features
  • Plexo composable recessed frame - Gray
  • IP55 - IK08 - 3 horizontal or vertical elements
  • For the installation of recessed mechanisms with Batibox enclosures - 71 mm wheelbase
description
Recessed frame horizontal or vertical 3 elements Plexo gray. Plate supports - For installation of the devices in recessed with Batibox boxes 3 horizontal or vertical elements - Between axis 71mm - Waterproof mechanisms IP 55 - composable - Admits modular mechanisms - IK 08.

Highlights

Advantages in use
  • For composable mechanisms

specifications

Number of Units3
Assembly DirectionHorizontal and vertical
Number of horizontal units3
Number of vertical units1
Number of modules horizontally (in case of modular design)6
Number of vertical modules (in case of modular design)1
With mounting frameNo
Flush mountingYes
Suitable for underfloor ductingNo
Suitable for device installation conduitNo
Label Space/Print AreaNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
TransparentNo
With flip-top lidNo
Attachment TypeThread fastening
Width227 mm
Height85 mm
Depth43.5 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Wood species in LatinNot applicable
Wood certification (list)Not applicable
Climate zone of the origin of the woodNot applicable

ETIM for 069687L Domestic wiring accessories and controls (EC000007)

Feature nameHeight (EF000040)
Feature value85 mm
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameNumber of modules vertical (module system) (EF009572)
Feature value1
Feature nameNumber of modules horizontal (module system) (EF009571)
Feature value6
Feature nameMounting direction (EF003824)
Feature valueHorizontal and vertical
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of units vertical (EF008859)
Feature value1
Feature nameNumber of units (EF000074)
Feature value3
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameNumber of units horizontal (EF008858)
Feature value3
Feature nameSuitable for subfloor installation duct box (EF005864)
Feature valueNo
Feature nameWith mounting grid (EF012039)
Feature valueNo
Feature nameSuitable for wall duct (EF006572)
Feature valueNo
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameDepth (EF000049)
Feature value43.5 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameFlush-mounted installation (EF007517)
Feature valueYes
Feature nameWidth (EF000008)
Feature value227 mm
