LEGRAND069583L LEGRAND PL-COMP BEACON PILOT I/O

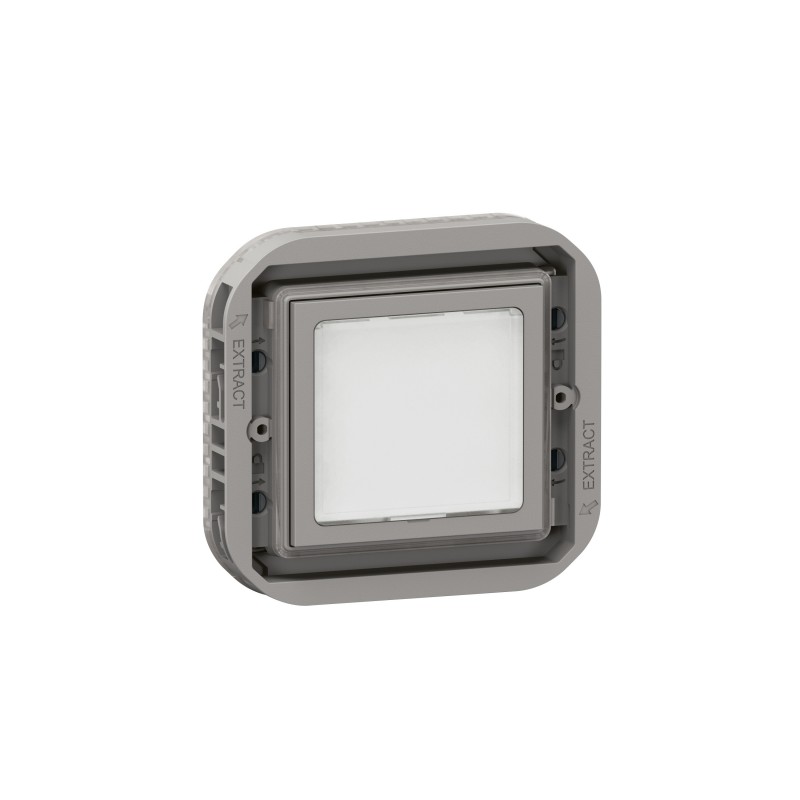

LEGRAND 069583L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069583L LEGRAND PL-COMP BEACON PILOT I/O

Code: 069583L

Manufacturer: LEGRAND

Description:

PL-COMP BEACON PILOT I/O
Plexo modular gray/white beacon pilot - for E10 lamp - 230 V
Plexo modular beacon pilot for E10 lamp - 230V - Gray/White

Categories:

  • Domestic switching devices > Information light signal for domestic switching devices
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 493,56 €

Unit Price: 49,356 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Plexo pilot that allows beacon lighting such as a corridor, a staircase... For installation requiring protection against water and dust.

Product features
  • Composable Plexo Signal Pilot - Grey/White
  • IP55 - IK08
  • 2 power levels available (0.2W or 1W
  • Screw terminal
  • Supports diffuser references 0 695 88L/89L/90L/91L
description
Modular PLEXO signaling light. Beaconing and signaling - IP 55 - IK 08 pilot - Mechanism that integrates the LEDs - 2 available power levels (0.2W or 1W) - Terminal with screws - Compatible with diffusers ref. 0 695 88L/89L/90L/91L - Gray/White. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.

Highlights

Advantages in use
  • Signage

specifications

Type of mountingOther , Other
Lamp holdernone
With light sourceYes
LampNon-interchangeable LED
With flashing lightNo
With fixed symbol/printingNo
With interchangeable symbolNo
Can be used as a pushbuttonNo
Attachment TypeThread fastening
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7040
TransparentNo
Lamp colorWhite
Suitable for protection grade (IP)IP55
Nominal Voltage230 V
Lamp power max.1 W
Device width68.5 mm
Device height68.5 mm
Device Depth41.2 mm
Impact resistanceIK07
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Label Space/Print AreaNo

ETIM for 069583L Domestic wiring accessories and controls (EC000064)

Feature nameMax. lamp power (EF000260)
Feature value1 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameType of fastening (EF002442)
Feature valueScrew mounting
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value230 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameColour light source (EF001402)
Feature valueWhite
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameWith fixed symbol/imprint (EF007949)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value7040
Feature nameWith flashlight (EF006575)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value41.2 mm
Feature nameDevice width (EF008808)
Feature value68.5 mm
Feature nameAssembly arrangement (EF000005)
Feature valueOther
Feature nameApplication as button (EF003912)
Feature valueNo
Feature nameDevice height (EF008809)
Feature value68.5 mm
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWith exchangeable symbol (EF006748)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
069583L EN_069583L.pdf
635 Kbytes
