LEGRAND069504L LEGRAND PL-COMP I/O INT TEMP 1000W GR

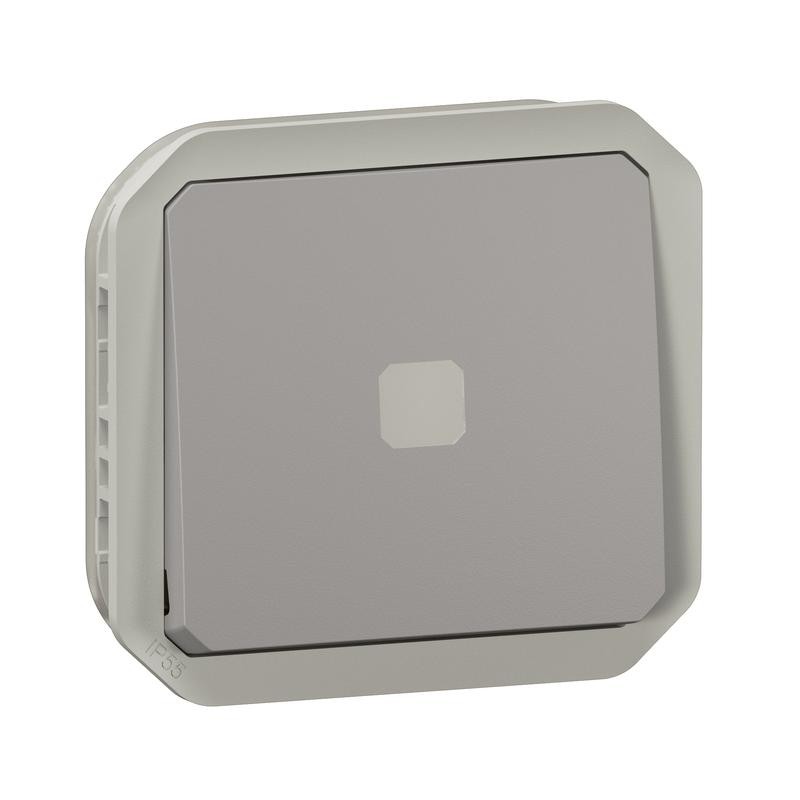

LEGRAND 069504L - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

069504L LEGRAND PL-COMP I/O INT TEMP 1000W GR

Code: 069504L

Manufacturer: LEGRAND

Description:

PL-COMP I/O INT TEMP 1000W GR
Luminous timed switch Plexo modular gray - 230V - 50/60 Hz
Plexo modular luminous timer switch - Gray

Categories:

  • Domestic switching devices > Time switch for domestic switching devices
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 175,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Plexo's lumininous timed 1-way switch allows lighting control in installations that require protection against water and dust (IP55). Adjustable timing. Modular for surface/recessed installation.

Product features
  • Plexo Composable Luminous Timer Switch - Gray - To be installed with a frame for recessed installation or in a surface box.
  • IP55 - IK07 - 230V - 50Hz to 60Hz
  • Screw terminal - Electronic - 2 wires - Equipped with lamp
  • Adjustable timing from 25s to 15mn - 1000W incandescent - 400W halogen 130V - 1840W resistive (heating) - 400VA fluorescent and 400VA low voltage halogen - 100W LED
  • Mechanism supplied with trim
description
Plexo modular timer switch - Gray - Luminous timed switches 230V - 50/60 Hz - IP 55 - IK 07 - Screw fitting - Electronics - 2 wires - Equipped with LED - Adjustable timing from 25 s to 15 min - 1000 W in incandescent - 400 W in halogen 130V - 1840 W resistive (heating) - 400VA fluorescent and 400VA halogen MBT - Composable - switches, pushbuttons and automatic switches - The mechanisms are supplied with finished front - Installation with surface boxes or recessed support plates

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Type of mountingBasic Element with Center Cover Plate, Others
Number of contacts normally opened1
Number of Normally Closed Contacts0
Number of investor contacts0
ModelElectronic
Time adjustment0.25-15 min
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Surface FinishMate
ColourGrey
RAL number (similar)7046
TransparentNo
Suitable for protection grade (IP)IP55
Nominal Voltage250 V
frequency50-60 Hz
Astronomical programNo
Input ExtensionsNo
Nominal current8 A
With brightness sensor connectionNo
Maximum power300 W
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Device width70.5 mm
Device height70.5 mm
Device Depth44 mm
Impact resistanceIK07
Operating Temperature0-35 °C
Storage temperature-25-60 °C
Type of voltageAC
Halogen-freeYes
Connection MethodScrew-on terminal
Terminal capacity1.5-2.5 mm²
Contains battery and/or accumulatorNo

ETIM for 069504L Domestic wiring accessories and controls (EC001594)

Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameWith brightness sensor connection (EF003872)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameMax. power (EF001309)
Feature value300 W
Feature nameRAL-number (similar) (EF003882)
Feature value7046
Feature nameModel (EF000010)
Feature valueElectronic
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP55
Feature nameDevice depth (EF008810)
Feature value44 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameDevice width (EF008808)
Feature value70.5 mm
Feature nameAstro program (EF000224)
Feature valueNo
Feature nameTime setting (EF001038)
Feature value0.25 min
Feature nameDevice height (EF008809)
Feature value70.5 mm
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameRated current (EF000227)
Feature value8 A
Feature nameColour (EF000007)
Feature valueGrey

DATASHEET - PDF

Title
Size
Type
069504L EN_069504L.pdf
700 Kbytes
