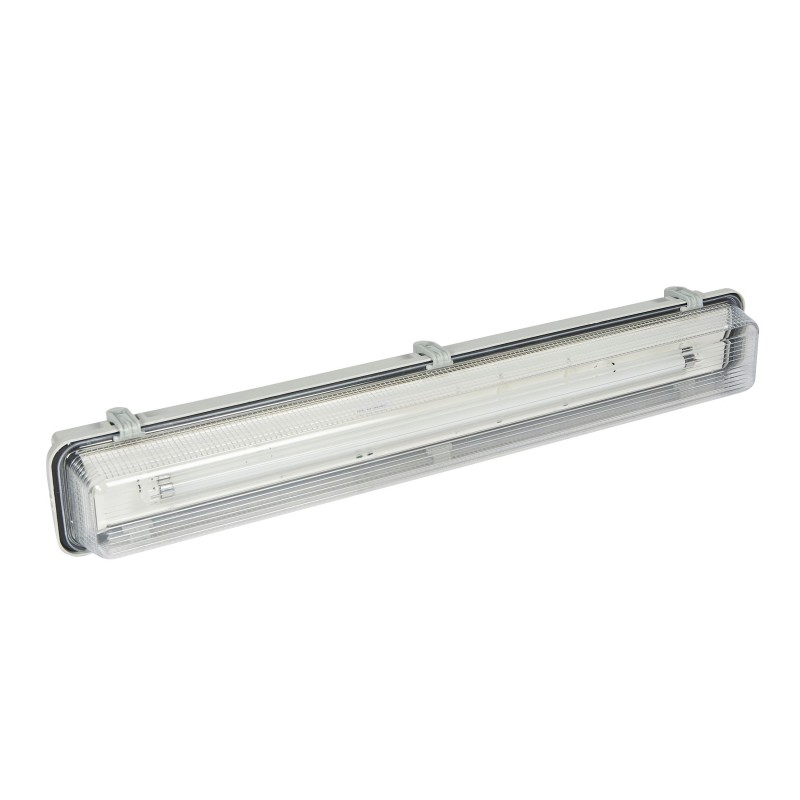

LEGRAND 061847 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061847 LEGRAND NFL65 800LUM 1H IP65 NP

Code: 061847

Manufacturer: LEGRAND

Description:

NFL65 - 800LUM 1H IP65 NP
Luminaire emergency NFL65 - 660 lumens - 1h - IP65 - Non-permanent
NFL65 Emergency Luminaire - 800 lumens - 1h - IP65 - NP

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > WATERTIGHT EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product features

Luminaire, emergency standard - Non-permanent (NP) - 660 lumens - Autonomy 1 hour - IP65 - Lamp TL13W - Battery-Ni-Cd - The test of maintenance is carried out manually

General characteristics

NFL65 - Luminaires for emergency watertight - Made according to the standards UNE-EN 60598-2-22 and UNE 20392 - Luminaires non-permanent - IP 65 - IK 07 - Power supply: 230 V ± 10 % - 50/60 Hz. Class I - 2 Leds green witness of load - Connection terminals large screw capacity for 2 cables of 2,5mm2, both for food as the remote control. - Terminals for remote operation to set at rest - Material of the enclosure self-extinguishing - 2 entries for cable Ø 20 mm (1 each side) - Supplied with 2 cones - Installation in surface

ETIM for 061847 Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value2.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueFluorescent lamp
Feature nameMounting method (EF000003)
Feature valueWall surface mounted
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameMaterial cover (EF004284)
Feature valuePlastic structured
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value80 W
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value800 lm
Feature nameNumber of lighting heads (EF004258)
Feature value1
Feature nameNominal current (EF009345)
Feature value350 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueNone
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueI
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameHeight/depth (EF001456)
Feature value110 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value116 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameLuminous flux in standby mode (EF011954)
Feature value0 lm
Feature nameSuitable for labelling type (EF001277)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameType of indicator (EF001278)
Feature valueSingle-sided
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameHousing colour (EF000136)
Feature valueWhite
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting/signage
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueNiCd
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameSuitable for standby switching (EF017055)
Feature valueYes
Feature nameLength (EF001438)
Feature value666 mm
