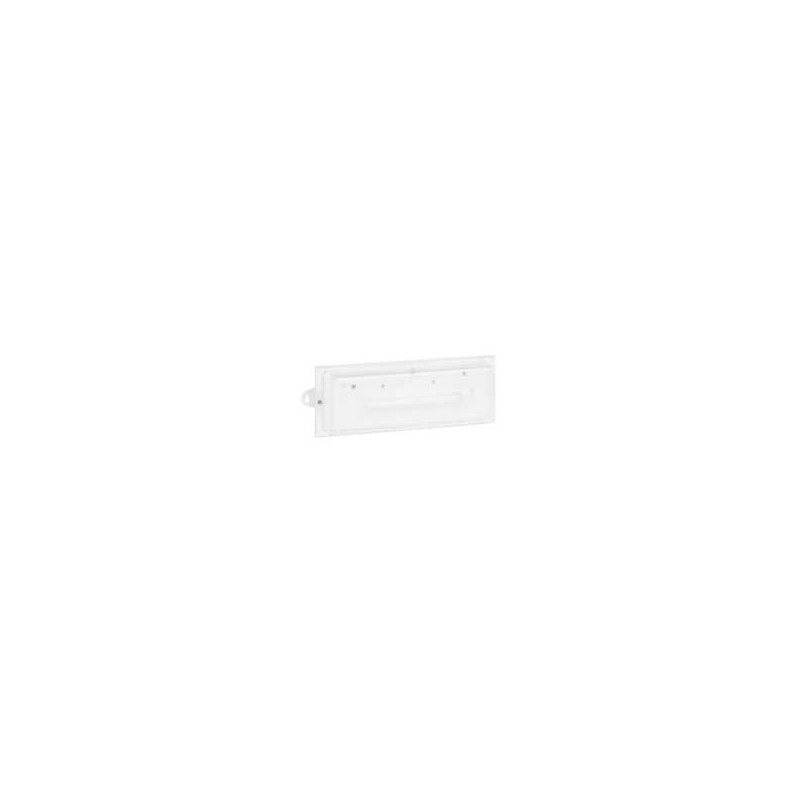

LEGRAND 061833 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061833 LEGRAND NT65 715LUM 1H IP65 NP

Code: 061833

Manufacturer: LEGRAND

Description:

NT65 - 715LUM 1H IP65 NP
Luminaire emergency NT65 - 715 lumens - 1h - IP65 - Non-permanent
NT65 Emergency Luminaire - 715 lumens - 1h - IP65 - NP

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > WATERTIGHT EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product features

Luminaire, emergency standard - Non-permanent (NP) - 715 lumens - Autonomy 1 hour - IP65 - Lamp PL11W - Battery-Ni-Cd - The test of maintenance is carried out manually

General characteristics

NT65 - Luminaires for emergency watertight - Made according to the standards UNE-EN 60598-2-22 and UNE 20392 - Luminaires non-permanent and multi - IP 65 - IK 07 - Power supply: 230 V ± 10 % - 50/60 Hz. Class I - 2 Leds green witness of load - Connection terminals large screw capacity for 2 cables of 2,5mm2, both for food as the remote control. - Terminals for remote operation to set at rest - the Protection of the network using the electronic device - automatic Material of bse in sheet metal stamping - 2 entries for cable Ø 20 mm - Supplied with plug and cable gland - Installation in surface

ETIM for 061833 Luminaires (EC001957)

Feature nameLamp type (EF002423)
Feature valueFluorescent lamp
Feature nameMounting method (EF000003)
Feature valueWall surface mounted
Feature nameMaterial cover (EF004284)
Feature valuePlastic structured
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value75 W
Feature nameColour temperature (EF009346)
Feature value4000 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value750 lm
Feature nameNominal current (EF009345)
Feature value330 mA
Feature nameMonitoring equipment (EF008091)
Feature valueNone
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueI
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameHeight/depth (EF001456)
Feature value134 mm
Feature nameWidth (EF000008)
Feature value134 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameSuitable for labelling type (EF001277)
Feature valueSticker
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameType of indicator (EF001278)
Feature valueSingle-sided
Feature nameHousing colour (EF000136)
Feature valueWhite
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueNiCd
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameSuitable for standby switching (EF017055)
Feature valueYes
Feature nameLength (EF001438)
Feature value405 mm
