LEGRAND058002 LEGRAND GREEN UP PLA 22 M3 1P PROT

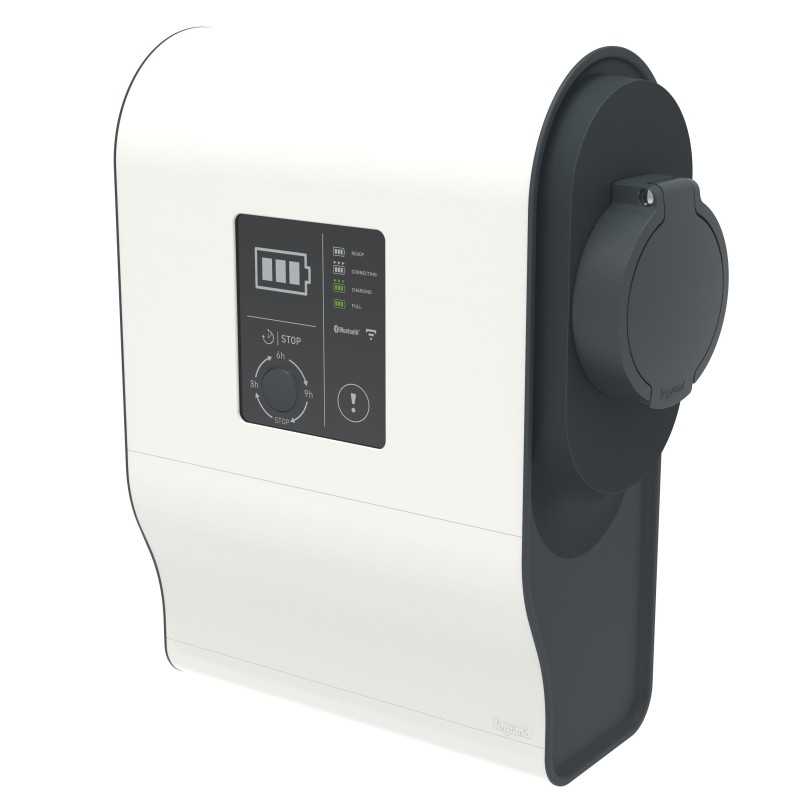

LEGRAND 058002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

058002 LEGRAND GREEN UP PLA 22 M3 1P PROT

Code: 058002

Manufacturer: LEGRAND

Description:

GREEN UP PLA 22 M3 1P PROT
GREEN UP PLAST 22 M3 3P PROT
Green'up Premium plastic three-phase charging station with DC protection - Mode 3 for 1 vehicle 22kW 32A
Green'up Premium single-phase plastic charging socket 1VE - 22Kw - M3 - 1P

Categories:

  • Industrial socket/plug applications > Charging device E-Mobility
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.732,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)20.40
  • Weight (g)4 160.00
Product characteristics
Plastic three-phase charging station - Mode 3
  • IP 44 - IK 08
  • Wall mounting charging stations to be equipped with pedestal Cat.No 0 590 52 for fixing to the ground
22 kW- 32 A
  • Power adjustment option:
    • 11/15/18/22 kW
    • 16/20/25/32 A
  • For charging 1 vehicle
General characteristics
Green’up™ Premium charging stations with integrated DC protection - for electric vehicle charging
  • For charging all electric vehicles (equipped with single-phase and three-phase chargers) and plug-in hybrids in Mode 2 or Mode 3 in complete safety. Compliant with standards IEC 61851-1 and 61851-22.
  • Charging station power can be adjusted with adapted protection devices and power supply circuits. Local wireless communication via embedded Bluetooth for configuration and control of charging station via smartphone or tablet using the IOS or Android compatible app.
  • Available functions: changing station status, daily charging program, charging station activation/deactivation, power management, firmware updates
  • Application additional functions: weekly changing program, consumption monitoring
  • Remote wireless IP communication with communication kit Cat.No 0 590 56
  • Equipped with:
    • a 2P+E socket with Green'up Access safety shutter featuring the innovative Green'up system, a Legrand Group technology which activates “maximum power” mode, ensuring fast, safe charging for 2P+E plugs (Mode 2, for vehicles with cable equipped with Legrand Green'up plug)
    • a 3P+N+E (T2S) Type 2 socket with blanking plates (single-phase or three-phase operation) with pilot wire (Mode 3)
  • Integrated protection : 6 mA =
  • Connected and protected from the electrical panel via 1 protected dedicated line (2 dedicated lines for 2-vehicle charging station)
  • Off-peak control option via contactor, clock and switch (volt-free contact input 12 V=)
  • Remote ON/OFF control option (volt-free contact input 12 V=)

ETIM for 058002 Industrial plugs and sockets (EC002883)

Feature nameHeight (EF000040)
Feature value365 mm
Feature nameMounting method (EF000003)
Feature valueWall mounting
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameNumber of earth leakage circuit breakers type B (EF009092)
Feature value0
Feature nameLength of charging cable (EF014895)
Feature value0 m
Feature nameNumber of earth leakage circuit breakers type A (EF009091)
Feature value0
Feature nameNumber of vehicle connectors GB DC (EF009307)
Feature value0
Feature nameInstallation side connection model (EF025053)
Feature value3-phase
Feature nameNumber of vehicle connectors GB AC (EF009306)
Feature value0
Feature nameNumber of socket outlets Type 3 (EF009309)
Feature value0
Feature nameNumber of socket outlets GB (EF009308)
Feature value0
Feature nameNumber of vehicle connectors Type 2 (EF009303)
Feature value0
Feature nameNumber of vehicle connectors Type 1 CCS (EF009302)
Feature value0
Feature nameNumber of socket outlets Type 2 (EF009305)
Feature value1
Feature nameNumber of vehicle connectors Type 2 CCS (EF009304)
Feature value0
Feature nameNumber of vehicle connectors Type 1 (EF009301)
Feature value0
Feature nameMax. power per charging point (EF009300)
Feature value22 kW
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature nameDepth (EF000049)
Feature value140 mm
Feature nameWidth (EF000008)
Feature value295 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP44
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith miniature circuit breaker (MCB) (EF009314)
Feature valueYes
Feature nameWith energy meter (EF009313)
Feature valueNo
Feature nameNumber of vehicle connectors CHAdeMO (EF009310)
Feature value0
Feature nameNumber of charging units (EF009078)
Feature value1
Feature nameNumber of household socket outlets (EF009311)
Feature value0
Feature nameWith display (EF000458)
Feature valueNo
Feature nameNumber of CEE socket outlets (IEC 60309) (EF006577)
Feature value0
Feature nameNominal connection power (EF002136)
Feature value22 kW
Feature nameWith house connection box (EF009089)
Feature valueNo
Feature nameIFTTT support available (EF011072)
Feature valueNo
