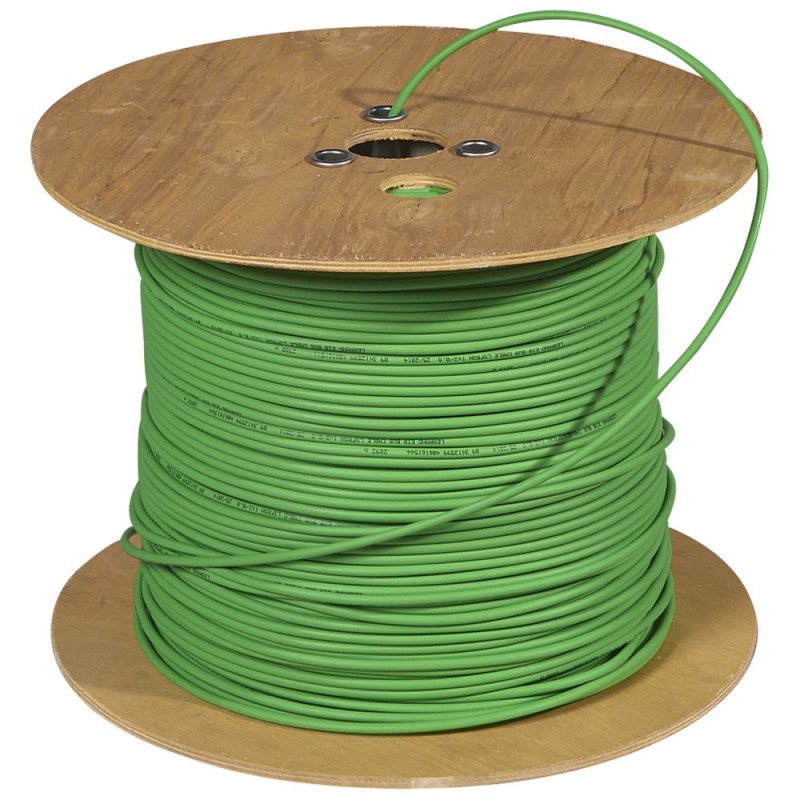

LEGRAND 049291 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

049291 LEGRAND KNX CABLE 500M 1 PAIR

Code: 049291

Manufacturer: LEGRAND

Description:

KNX CABLE 500M 1 PAIR
KNX cable 1 pair - 500 m

Categories:

  • Cables > Power cable >= 1 kV, for permanent installation
  • LEGRAND > AUTOMATION, CONTROL AND KNX CONTROL

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 772,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

KNX cable 1 pair of stranded conductors (red-black). It can be installed next to the 230V power cable. Recessed or ducted installation, as long as protection from sunlight is guaranteed. Length of 500m. Diameter: 0.8mm - 4000 V insulation.
Conductor Materialcopper
Conductor surfaceUncovered
Nominal Conductor Section0.8 mm²
Conductor Diameter0.5 mm
Driver ClassClass 2 = multi-strand rigid
Number of wires per conductor1
Conductor resistance at 20°C10000 Ohm/km
Conductor designRound
Number of threads2
Conductor insulation materialOther
Type of driver identificationColour
Filling materialYes
Fiber Optic ElementsNo
With protective conductorNo
ScreenYes
Drainage threadYes
Lead coverNo
Number of Auxiliary Conductors0
Concentric conductorcopper
Concentric nominal conductor cross-section0.5 mm²
Cover materialOther
Deck Material SpecificationOther
Outer Cover ColorGreen
Cable geometryRound
Low smoke emission according to EN IEC 61034-2Yes
Halogen-free according to IEC 60754-1Yes
Halogen-free according to EN IEC 60754-2Yes
Approximate cable width5.5 mm
Approximate cable height5.5 mm
Outer diameter approx.5.5 mm
Allowable Outside Cable Temperature During Wiring/Handling-25-70 °C
Permissible ambient temperature of the cable after assembly without vibration-25-70 °C
Assigned voltage U02.5 kV
Assigned voltage U4 kV
Suitable for underground installationNo
Suitable as an installation cableYes

ETIM for 049291 Cable (EC003251)

Feature nameHalogen free according to EN IEC 60754-2 (EF003792)
Feature valueYes
Feature nameCable height approx. (EF003797)
Feature value5.5 mm
Feature nameNumber of pilot/reduced conductors (EF001697)
Feature value0
Feature nameConcentric conductor (EF003795)
Feature valueCopper
Feature nameCable width approx. (EF003796)
Feature value5.5 mm
Feature nameConductor surface (EF010804)
Feature valueBare
Feature nameNominal cross section concentric conductor (EF001800)
Feature value0.5 mm²
Feature nameShape of conductor (EF001620)
Feature valueRound
Feature nameSpecification material outer sheath (EF011806)
Feature valueOther
Feature nameColour outer sheath (EF001618)
Feature valueGreen
Feature nameNumber of strands per conductor (EF017357)
Feature value1
Feature nameConductor resistance at 20 °C (EF013551)
Feature value10000 Ohm/km
Feature nameLow smoke according to EN IEC 61034-2 (EF003799)
Feature valueYes
Feature nameNominal voltage U (EF001615)
Feature value4 kV
Feature nameNominal voltage U0 (EF001790)
Feature value2.5 kV
Feature nameNumber of cores (EF001792)
Feature value2
Feature nameScreen (EF001791)
Feature valueYes
Feature nameCore identification (EF000067)
Feature valueColour
Feature nameMaterial core insulation (EF000061)
Feature valueOther
Feature nameNominal cross section conductor (EF000060)
Feature value0.8 mm²
Feature nameHalogen free according to EN IEC 60754-1 (EF016498)
Feature valueYes
Feature nameConductor material (EF001622)
Feature valueCopper
Feature nameDiameter conductor (EF001621)
Feature value0.5 mm
Feature nameLead sheath (EF001027)
Feature valueNo
Feature nameSuitable for underground installation (EF003689)
Feature valueNo
Feature nameDrain wire (EF001029)
Feature valueYes
Feature nameOuter diameter approx. (EF003921)
Feature value5.5 mm
Feature nameMaterial outer sheath (EF001625)
Feature valueOther
Feature namePermitted cable outer temperature after assembling without vibration (EF001686)
Feature value-25 °C
Feature namePermitted cable outer temperature during assembling/handling (EF001685)
Feature value-25 °C
Feature nameWith protective conductor (EF007468)
Feature valueNo
Feature nameSuitable as installation cable (EF013771)
Feature valueYes
Feature nameCable geometry (EF013532)
Feature valueRound
Feature nameConductor category (EF001632)
Feature valueClass 2 = stranded
Feature nameLaminated sheath (EF001637)
Feature valueYes
Feature nameFibre optic elements (EF001638)
Feature valueNo
