LEGRAND048591 LEGRAND ACTIVITY MULTISENSOR

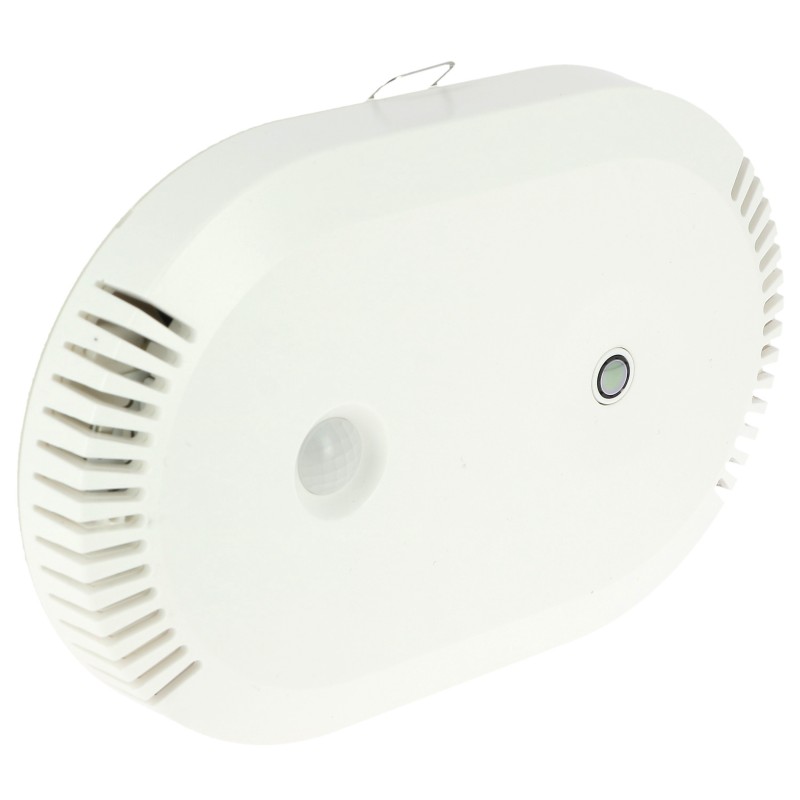

LEGRAND 048591 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

048591 LEGRAND ACTIVITY MULTISENSOR

Code: 048591

Manufacturer: LEGRAND

Description:

ACTIVITY MULTISENSOR
Ceiling Light Up Multi-Sensor Activity
Multisensor Light Up activity

Categories:

  • Installation bus systems > Movement sensor for bus system
  • LEGRAND

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.670,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Measurement of the number of people in a 64 m² space and environmental data: natural light, temperature, humidity, VOCs, IAQs, sound... PoE for power and communicationNo lighting control includedCommunication by MQTTSale to 6 counting zonesSetup with Close Up app
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsOther
Bidirectional Radio FrequencyYes
ModelPresence detector
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingYes
MaterialPlastic
Material qualityThermoplastic
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentNo
With bus connectionNo
Input ExtensionsNo
Creep Protection/Field MonitoringNo
Operation Mode SwitchNo
Animal ZoneNo
Stair Lighting ControllerYes
Adjustable response brightnessNo
Learn function for responsive brightnessNo
DALI-2 CertifiedNo
Optimal mounting height2.5 m
Side reach8 m
Front Reach8 m
Vertical Detection Angle (Min-Max)0-160 °
Horizontal Sensing Angle (Min-Max)0-360 °
Number of channels0
Width103 mm
Height47.1 mm
Depth157 mm
Installation Depth23.1 mm
Mounting Diameter68 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature (Min-Max)5-30 °C
Storage Temperature (Min-Max)-20-70 °C
Type of voltageCC
Neutral MandatoryNo
Halogen-freeYes
Connection MethodNot applicable
AddressableYes
Contains battery and/or accumulatorNo
IEC DesignationNot applicable
Battery or accumulator (Pack1)Not applicable
Connected ObjectYes
Method of operationNet
App download platformApp Store, Google Play Store
With voice commandNo
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Programming mediumWeb software
App NameLegrand Close-Up
Product usage functionSensor system

ETIM for 048591 Installation bus systems (EC001582)

Feature nameHeight (EF000040)
Feature value47.1 mm
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueYes
Feature nameStaircase light controller (EF001098)
Feature valueYes
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameDetection angle horizontal (EF006582)
Feature value0 °
Feature nameDetection angle vertical (EF006581)
Feature value0 °
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameOperation mode switch (EF004530)
Feature valueNo
Feature nameModel (EF000010)
Feature valuePresence detector
Feature nameAnimal zone (EF006311)
Feature valueNo
Feature nameOptimum mounting height (EF008011)
Feature value2.5 m
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameDepth (EF000049)
Feature value157 mm
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value103 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameResponse value luminosity adjustable (EF007575)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameNumber of channels (EF000259)
Feature value0
Feature nameBuilt-in depth (EF000218)
Feature value23.1 mm
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameMax. reach sideways (EF001323)
Feature value8 m
Feature nameMax. reach frontally (EF001322)
Feature value8 m
Feature nameDALI-2 certified (EF016048)
Feature valueNo
Feature nameCreep-under protection (EF000147)
Feature valueNo
Feature nameTeach-function for response value luminosity (EF003898)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameBuilt-in diameter (EF000943)
Feature value68 mm
