Images are for illustrative purposes only. Please refer to data sheet for details.

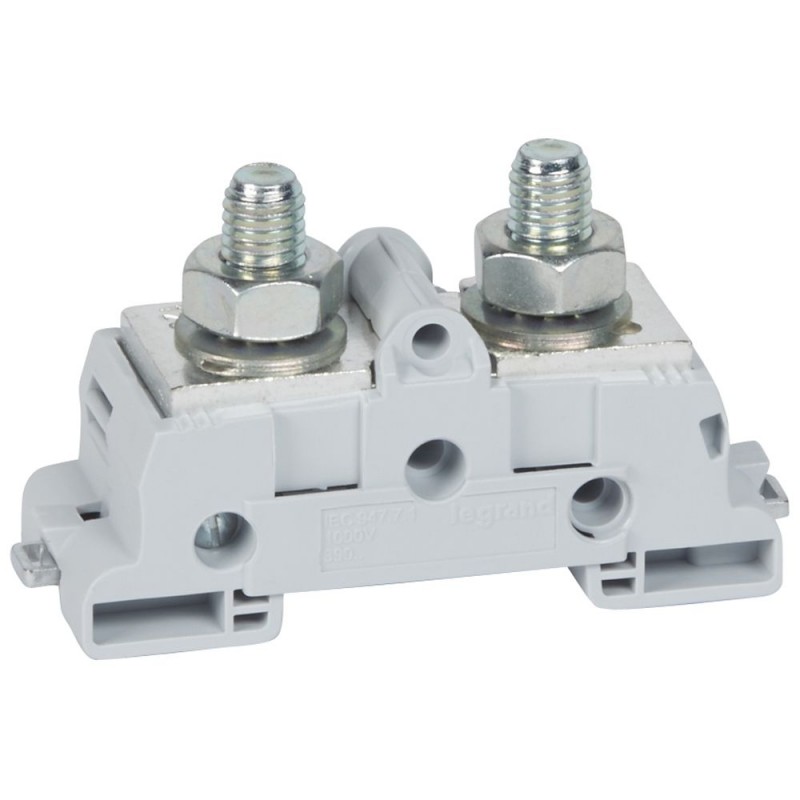

039073 LEGRAND 120MM2 POWER BLOCK
Code: 039073
Manufacturer: LEGRAND
Description:
120MM2 POWER BLOCK
BLOCK POWER 120MM2
Viking 3 Heavy Duty Terminal Block Symmetrical DIN Rail Mounting 120mm² Copper Bar/Cable Lug 34mm
Viking 3 power terminal - symmetrical rails - M10 - pitch 34 - L. 25mm
Categories:
- Terminal blocks > (Knife) disconnect terminal block
- LEGRAND > VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
- More Info
- ETIM
- Reviews
MORE INFO
Heavy duty terminal blocks For copper bars or cable lugs Conform to IEC EN 60947-7-1 Fire resistance: 960°C, IEC EN 60695-2-11 V2 according to UL94 Insulaing material: polyamide -30°C to +100°C Bridging the gap between the enclosure and external cables Plastic foot For use with terminal marker sheets For symmetrical rails Fixed using metal clip on rails 15mm depth and EN 60715, 15mm depth
| Connectable conductor cross section fine-strand without cable end sleeve | 120-120 mm² |
|---|---|
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 34 mm |
| Height | 61 mm |
| Depth | 84 mm |
| Closing plate required | No |
| Colour | Grey |
| Inflammability class of insulation material according to UL 94 | V2 |
ETIM for 039073 Terminal blocks (EC000902)
Feature name
Feature value
Feature nameNumber of clamp positions per level (EF002660)
Feature value1
Feature nameInternally connected stages (EF002661)
Feature valueNo
Feature nameHeight (EF000040)
Feature value61 mm
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value120 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameDepth (EF000049)
Feature value84 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueBolt connection
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRated voltage (EF000228)
Feature value1000 V
Feature nameWidth (EF000008)
Feature value34 mm
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameType of electrical connection 2 (EF002527)
Feature valueBolt connection
DATASHEET - PDF
Title
Size
Type
131 Kbytes
