LEGRANDVIKING TERMINALS037256 LEGRAND B.VIKING3 RES LED 2U P5 2P4MM2

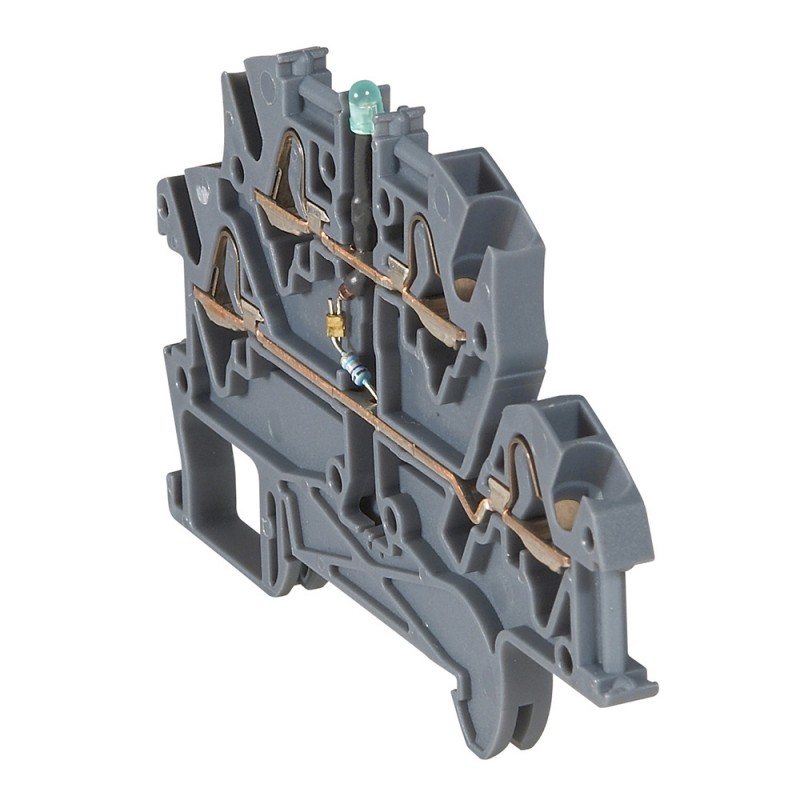

LEGRAND 037256 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

037256 LEGRAND B.VIKING3 RES LED 2U P5 2P4MM2

Code: 037256

Manufacturer: LEGRAND

Description:

B.VIKING3 RES LED 2U P5 2P4MM2
B. VIKING3 RES LED 2U P5 2P4MM2
Viking 3 Function Terminal Block 4mm² Spring Connection 4 Cable 2 Level with LED 5mm Grey
Viking 3 terminal block with spring - 4² - step 5

Categories:

  • Terminal blocks > Feed-through terminal block
  • LEGRAND > VIKING TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 563,72 €

Unit Price: 9,3954 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Screwless connection system, stainless steel spring type Compatible with either 2 rigid copper cables or flexible cables (0.5mm² - 16mm²) with or without ferrules Direct tool-free insertion of a rigid cable. Direct tool-free insertion of a flexible cable with ferrule, up to 6mm width Facility for 2 bridging combs Compatible with rails EN 60715 depth 7.5mm and 15mm Function blocks
Connectable conductor cross section fine-strand without cable end sleeve0.5-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5-2.5 mm²
Connectable conductor cross section solid-core0.5-6 mm²
Connectable conductor cross section multi-wired0.5-4 mm²
Rated voltage24 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width5 mm
Height56 mm
Depth90 mm
Explosion-tested version 'Ex e'No
Closing plate requiredYes
ColourGrey
Internally connected stagesYes
Inflammability class of insulation material according to UL 94V2

ETIM for 037256 Terminal blocks (EC000897)

Feature nameNumber of clamp positions per level (EF002660)
Feature value2
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.5 mm²
Feature nameInternally connected stages (EF002661)
Feature valueYes
Feature nameHeight (EF000040)
Feature value56 mm
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value0.5 mm²
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV2
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value0.5 mm²
Feature nameExplosion-tested version 'Ex e' (EF008498)
Feature valueNo
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.5 mm²
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameClosing plate required (EF002525)
Feature valueYes
Feature nameDepth (EF000049)
Feature value90 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueSpring clamp connection
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRated voltage (EF000228)
Feature value24 V
Feature nameWidth (EF000008)
Feature value5 mm
Feature nameNumber of levels (EF002659)
Feature value2
Feature nameType of electrical connection 2 (EF002527)
Feature valueSpring clamp connection

DATASHEET - PDF

Title
Size
Type
037256 EN_037256.pdf
137 Kbytes
