LEGRANDATLANTIC-MARINA CABINETS036286 LEGRAND MARINE CABINET 1600X800X400
LEGRAND 036286 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

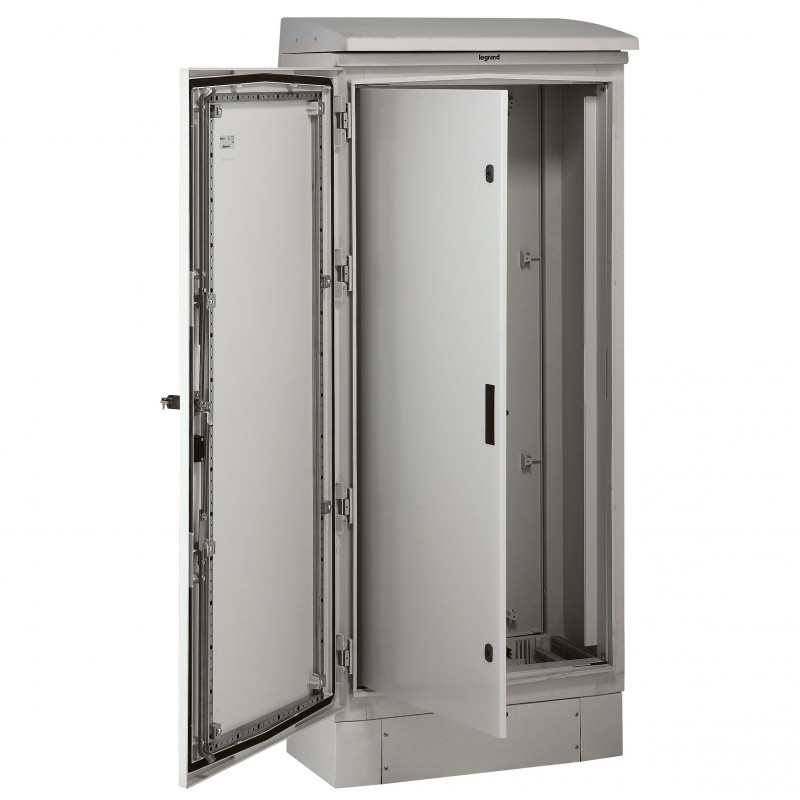

036286 LEGRAND MARINE CABINET 1600X800X400

Code: 036286

Manufacturer: LEGRAND

Description:

MARINE CABINET 1600X800X400
CLOSET NAVY 1600X800X400
Marina IP66 GRP Free Standing Enclosure 1660mm x 800mm x 463mm
Marine polyester cabinet- IK10 - RAL 7035 - 1660x800x463mm

Categories:

  • Distribution boards > Empty cabinet
  • LEGRAND > ATLANTIC-MARINA CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.167,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Grey RAL 7035 IP 66 according to IEC EN 60529 IK 10 according to IEC EN 62262 (EN 50102) Class II insulation for final assembly according to IEC EN 60439-1 Glass fibre reinforced polyester (GRP) enclosures Self extinguishing at 960°C according to IEC EN 60695-2-11 Designed for corrosive environments Stainless steel hinges and hinge pins Reversible door equipped with equipment mounting bosses Supplied with two part gland plate and fixing kit for plain plate or sectioned uprights Three point locking handle with European lock and 2433 A key Depth adjustment of equipment
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorNo
With lockYes
Height1660 mm
Width800 mm
Depth463 mm
Built-in depth487 mm
Inner depth380 mm
Material plate thickness cabinet4 mm
Material plate thickness door/cover4 mm
ColourGrey
RAL-number7035
Number of openings for flange plates2
Extension possibleNo
Housing materialPlastic
Surface protectionUntreated
With mounting plateNo
Suitable for outdoor useYes
Suitable for lightning protectionYes
Degree of protection (IP)IP66
Protection class according to IEC 61140II
degree of impact strength (IK)IK10
Circuit integrityNone

ETIM for 036286 Distribution boards (EC000058)

Feature nameHeight (EF000040)
Feature value1660 mm
Feature nameType of door (EF004464)
Feature valueSingle
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameInner depth (EF001131)
Feature value380 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameSuitable for outdoor use (EF003532)
Feature valueYes
Feature nameNumber of openings for flange plates (EF009554)
Feature value2
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameMaterial plate thickness cabinet (EF009170)
Feature value4 mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature value4 mm
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBuilt-in depth (EF000218)
Feature value487 mm
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for lightning protection (EF007800)
Feature valueYes
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDepth (EF000049)
Feature value463 mm
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value800 mm

DATASHEET - PDF

Title
Size
Type
036286 EN_036286.pdf
911 Kbytes
