LEGRANDATLANTIC-MARINA CABINETS036261 LEGRAND MARINE CABINET 800X600X300

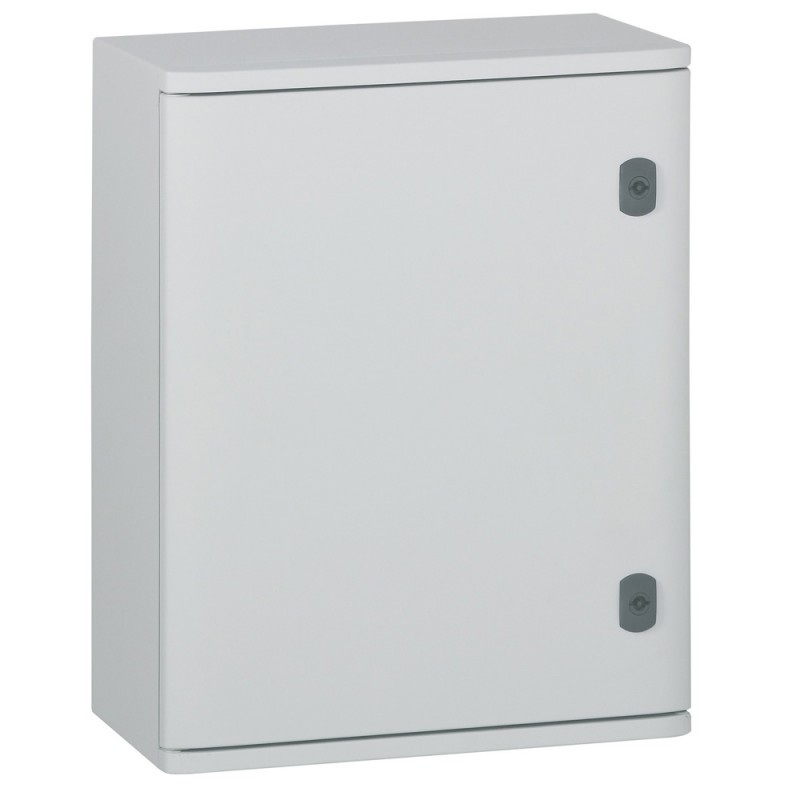

LEGRAND 036261 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

036261 LEGRAND MARINE CABINET 800X600X300

Code: 036261

Manufacturer: LEGRAND

Description:

MARINE CABINET 800X600X300
CLOSET NAVY 800X600X300
Marina IP66 GRP Wall Mounting Enclosure 820mm x 610mm x 300mm
Polyester Box Navy - IP66- IK10 - RAL 7035 - 820x610x300mm

Categories:

  • Distribution boards > Empty cabinet
  • LEGRAND > ATLANTIC-MARINA CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 713,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Grey RAL 7035 IP 66 according to IEC EN 60529 IK 10 according to IEC EN 62262 (EN 50102) Class II insulation for final assembly according to IEC EN 60439-1 Glass fibre reinforced polyester (GRP) enclosures Self extinguishing at 960°C according to IEC EN 60695-2-11 Designed for corrosive environments Reversible door, 180o opening 2 x double bar locks Captive stainless steel hinge pins Mounting plate/equipment can be fixed directly to the rear of the enclosure Accepts partial plate from 500 x 400 x 200mm and/or rails Optional depth adjustment kit (Cat. No. 0362 42) available for enclosures 400mm high and above For wall mounting, wall mounting brackets must be ordered separately
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorNo
With lockYes
Height800 mm
Width600 mm
Depth300 mm
Built-in depth305 mm
Inner depth261 mm
Material plate thickness cabinet3.5 mm
Material plate thickness door/cover4 mm
ColourGrey
RAL-number7035
Number of openings for flange plates0
Extension possibleNo
Housing materialPlastic
Surface protectionUntreated
With mounting plateNo
Suitable for outdoor useYes
Suitable for lightning protectionYes
Degree of protection (IP)IP66
Protection class according to IEC 61140II
degree of impact strength (IK)IK10
Circuit integrityNone

ETIM for 036261 Distribution boards (EC000058)

Feature nameHeight (EF000040)
Feature value800 mm
Feature nameType of door (EF004464)
Feature valueSingle
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameInner depth (EF001131)
Feature value261 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameSuitable for outdoor use (EF003532)
Feature valueYes
Feature nameNumber of openings for flange plates (EF009554)
Feature value0
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameMaterial plate thickness cabinet (EF009170)
Feature value3.5 mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature value4 mm
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBuilt-in depth (EF000218)
Feature value305 mm
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameSuitable for lightning protection (EF007800)
Feature valueYes
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDepth (EF000049)
Feature value300 mm
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value600 mm
