LEGRANDOPEN FRAME AUTOMATION DMX3028488 LEGRAND DMX³6300 MPX10 100KA S 4P6300A

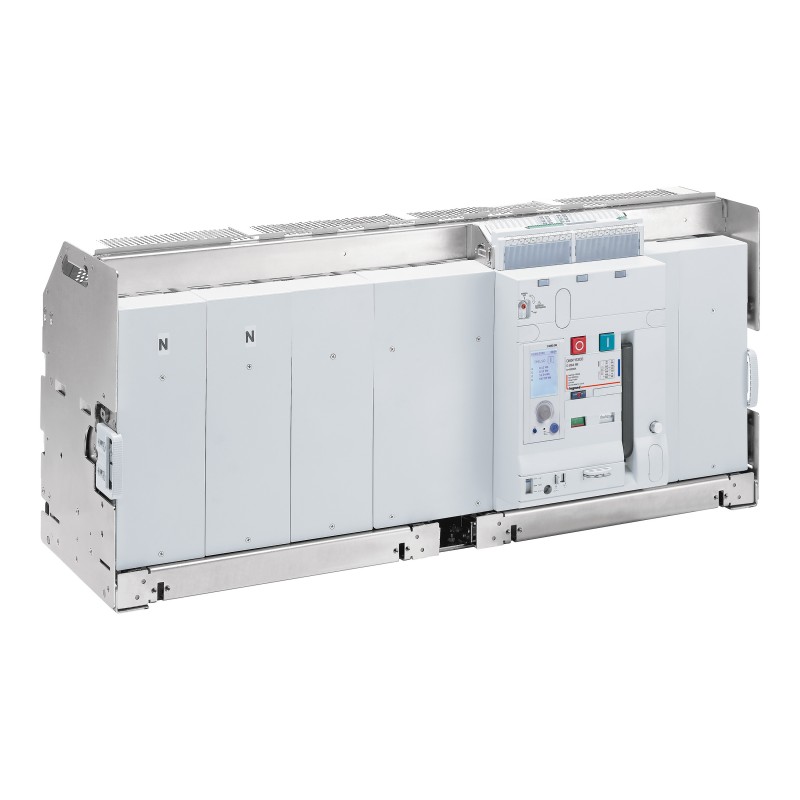

LEGRAND 028488 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

028488 LEGRAND DMX³6300 MPX10 100KA S 4P6300A

Code: 028488

Manufacturer: LEGRAND

Description:

DMX³6300 MPX10 100KA S 4P6300A
DMX³ 6000 4 Pole 6300A Draw-Out ACB 100kA
Open rack switch DMX³ 6300 - secc - lcu 100kA - 4P - ln 6300A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 53.327,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Rated permanent current Iu6300 A
Rated voltage0-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz100 kA
Overload release current setting1260-6300 A
Adjustment range short-term delayed short-circuit release1890-63000 A
Adjustment range undelayed short-circuit release12600-94500 A
Device constructionBuilt-in device slide-in technique (withdrawable)
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact2
With integrated under voltage releaseNo
Number of poles4
Position of connection for main current circuitConnection at separate chassis part
Type of control elementPush button
Complete device with protection unitNo
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP20

ETIM for 028488 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value2
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value12600 A
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device slide-in technique (withdrawable)
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameOverload release current setting (EF002336)
Feature value1260 A
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value1890 A
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameRated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048)
Feature value100 kA
Feature nameRated permanent current Iu (EF001389)
Feature value6300 A
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueConnection at separate chassis part
Feature nameRated voltage (EF003977)
Feature value0 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueNo
