LEGRANDOPEN FRAME AUTOMATION DMX3028136 LEGRAND DMX3 T0 COIL SHOT MT 24V

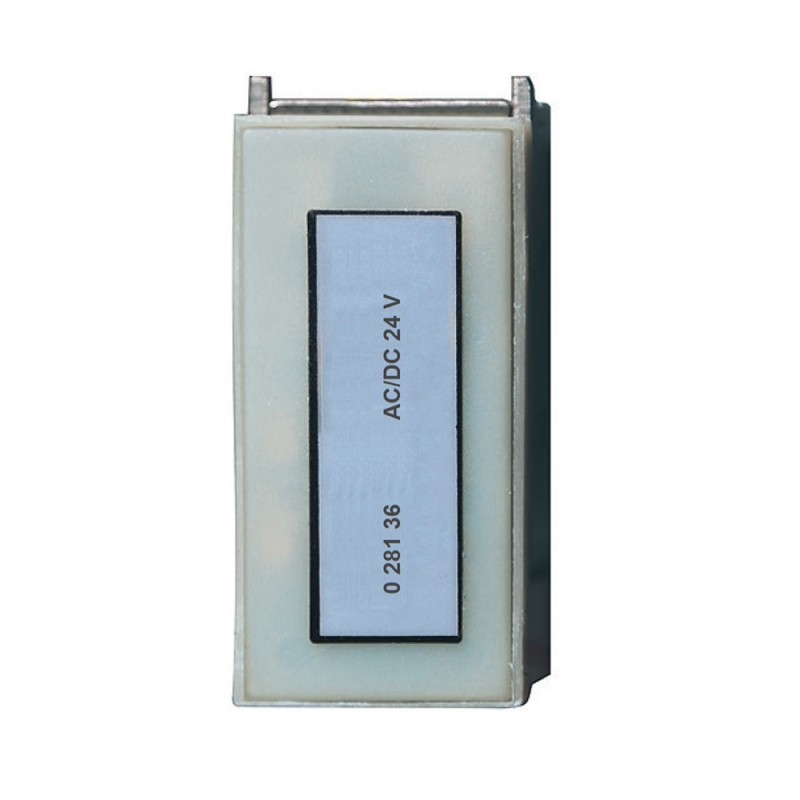

LEGRAND 028136 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

028136 LEGRAND DMX3 T0 COIL SHOT MT 24V

Code: 028136

Manufacturer: LEGRAND

Description:

DMX3 T0 COIL SHOT MT 24V
DMX3 T0 COIL SHOOTING MT 24V
Undervoltage releases DMX³ 1600 - 24 V~/=
DMX³ 1600 - 24V~/= minimum voltage trigger coil

Categories:

  • Low-voltage industrial components > Under voltage coil
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 170,39 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.235
  • Weight (g)194.00
Product characteristics
Control and signalling auxiliaries
Undervoltage releases
  • When the coil is de-energised, the circuit breaker will be tripped
  • 24 V~/=
General characteristics
Auxiliaries, accessories and fixing devices for DMX³ 1600

ETIM for 028136 Low-voltage industrial controls and switchgear (EC001022)

Feature nameRated control supply voltage DC (EF003980)
Feature value20.4 V
Feature nameDelayed (EF001541)
Feature valueNo
Feature nameSuitable for off-load switch (EF001543)
Feature valueYes
Feature nameSuitable for power circuit breaker (EF005863)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueFlat plug-in connection
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameSuitable for motor safety switch (EF005826)
Feature valueYes
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value20.4 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value20.4 V

DATASHEET - PDF

Title
Size
Type
028136 EN_028136.pdf
128 Kbytes
