LEGRANDEVOLUTIONARY DLP INSTALLATION CABLE TRUNKING010993 LEGRAND 02B-MARCO MOSAIC 3MD TP85
LEGRAND 010993 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

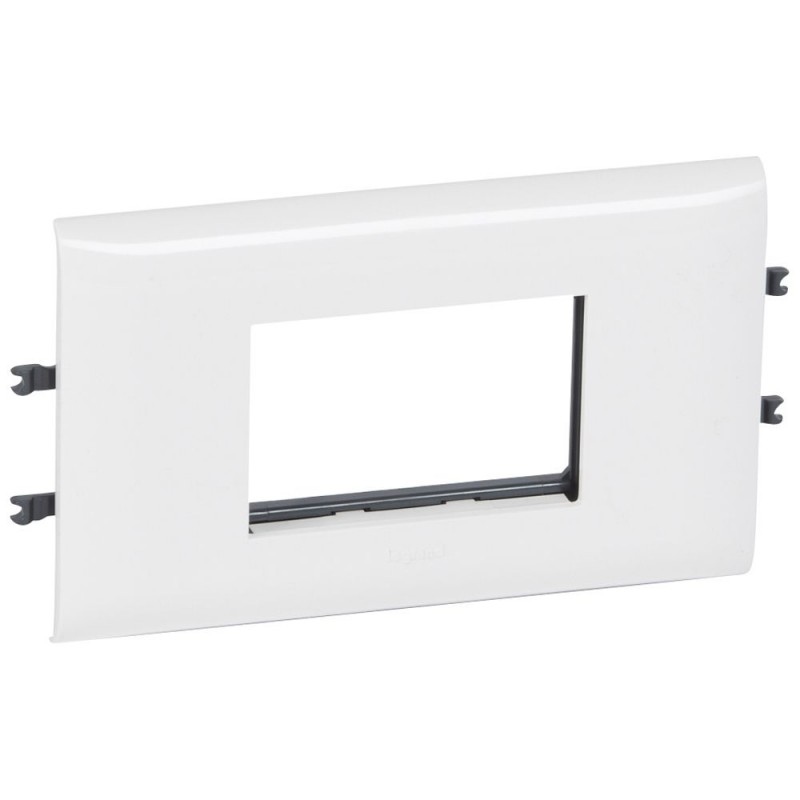

010993 LEGRAND 02B-MARCO MOSAIC 3MD TP85

Code: 010993

Manufacturer: LEGRAND

Description:

02B-MARCO MOSAIC 3MD TP85
Universal support for DLP channel. Cover 85mm horizontal only. 3 items

Categories:

  • Domestic switching devices > Cover frame for domestic switching devices
  • LEGRAND > EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 7,81 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

85mm transparent 3-module DLP support. DLP channel mounts for universal mechanisms with a 60 mm mid-axis, including brackets and plates. Designed for 85 mm covers in landscape orientation and with capacity for 3 modules. Monobloc DLP channels and complementary accessories.
Number of sockets1
Number of Units1
Assembly DirectionHorizontal
Number of horizontal units1
Number of vertical units1
Number of modules horizontally (in case of modular design)3
Flush mountingNo
Suitable for underfloor ductingNo
Suitable for device installation conduitYes
Suitable for built-in installationNo
Label Space/Print AreaNo
MaterialPlastic
Material qualityOther
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishBright
ColourWhite
RAL number (similar)9003
TransparentNo
With flip-top lidNo
Protection Class (IP)IP40
Impact resistanceIK07
Attachment TypeOther
Width158.2 mm
Height90 mm
Depth28.2 mm
Operating Temperature-5-60 °C
Storage temperature-25-60 °C
Wood species in LatinNot applicable
Wood certification (list)Not applicable
Climate zone of the origin of the woodNot applicable

ETIM for 010993 Domestic wiring accessories and controls (EC000007)

Feature nameHeight (EF000040)
Feature value90 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSuitable for built-in installation (EF006745)
Feature valueNo
Feature nameSurface finishing (EF006569)
Feature valueGlossy
Feature nameType of fastening (EF002442)
Feature valueOther
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameNumber of modules horizontal (module system) (EF009571)
Feature value3
Feature nameMounting direction (EF003824)
Feature valueHorizontal
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameNumber of units vertical (EF008859)
Feature value1
Feature nameNumber of units (EF000074)
Feature value1
Feature nameRAL-number (similar) (EF003882)
Feature value9003
Feature nameNumber of units horizontal (EF008858)
Feature value1
Feature nameSuitable for subfloor installation duct box (EF005864)
Feature valueNo
Feature nameSuitable for wall duct (EF006572)
Feature valueYes
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameDepth (EF000049)
Feature value28.2 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameFlush-mounted installation (EF007517)
Feature valueNo
Feature nameWidth (EF000008)
Feature value158.2 mm
