LEGRANDSUPERVISION AND ENERGY MEASUREMENT004602 LEGRAND AMP 30A 4MOD

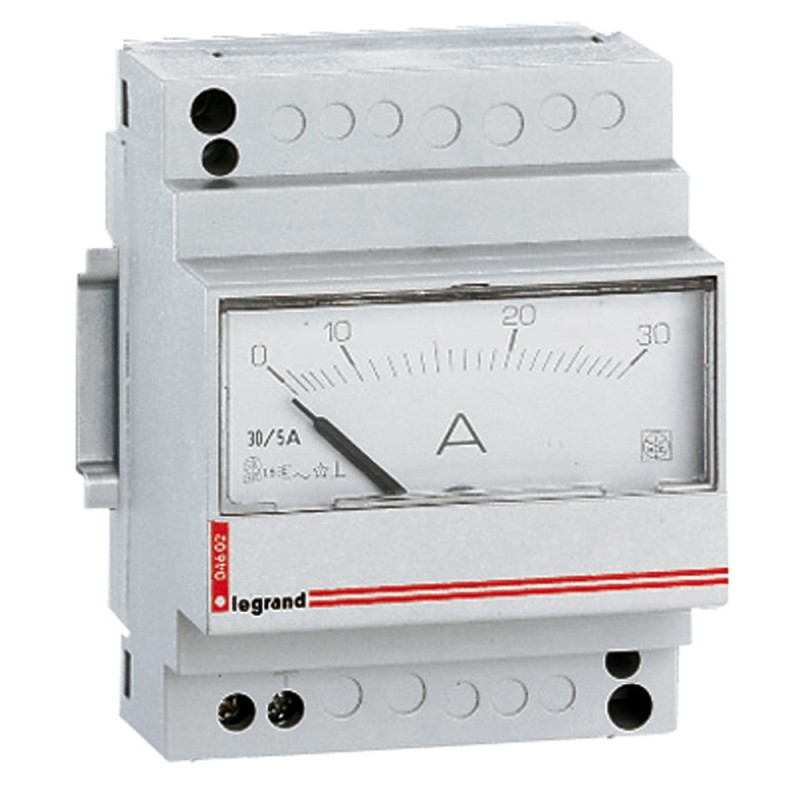

LEGRAND 004602 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004602 LEGRAND AMP 30A 4MOD

Code: 004602

Manufacturer: LEGRAND

Description:

AMP 30A 4MOD
AMPERIMETRO 30A 4MOD
Ammeter analogue Lexic - direct connection - fixing on rail
Analog ammeter - direct connection

Categories:

  • Devices for distribution board-/surface mounting > Ampere meter for installation
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 60,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.638
  • Weight (g)161.00
Product characteristics
Analogue metering devices
Ammeters
  • Measure the intensity in Amperes (A) of the current circulating in an electrical circuit
  • Direct connection
  • AC or DC
  • Scale: 0 - 30 A - supplied with dial
  • Number of modules : 4
General characteristics
Electrical energy metering on rail

ETIM for 004602 Modular devices for distribution board/surface mounting (EC002292)

Feature nameHeight (EF000040)
Feature value72 mm
Feature namePower loss (EF005387)
Feature value1.1 W
Feature nameScales lighting (EF006179)
Feature valueNo
Feature nameMeasurement system (EF006003)
Feature valueOther
Feature nameMax. needle deflection (EF005992)
Feature value45 °
Feature nameModel (EF000010)
Feature valueDIN rail
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameOvercurrent scale (EF006101)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameAccuracy class (EF001532)
Feature value0.015
Feature nameNominal end value of the scale (EF006072)
Feature value5 A
Feature nameStay-set indicator (EF006188)
Feature valueNo
Feature nameModular version (EF001126)
Feature valueYes
Feature nameTransformer connection (EF005405)
Feature valueYes
Feature nameWidth (EF000008)
Feature value72 mm
Feature nameMeasuring range (EF001836)
Feature value0 A

DATASHEET - PDF

Title
Size
Type
004602 EN_004602.pdf
130 Kbytes
