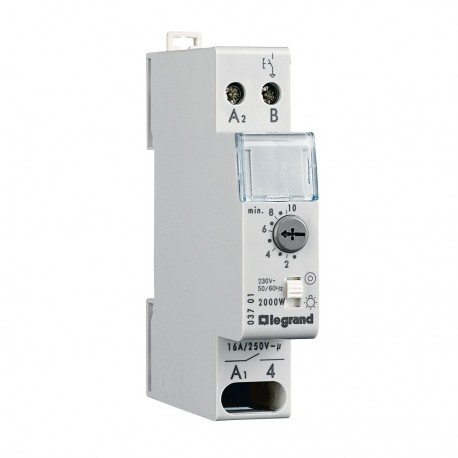

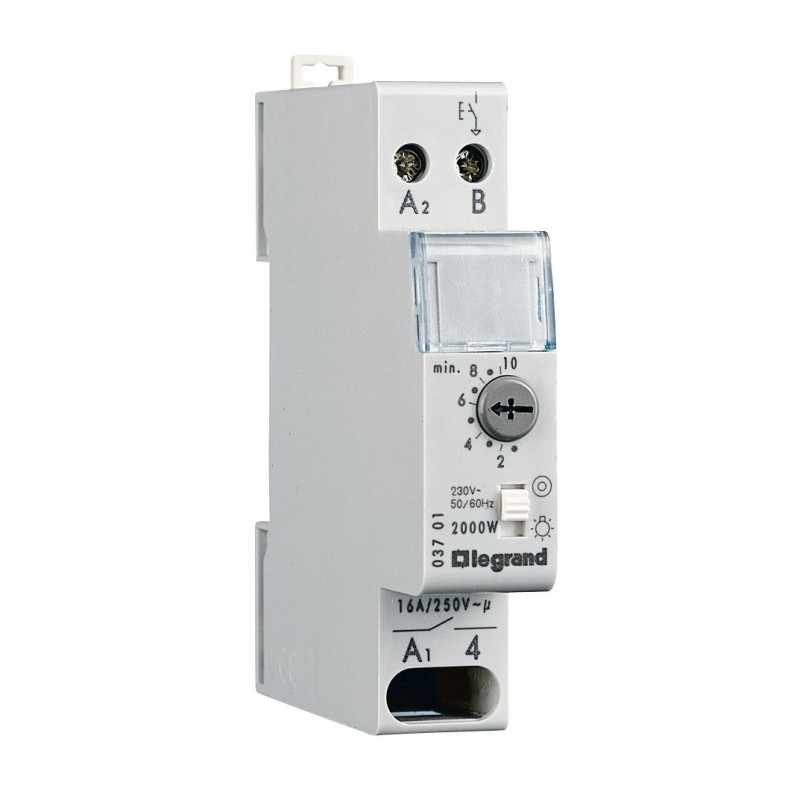

LEGRAND 003701 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

003701 LEGRAND MODULAR TIMER 16A

Code: 003701

Manufacturer: LEGRAND

Description:

MODULAR TIMER 16A
MINUTE MODULAR 16A
Minute - 16 A - 230 V~ - 50/60 Hz
Minute track - 16A - 230V~ - 50/60Hz

Categories:

  • Devices for distribution board-/surface mounting > Staircase lighting timer
  • LEGRAND > TIME SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 46,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Minute - 230 V~ - 50/60 Hz Timing adjustable from 30 sec to 10 min - Contact of marching manual - Output 16 A - 250 V~ - 3680 W incandescent 2000 W halogen - 230 V~ - 1000 VA fluorescent compensated in series - 1000 VA fluorescent offset in parallel max 70 µF - Connection with 3-or 4-wire - Supports an unlimited number of pushbuttons do not light or 50 illuminated buttons as a maximum with a neon indicator 1 mA maximum - permanent Lighting - Number of modules: 1

General characteristics

Minuterías electronic - Accepted as the step of the comb-power - Power supply: 230 V~ - 50/60 Hz - Ensure the commissioning of a lighting circuit during a determined period of time - Self-protection in case of push-button locked

ETIM for 003701 Modular devices for distribution board/surface mounting (EC000297)

Feature namePre-warning of switching-off (EF002961)
Feature valueNone
Feature nameMax. switching current (cos phi = 0.6) (EF004920)
Feature value13 A
Feature nameRepetitive (EF002962)
Feature valueRepetitive
Feature nameSupply voltage (EF004127)
Feature value250 V
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameWiring system (EF002960)
Feature value3 and 4 wire configuration
Feature nameType of control voltage 1 (EF002954)
Feature valueAC
Feature nameControl voltage 1 (EF002952)
Feature value230 V
Feature nameRelease-delay (EF001129)
Feature value0.5 min
Feature nameBuilt-in depth (EF000218)
Feature value70 mm
Feature nameFrequency control voltage 1 (EF002956)
Feature value50 Hz
Feature nameFunction (EF000030)
Feature valueElectronic
Feature nameMax. load fluorescent lamp (EF004971)
Feature value1000 VA
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameMax. incandescent lamp load (EF004952)
Feature value2000 W
Feature nameMax. load fluorescent lamp (parallel compensated) (EF004973)
Feature value120 VA
Feature nameMax. load fluorescent lamp (Duo circuit) (EF004972)
Feature value1000 VA
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameCurrent surge function selectable (EF008074)
Feature valueNo
Feature nameRated switch current (EF006706)
Feature value16 A
Feature namePush button glow-lamp current (EF006707)
Feature value50 mA
