LEGRANDDIN MODULAR BOXES001302 LEGRAND SUPERF 1 ROW 2MOD WHITE BOX

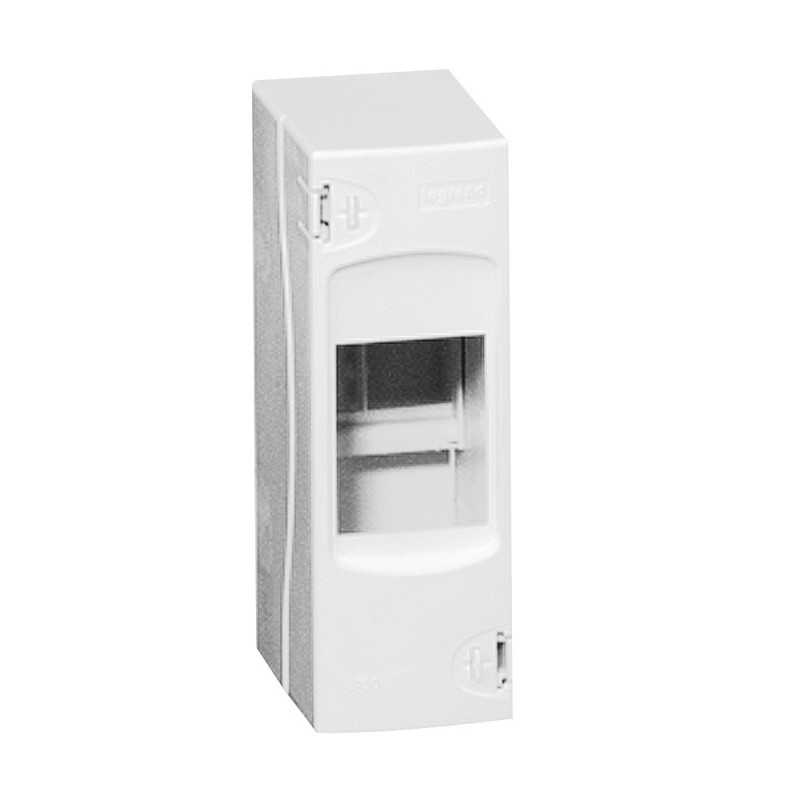

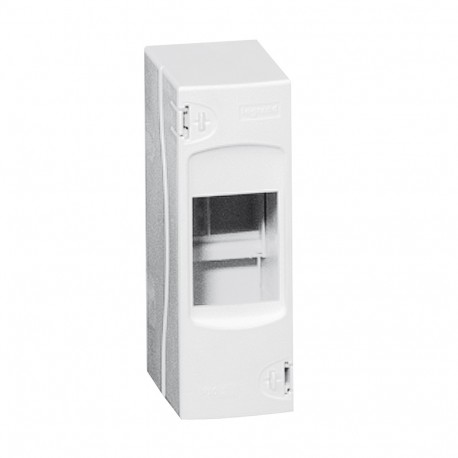

LEGRAND 001302 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

001302 LEGRAND SUPERF 1 ROW 2MOD WHITE BOX

Code: 001302

Manufacturer: LEGRAND

Description:

SUPERF 1 ROW 2MOD WHITE BOX
WHITE BOX SUPERF 1 ROW 2MOD
Box cubrebornas - 2 modules - white RAL 9010
Sealable terminal block box IP30 - A utoextinguishable 850 ºC - 2mod - White

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 82,13 €

Unit Price: 8,213 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Boxes cubrebornas - supplied with film retractable, adjustable cap pressure (not fitted) and resealable - Composed by: - 1 background with holes elongated positioning - 1-lane symmetrical which allows the cable Box 1 to 4 modules - Capacity: 2 modules - Height: 140 mm - Width: 50 mm - Thickness: 72 mm

General characteristics

Cubrebornas and box of 27 modules - self-extinguishing properties: resistance of 750 °C to the incandescent thread. - Class II - IP 30 - IK 05 - Meet the standard IEC 62 208: allows you to perform sets in accordance with IEC 61 439-3 - White RAL 9010

ETIM for 001302 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value140 mm
Feature nameInner depth (EF001131)
Feature value47.5 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameType of closure (EF004462)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value1
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameSignal passing door (EF015941)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameBuilt-in depth (EF000218)
Feature value68 mm
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBuilt-in height (EF000332)
Feature value136 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameNeutral terminal block (EF015777)
Feature valueNo
Feature nameEarthing terminal block (EF015776)
Feature valueNo
Feature nameDepth (EF000049)
Feature value72 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value50 mm
Feature nameBuilt-in width (EF000846)
Feature value46 mm

DATASHEET - PDF

Title
Size
Type
001302 EN_001301.pdf
255 Kbytes
