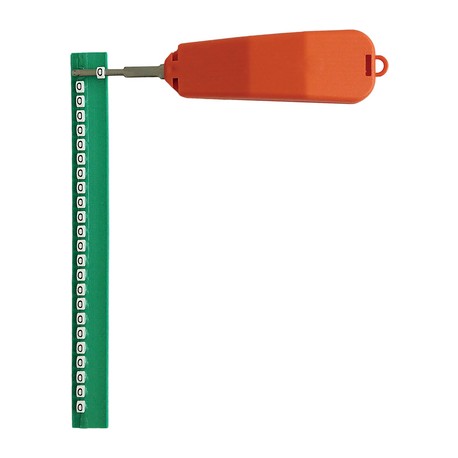

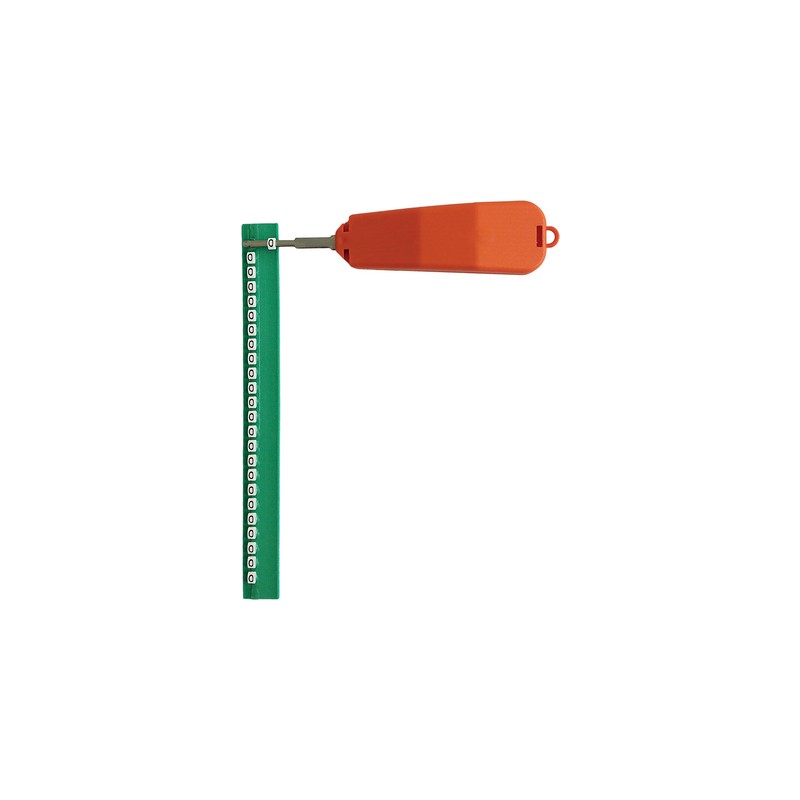

83290120 LAPP 3M Trasp strips "A" WH

Benefits

• One system for different applications
• Possibility to switch marking text without removing the marker
• Reduced installation time
• Quick, effective and user-friendly, with vast reductions in stock holding
• Durable PVC sleeves protect character elements from wear and degradation

Application range

• Indoor applications
• Quick and easy on-site assembly
• For single core and cable marking
• Marking before and after assembly

Product features

• Fire behaviour according to UL 94V-0

Note

• Pre-printed alphanumeric character elements are loaded into clear sleeves to mark wire, cable assemblies, terminal blocks and devices inside panels
• Marking elements can be added or removed as required with removal hook (article no. 83290201)

Included

• Micro Kit: 1x character strip with the text 1-9 und A B C E L N R S T V + -/ (1 character strip contains 24 markers)1x blank character strip in white and red50x transparent marking collars 3-4/15 mm20x transparent marking collars 8-10/15 mm50x transparent collars for cable tie 23 mm50x snap-on marking collars 2-3,5/15 mm50x snap-on marking collars 2,8-5/15 mm50x spark pins 1,5 mm2,9 mm, red20x spark pins 2,5 mm2,12 mm, blue20x spark pins 4 mm2, 12 mm, green50x self-adhesive component marking collar, 15 mm1x mounting tool (article no. 83290199)
• Each TraspTM contains 50 strips with 24 single markers (so in total there are 1.200 markers in one PU)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001288
• ETIM 5.0 Class-Description: Labelling material

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001288
• ETIM 6.0 Class-Description: Labelling material

Dimensions

• Micro Kit: 170 x 210 x 75 mm
• Width of the TRASPTM strips: 2,3 mm

On request

• Further collars available on request

Colour delivered

• Character strips: White
• On request: Yellow character strips

Temperature range

• -50°C to +80°C
