61794968 LAPP PANEL CONNECTORS L-RB 49 V

Reference: 61794968

Manufacturer: LAPP

Description:

PANEL CONNECTORS L-RB 49 V
Isolated Fastons

Categories:

  • LAPP > Connection engineering

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 30,46 €

Unit Price: 0,3046 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Insulated flat connectors (type M, T and V), UL approved, with easy-to-access funnel-shaped input

Advantages

  • Strongly brazed rope leader, therefore compressible in any position
  • In this way, better electrical conduction (minimum resistance)
  • No risk of bending and therefore no crimping of the cables

Application

  • Construction of electrical panels
  • Connection cables

Regulatory references/approvals

  • File number E334111, see Table

Construction features

  • For better tensile strength
  • For good endurance and better conduction
  • M&V type cord garment material in the printed contact part, folded twice and braised strongly braised
  • EASY-ENTRY funnel-shaped plastic rope caps for easy, quick and safe insertion of the conductor

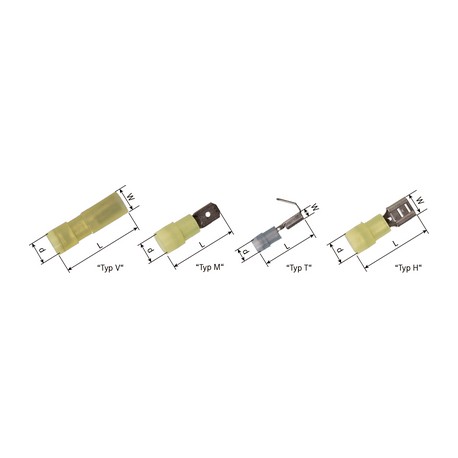

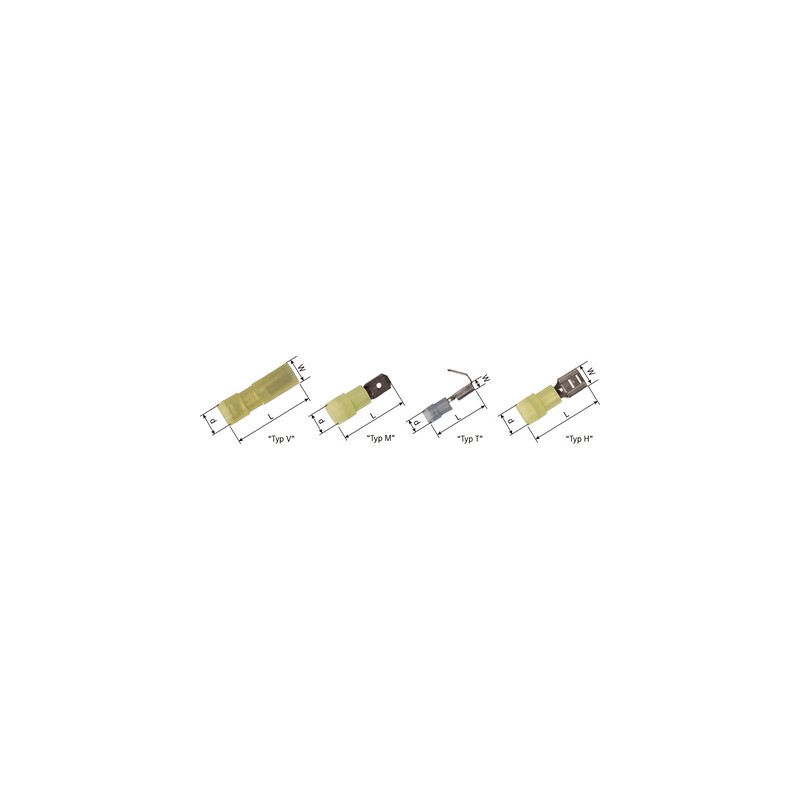

  • 1 = female faston rope ends type H
    2 = male and female speial faston rope ends type T
    3 = male faston rope ends type M
    4 = fully isolated faston rope end type V

ETIM 5 classification

  • ETIM 5.0 Class-ID: EC000516
  • Description class ETIM 5.0 : Plug with circular connection and flat connection

ETIM 6 classification

  • ETIM 6.0 Class-ID: EC000516
  • ETIM 6.0 Class-Description: Round/flat plug connector

Material

  • Tinned brass
  • Halogen-free polyamide

Temperature range

  • -20°C to +105°CA short term: up to +120°C
